Installation Procedure

  1. Install the oil pump (200) to the valve body (300).

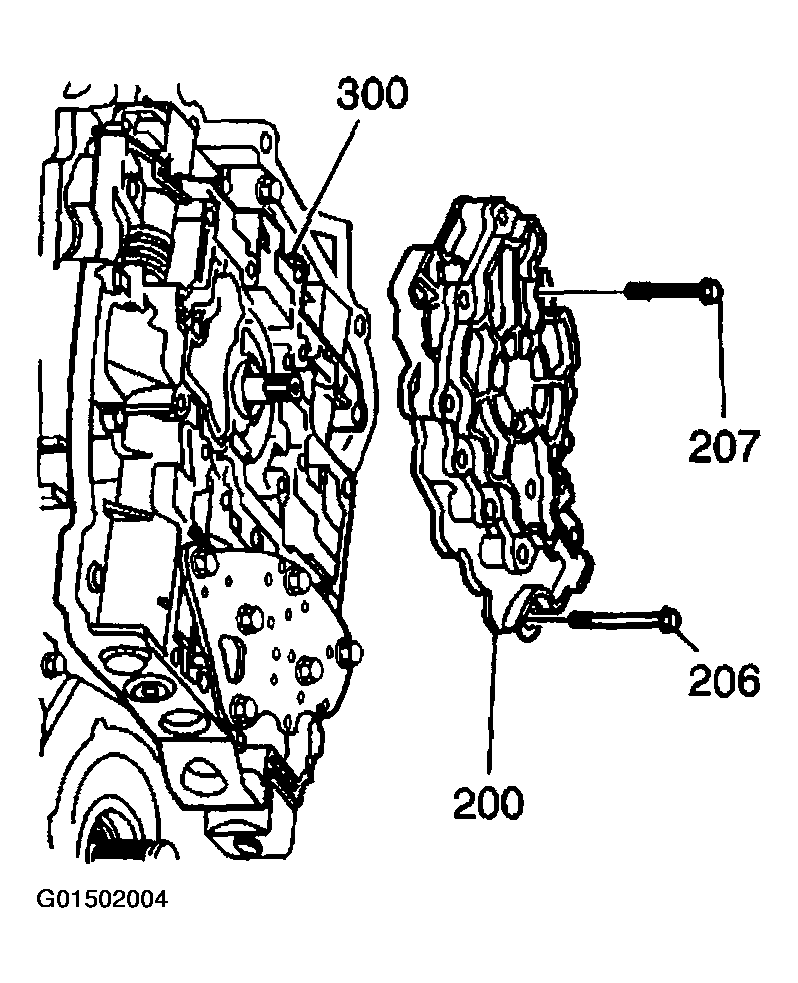

    Fig 1: Installing Oil Pump (1 Of 2)
    G01502004Courtesy of GENERAL MOTORS CORP.
  2. Install the oil pump bolts (205-207).

    Tighten

    • Tighten the M6 x 1.0 x 20 bolt to 8 N.m (70 lb in).
    • Tighten the M6 x 1.0 x 85 bolt to 12 N.m (106 lb in).
    • Tighten the M6 x 1.0 x 95 bolt to 12 N.m (106 lb in).
  3. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .

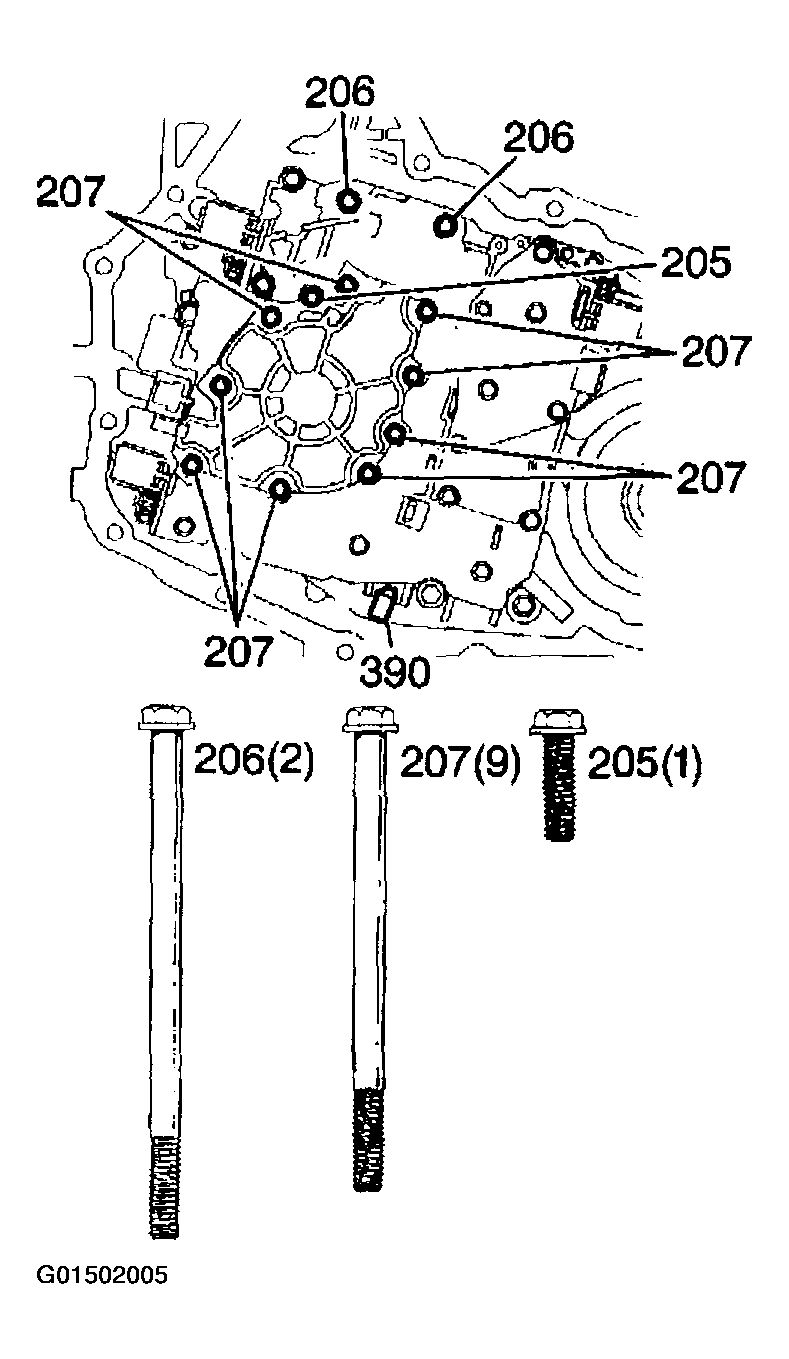

    Fig 2: Installing Oil Pump (2 Of 2)
    G01502005Courtesy of GENERAL MOTORS CORP.
