Installation Procedure

  1. Install the oil pan gasket (25).
  2. Install the oil pan (24).
  3. Install the oil pan bolts (23).

    Tighten

    Tighten the oil pan bolts (23) to 14 N.m (10 lb ft).

  4. Lower the vehicle.
  5. Fill the transaxle with the proper quantity of DEXRON® III.
  6. Place the gear selector in the Park position.
  7. Start the engine.
  8. Run the engine at a slow idle. Do NOT race the engine.

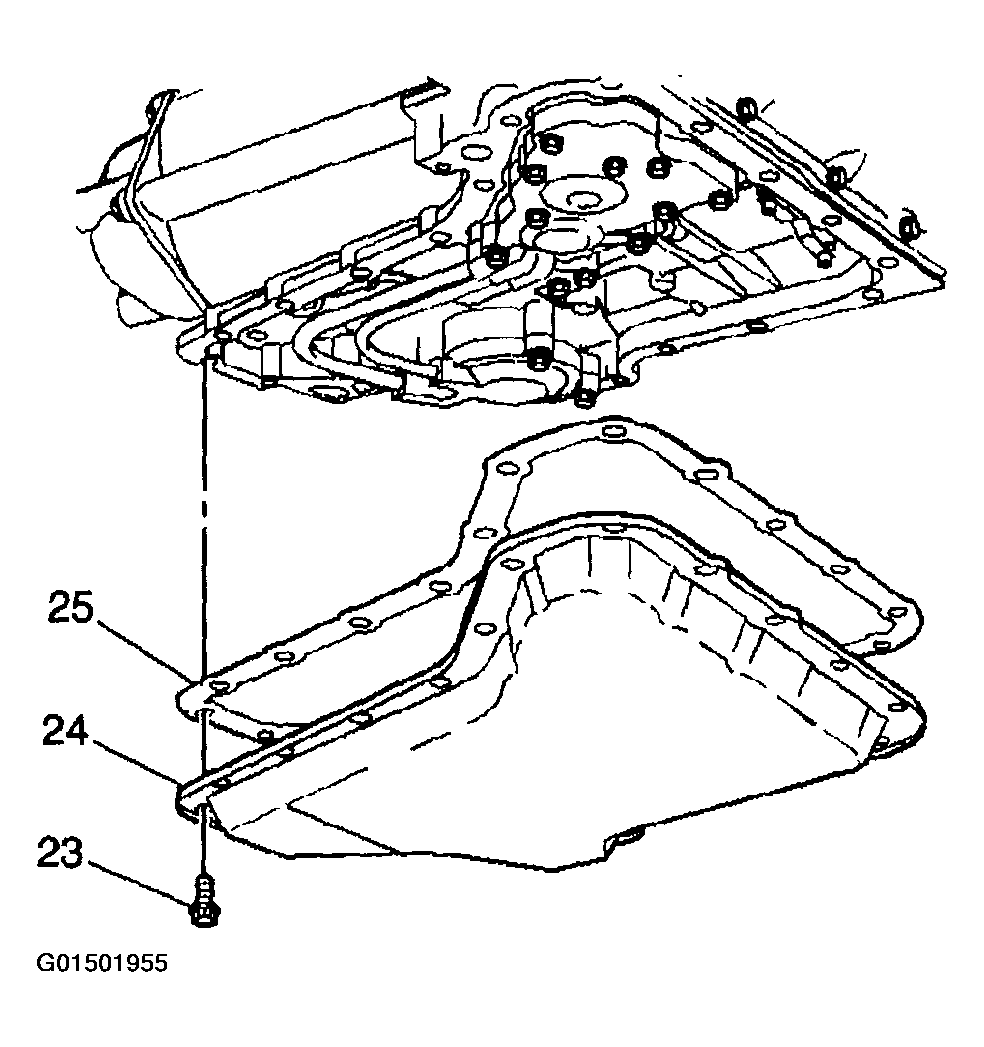

    Fig 1: Installing Oil Pan
    G01501955Courtesy of GENERAL MOTORS CORP.
    NOTE: Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle
  9. Adjust the fluid level. Refer to TRANSMISSION FLUID CHECKING PROCEDURE  .
  10. Inspect for proper completion of the repairs.
  11. Inspect the fluid for leaks.
