Installation Procedure

  1. Install the automatic transaxle range selector cable bracket.
  2. Install the automatic transaxle range selector cable bracket bolts.

    Tighten

    Tighten the automatic transaxle range selector cable bracket bolts to 25 N.m (18 lb ft).

  3. Install the automatic transaxle range selector cable to the cable lever and the bracket. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE REPLACEMENT  .
  4. Adjust the automatic transaxle range selector cable. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT  .
  5. Install the throttle body air inlet duct.

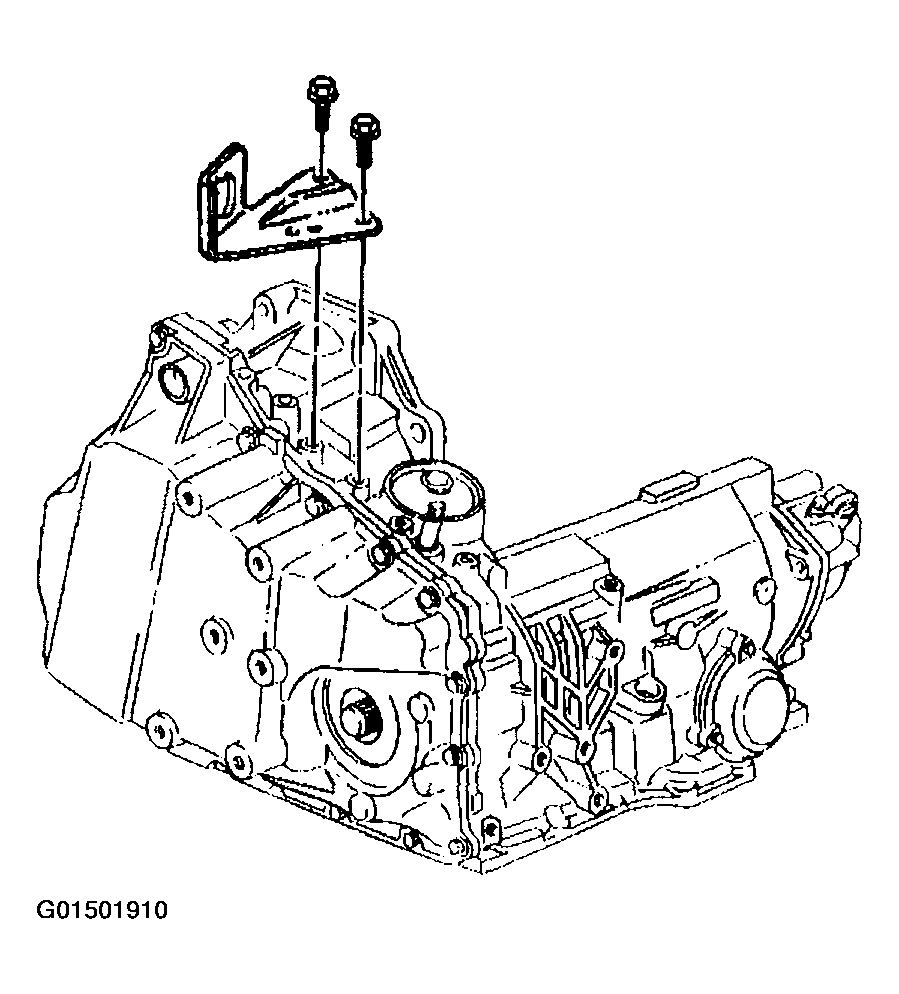

    Fig 1: Installing Automatic Transmission Range Selector Cable Bracket
    G01501910Courtesy of GENERAL MOTORS CORP.
