Installation Procedure

  1. Install the transaxle mount to the transaxle mount frame bracket.
  2. Install the transaxle mount lower nuts to the transaxle mount frame bracket.

    Tighten

    Tighten the transaxle mount lower nuts to 47 N.m (35 lb ft).

  3. Install the transaxle mount bracket to the transaxle. Refer to AUTOMATIC TRANSMISSION MOUNT BRACKET REPLACEMENT  .

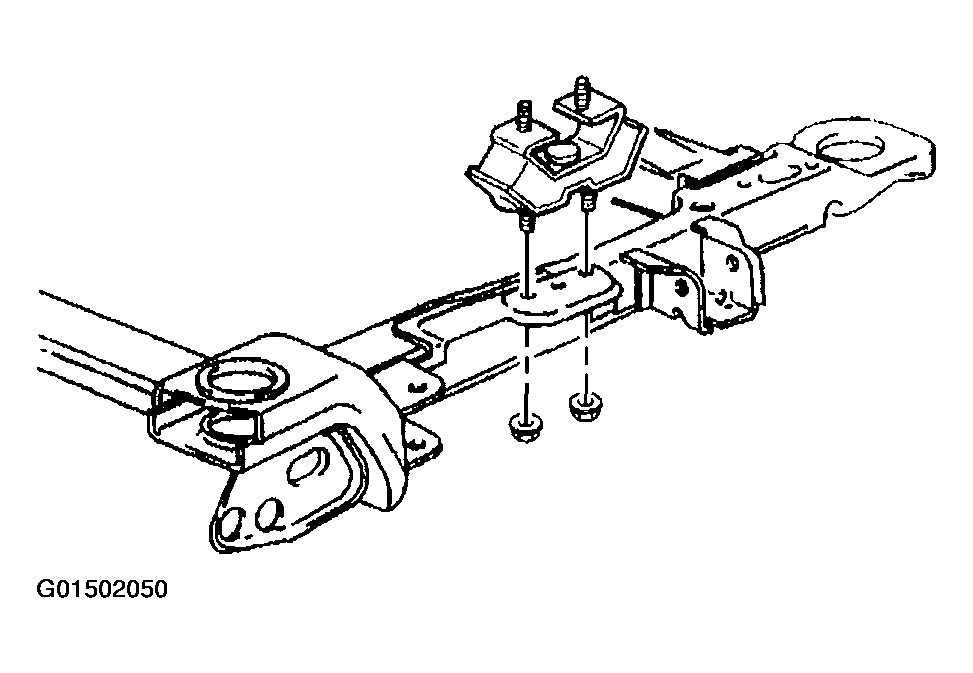

    Fig 1: Installing Transaxle Mount From Transaxle Mount Frame Bracket
    G01502050Courtesy of GENERAL MOTORS CORP.
