Home >> Pontiac >> 2003 >> Aztek FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle Diagnosis, Service & Repair - 4T65-E >> Component Locator >> Automatic Transmission Electronic Component Views

Automatic Transmission Electronic Component Views

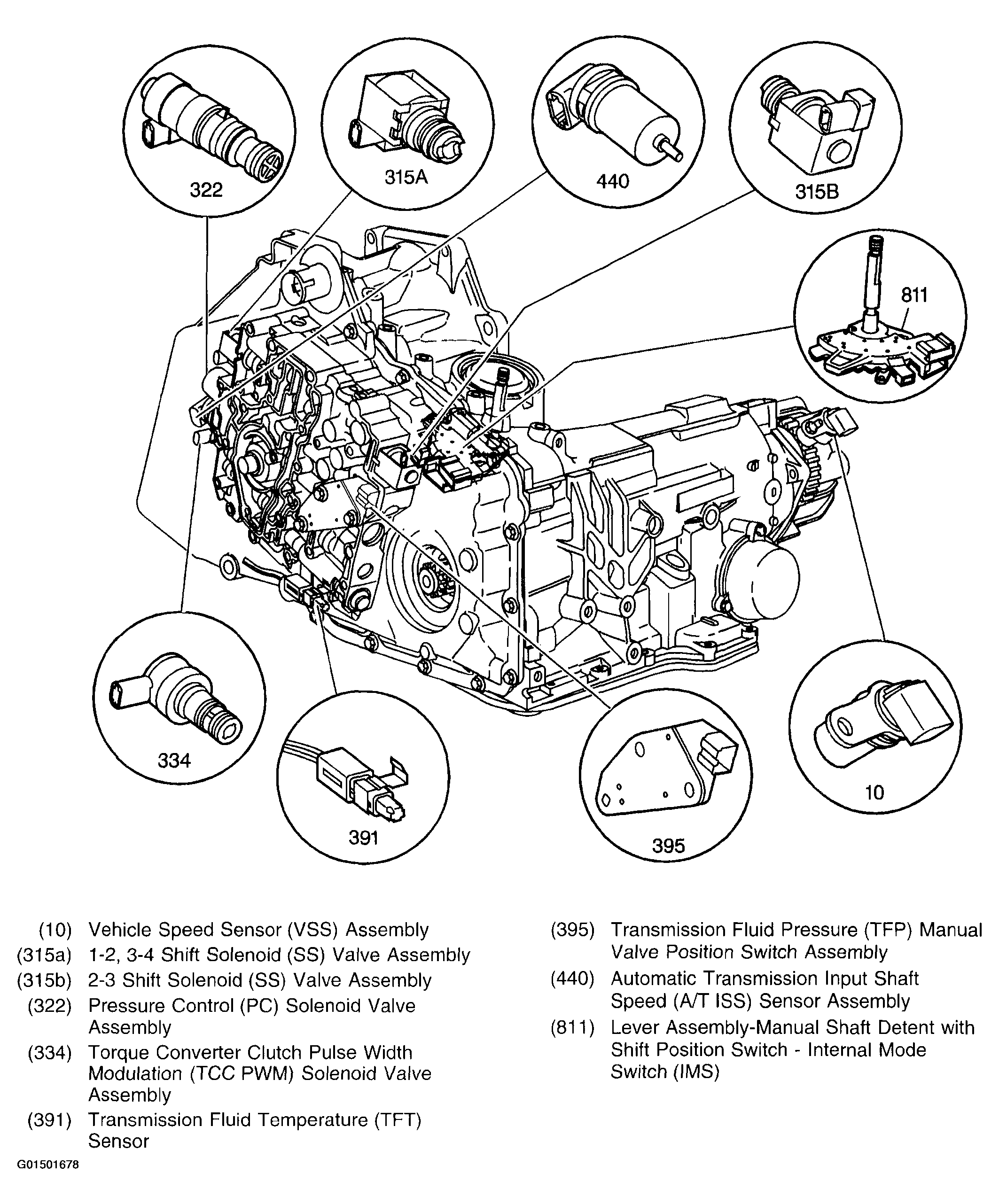

Fig 1: Locating Internal Electronic Components Of Automatic Transmission

G01501678

Courtesy of GENERAL MOTORS CORP.
