Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  2. Remove the wiper motor crank arm. Refer to Wiper Motor Crank Arm Replacement .
  3. Remove the wiper drive system module. Refer to Wiper Drive System Module Replacement .
  4. Remove the wiper motor screws.
  5. Remove the wiper motor from the wiper drive system module.
  6. Remove the shaft seal and the water shield from the wiper motor.

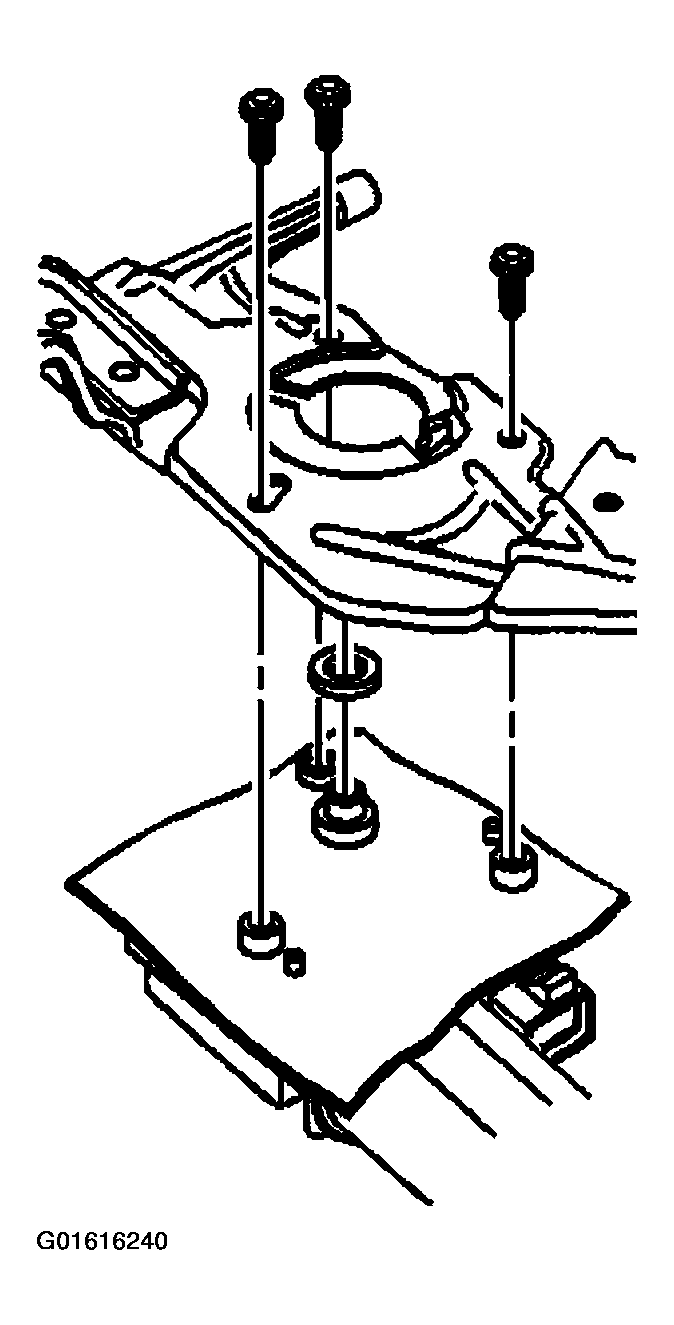

    Fig 1: Removing Wiper Motor Screws
    G01616240Courtesy of GENERAL MOTORS CORP.
