Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition ON.
  2. Turn the wiper switch to DELAY.
  3. Turn the ignition OFF when the wiper arms are paused at the bottom of the wipe pattern.
  4. Disconnect the washer hose from the wiper arm.
  5. Remove the wiper arm nut cover.
  6. Remove the wiper arm nut.
  7. Using the J 39822  , remove the wiper arm from the wiper transmission.

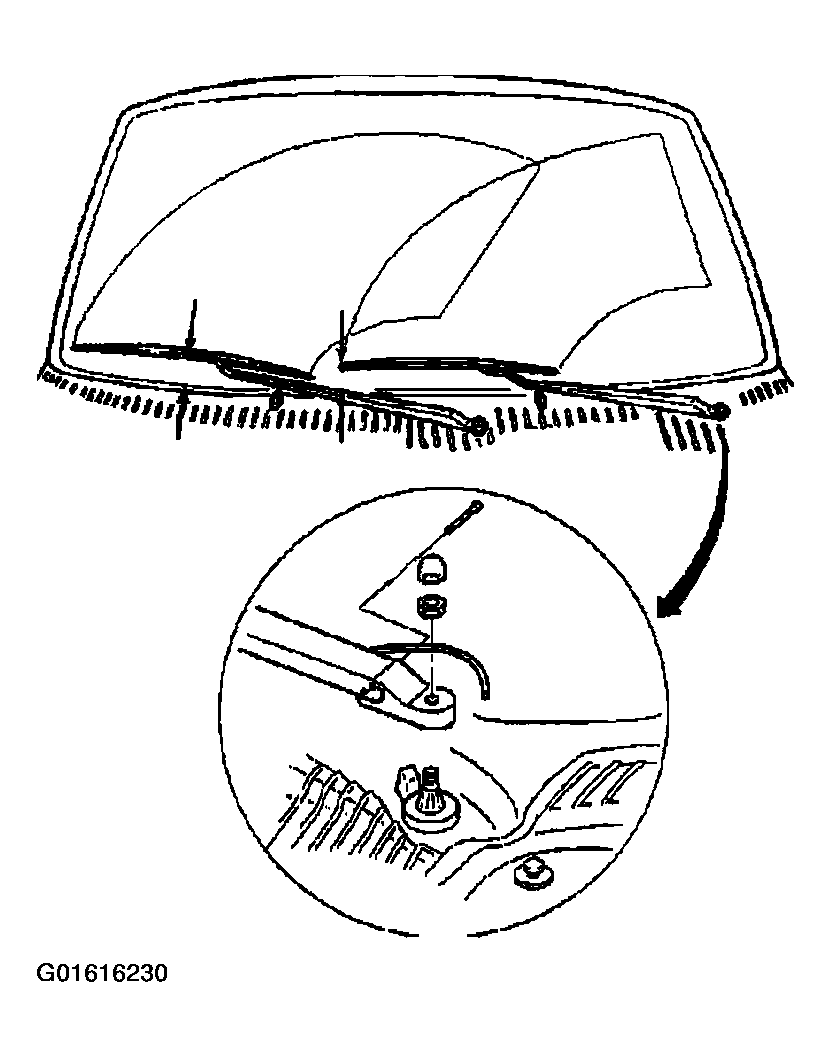

    Fig 1: Wiper Arm & Nut
    G01616230Courtesy of GENERAL MOTORS CORP.
