Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inside handle assembly to the endgate cover using 2 rivets.
    Fig 1: Installing Inside Handle Assembly To Endgate Cover
    G01478212Courtesy of GENERAL MOTORS CORP.
  2. Install the endgate bellcrank rod to the endgate inside handle assembly.
  3. Secure the endgate latch rods to the latch rod clips.
  4. Install the endgate cover to the endgate.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the screws that retain the endgate cover to the endgate.

    Tighten

    Tighten the screws to 1.2 N.m (11 lb in).

  6. Install the endgate trim panel. Refer to TRIM PANEL REPLACEMENT - END GATE .
  7. Install the handle to the inside handle assembly. Refer to HANDLE REPLACEMENT - REAR DOOR INSIDE .

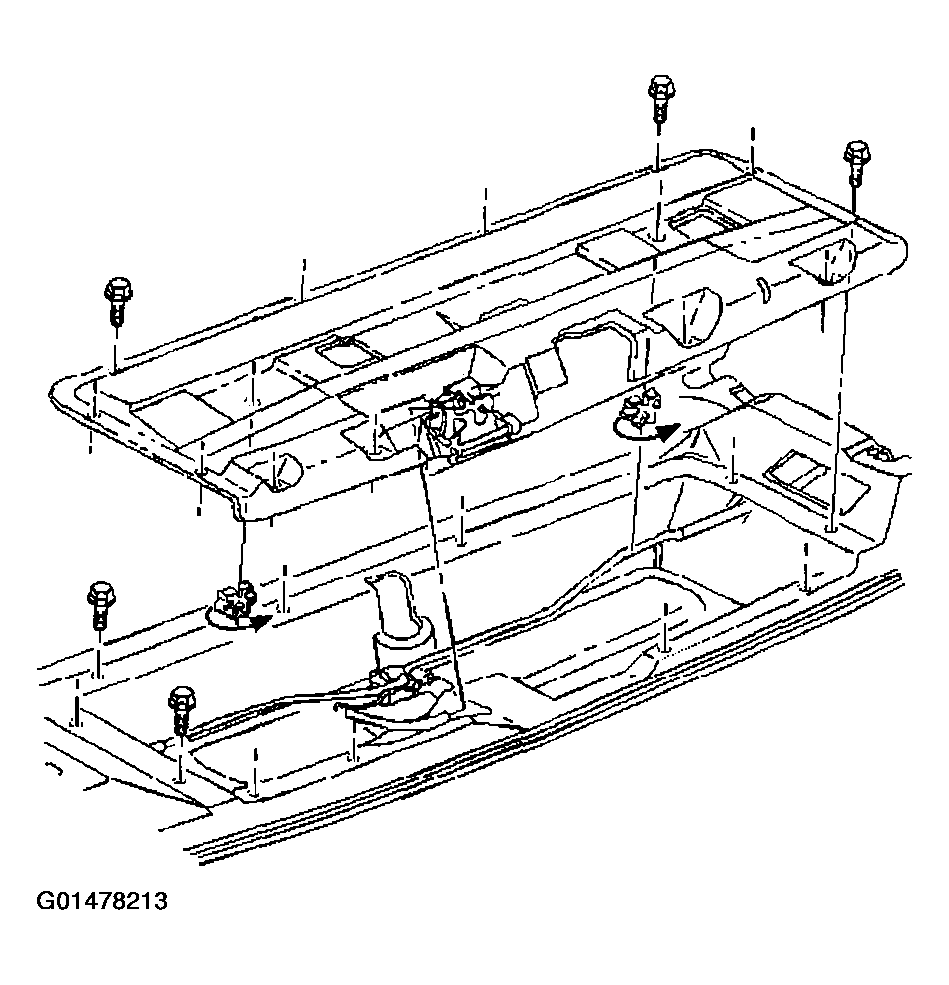

    Fig 2: Installing Endgate Cover To Endgate
    G01478213Courtesy of GENERAL MOTORS CORP.
