Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

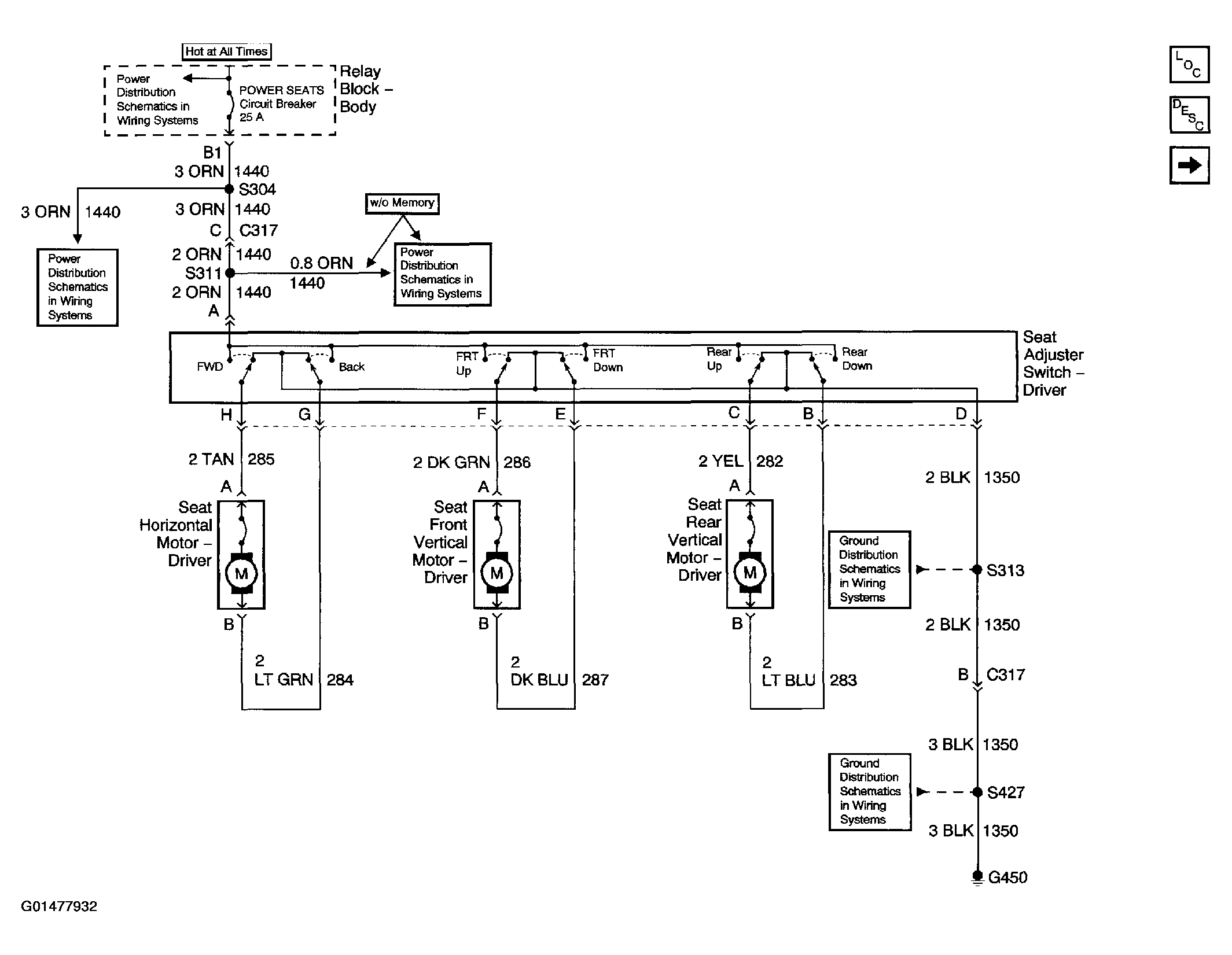

Fig 1: Power Seats Schematics (6-Way Left Power Seat)

Courtesy of GENERAL MOTORS CORP.

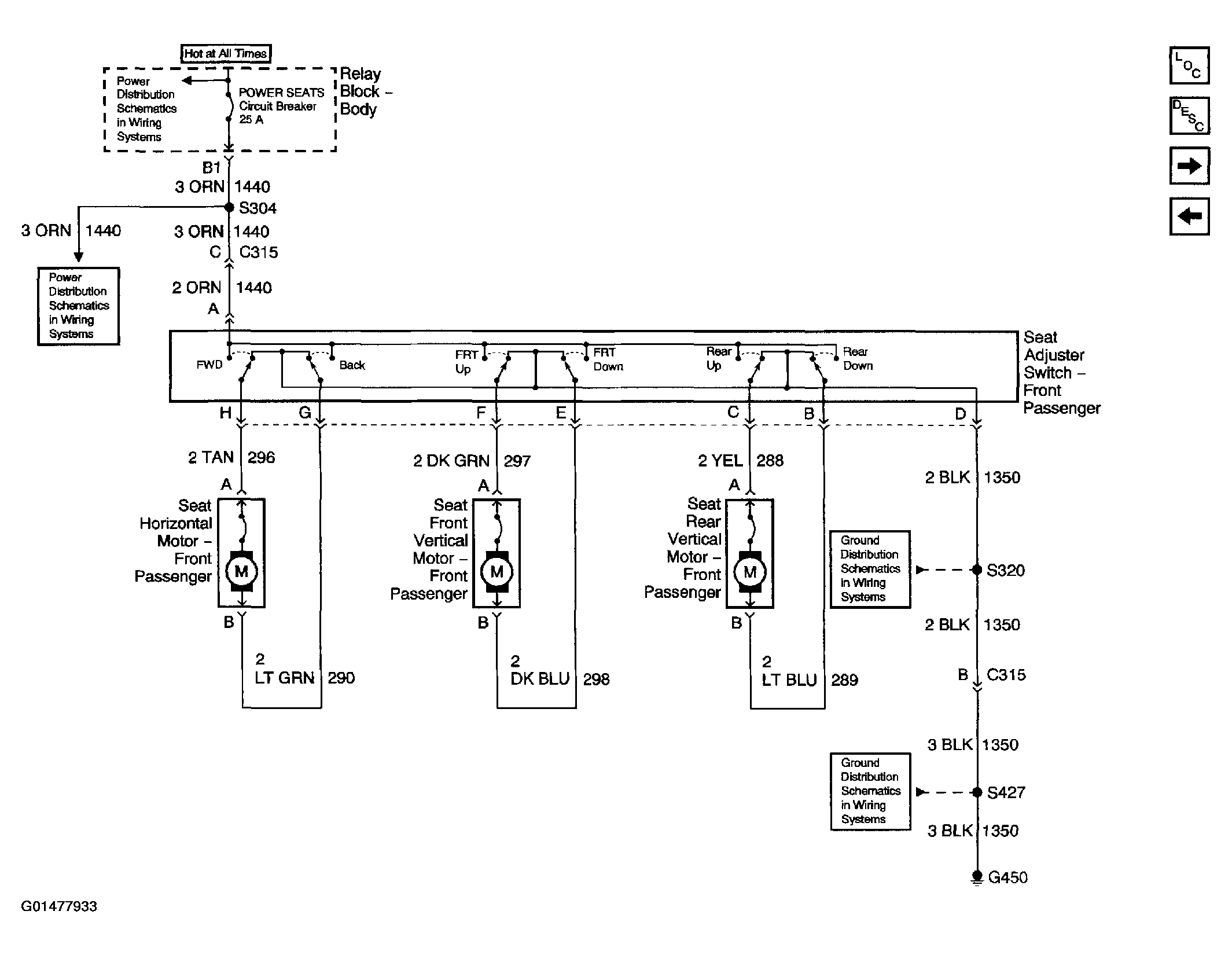

Fig 2: Power Seats Schematics (6-Way Right Power Seat)

Courtesy of GENERAL MOTORS CORP.

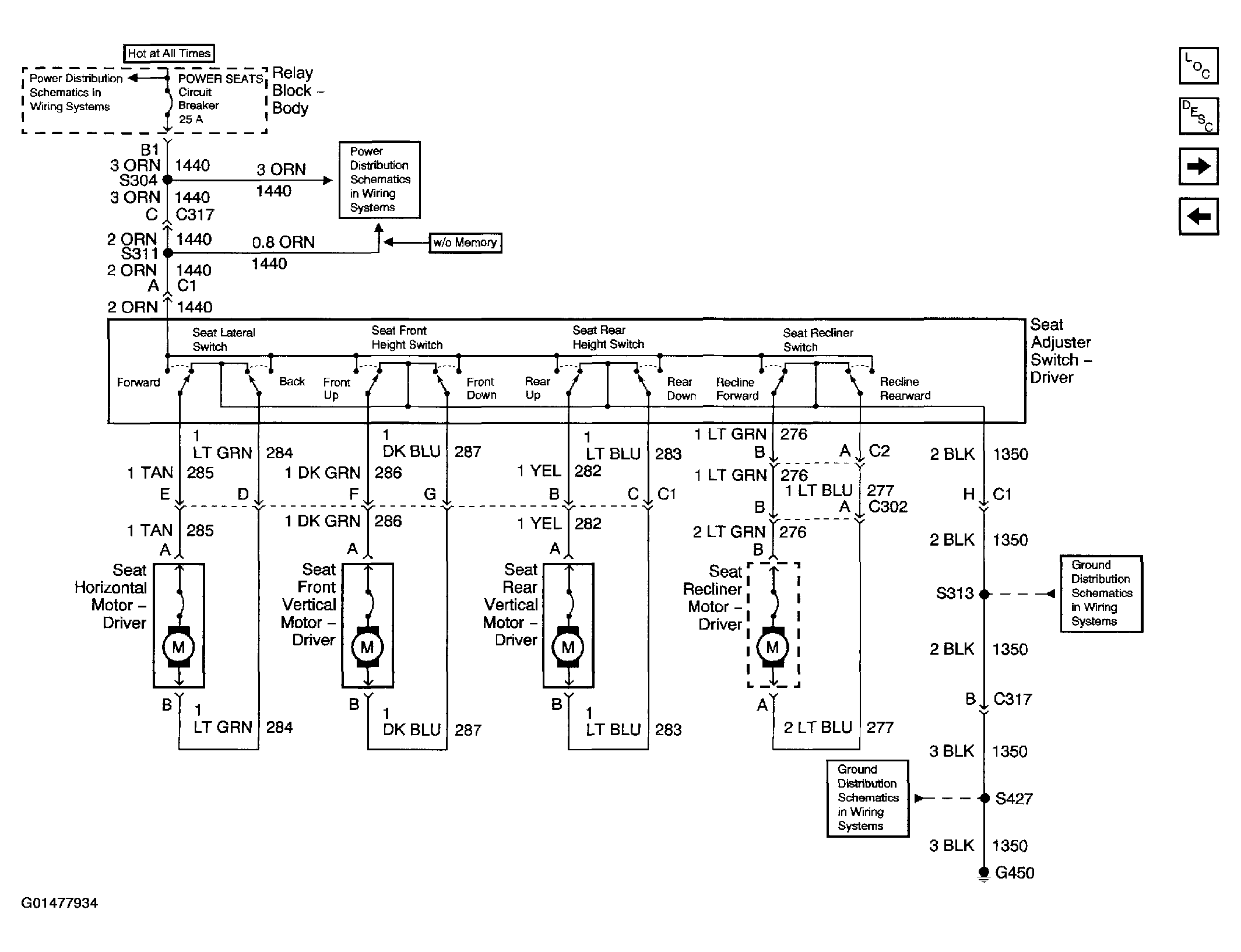

Fig 3: Power Seats Schematics (8-Way Left Power Seat)

Courtesy of GENERAL MOTORS CORP.

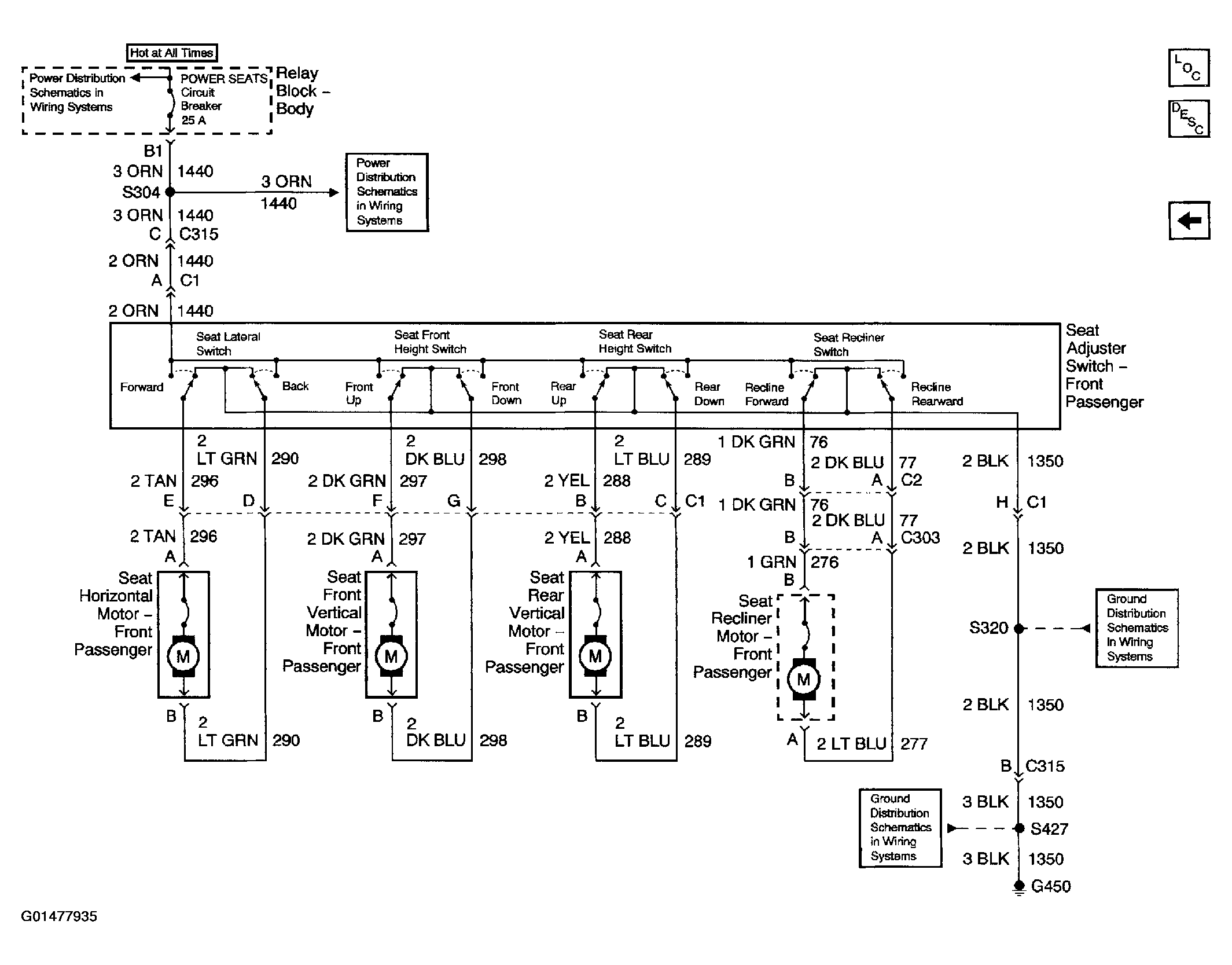

Fig 4: Power Seats Schematics (8-Way Right Power Seat)

Courtesy of GENERAL MOTORS CORP.

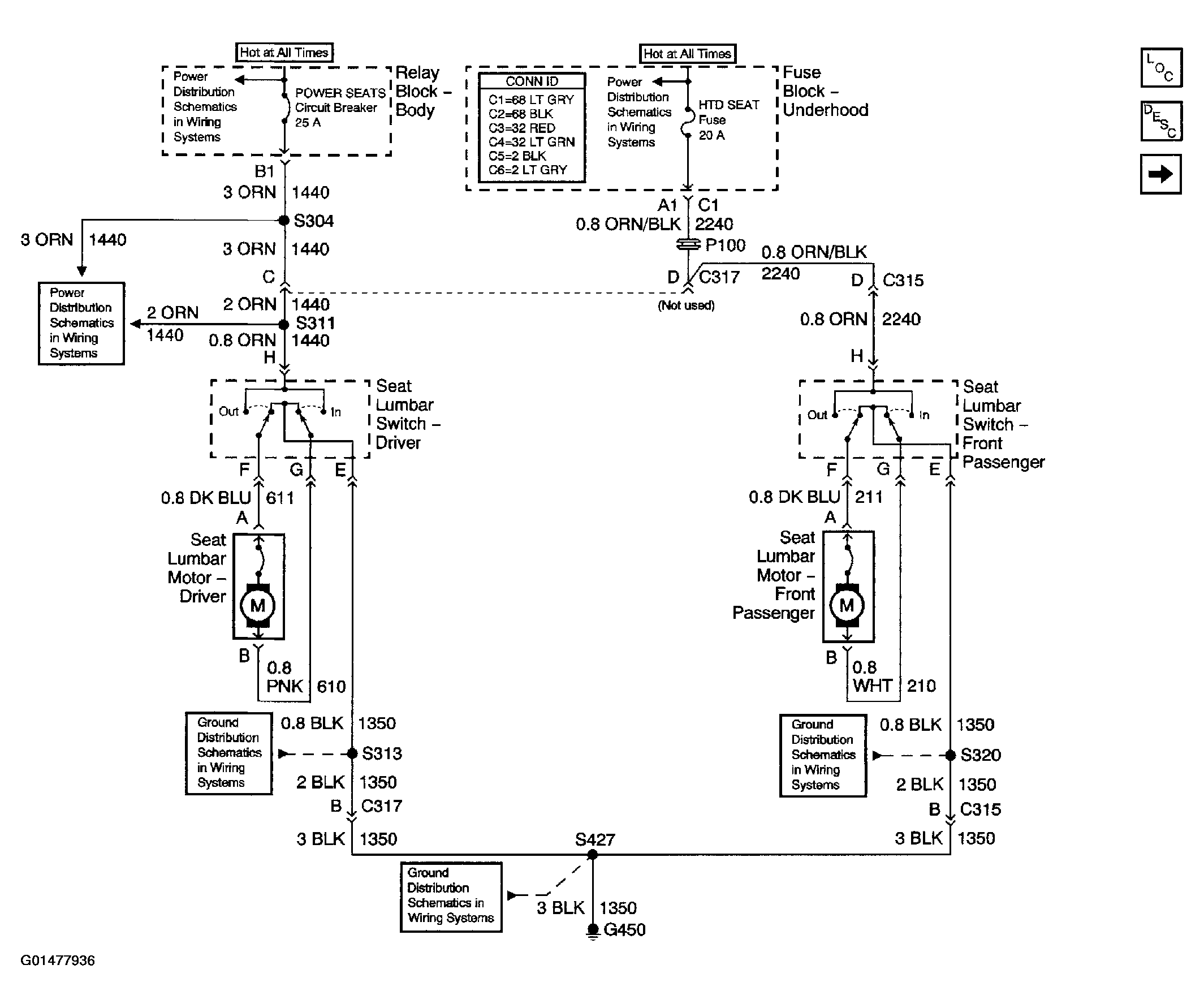

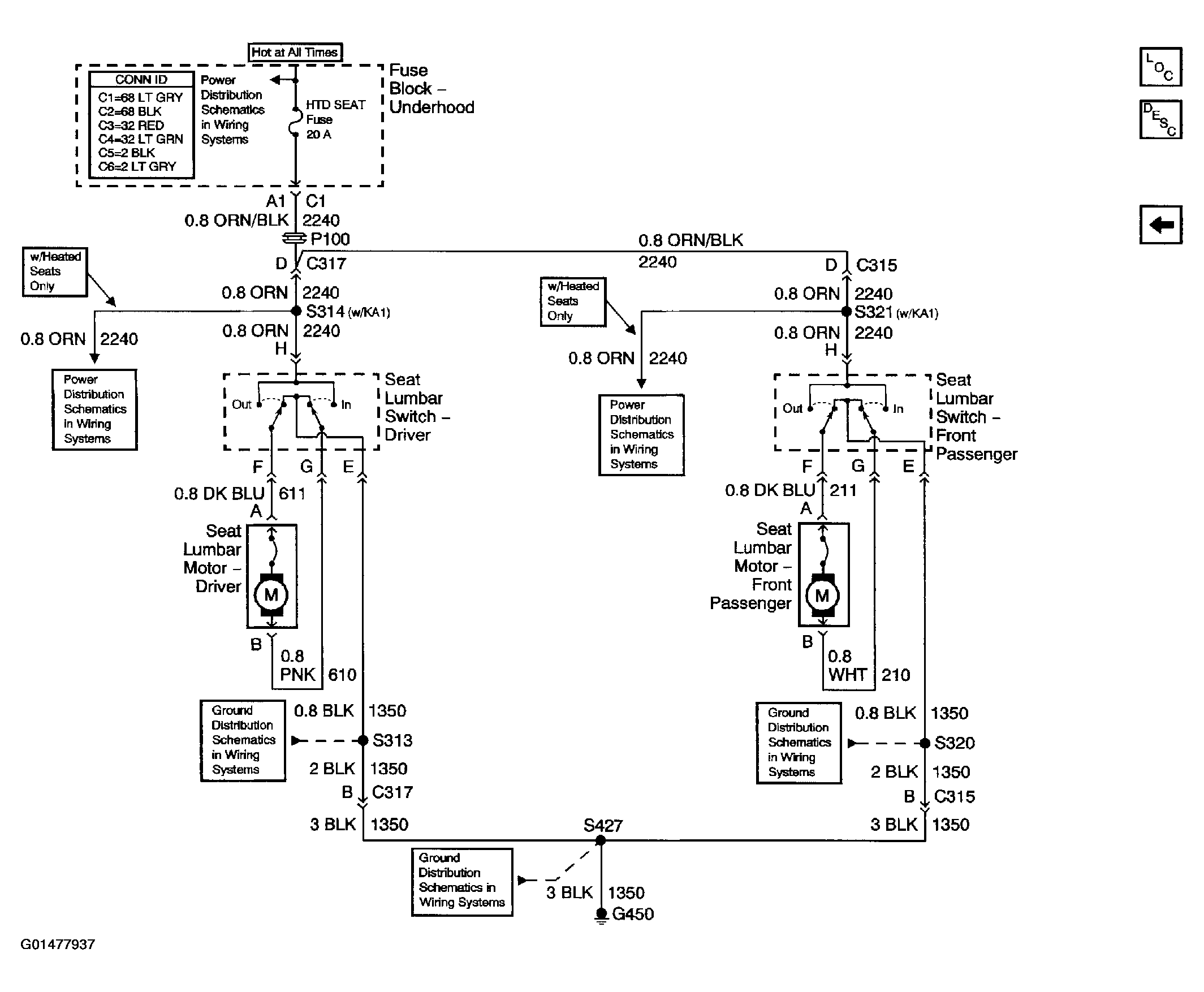

Fig 5: Lumber Support Schematics (Lumber W/O Memory Seats)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Lumber Support Schematics (Lumber W/ Memory Seats)

Courtesy of GENERAL MOTORS CORP.

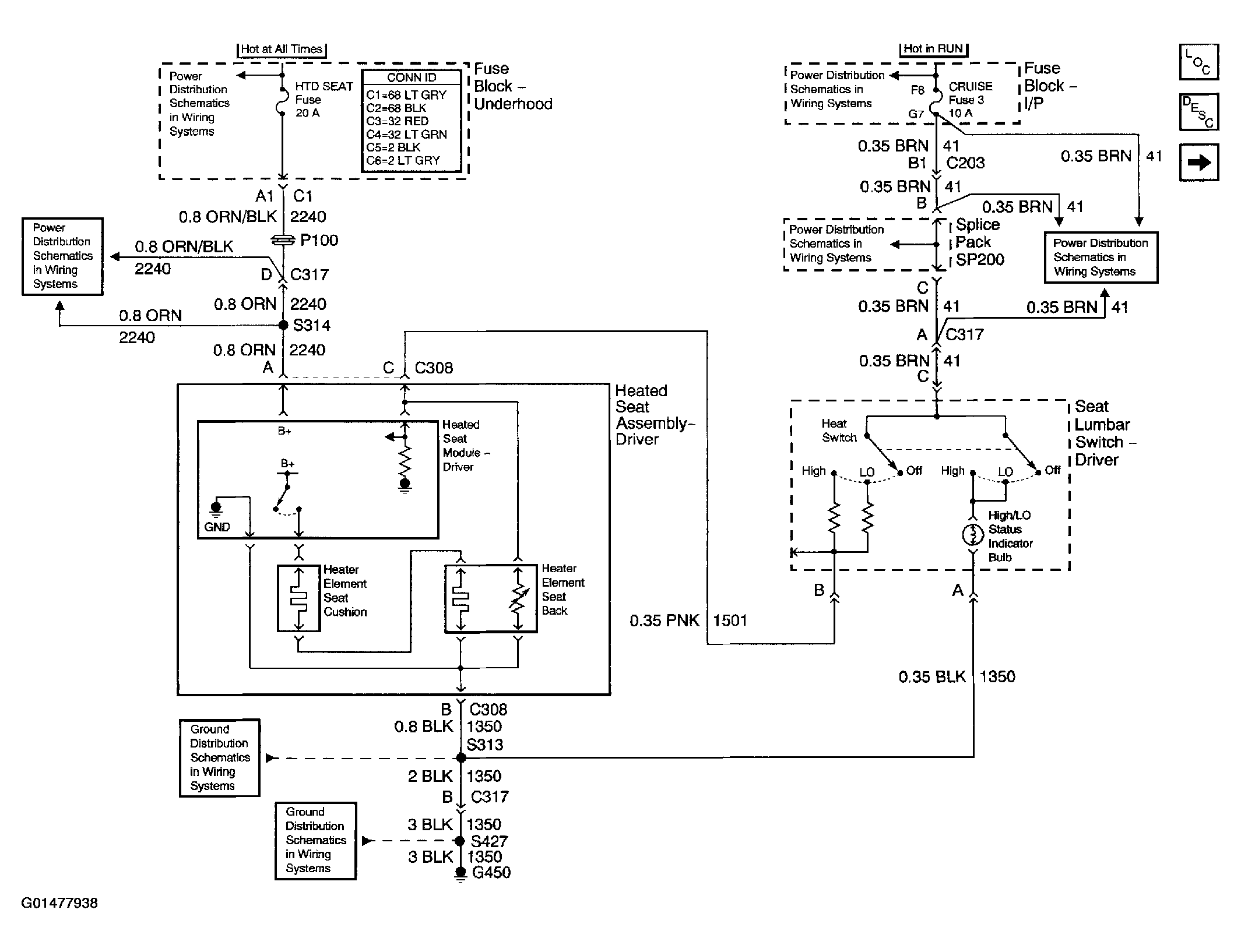

Fig 7: Heated Seats Schematics (Left Heated Seat)

Courtesy of GENERAL MOTORS CORP.

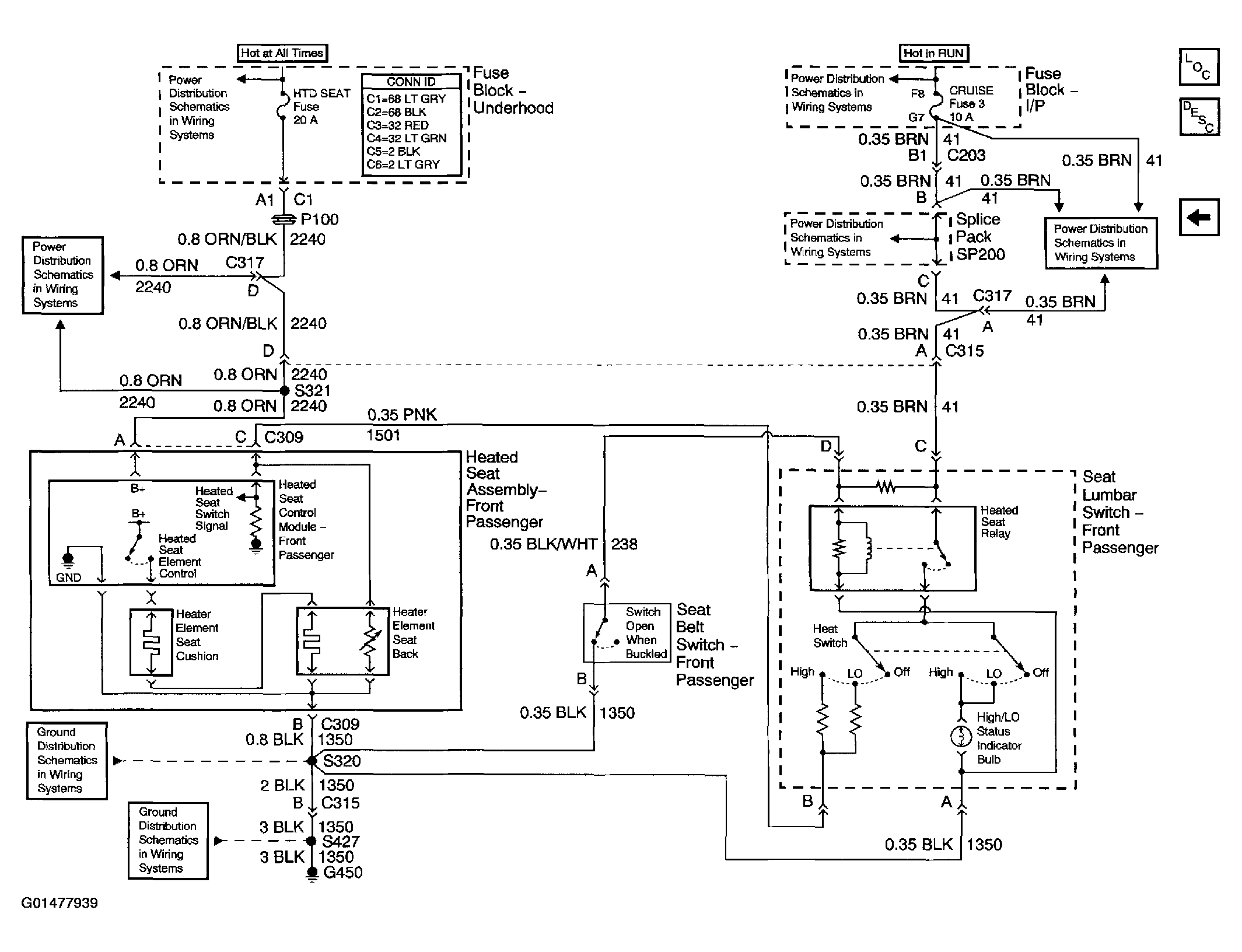

Fig 8: Heated Seats Schematics (Right Heated Seat)

Courtesy of GENERAL MOTORS CORP.

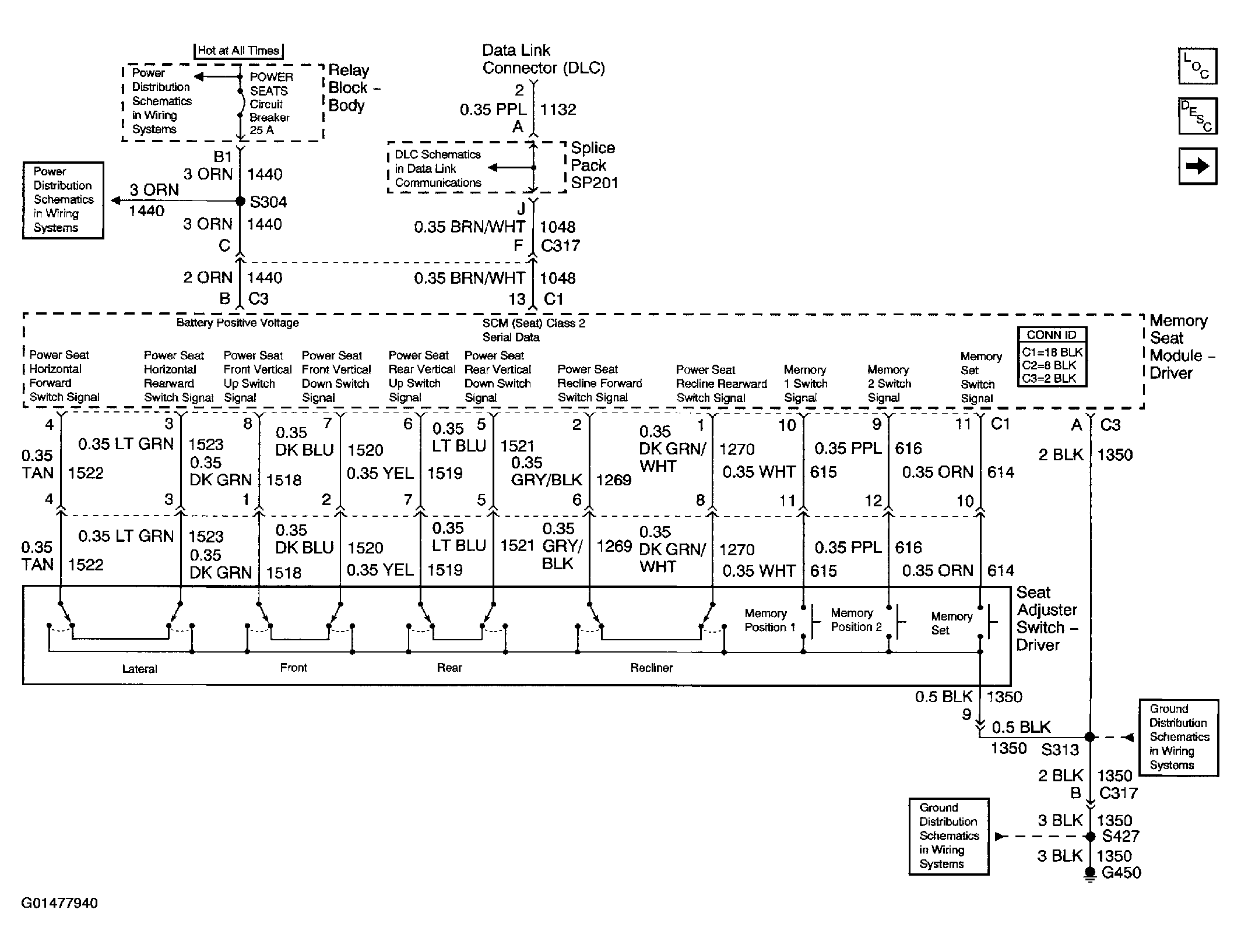

Fig 9: Memory Seats Schematics (Power, Ground, Data Link Connector (DLC) and Power Seat Adjuster Switch)

Courtesy of GENERAL MOTORS CORP.

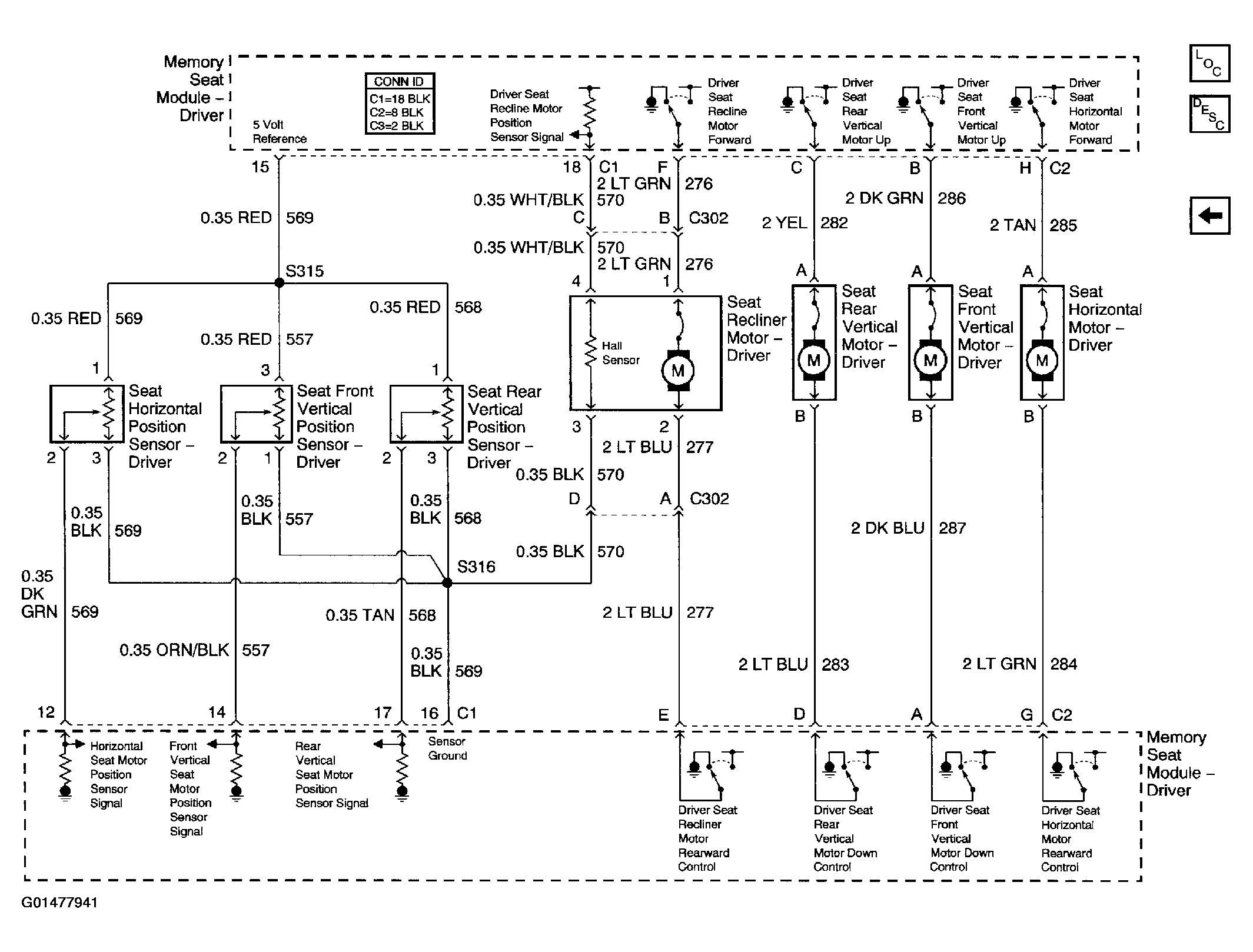

Fig 10: Memory Seats Schematics (Seat Adjuster Memory Module, Transducers and Motors)

Courtesy of GENERAL MOTORS CORP.
