Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the switch assembly to the trim panel by snapping the switch into the plastic retaining clips.

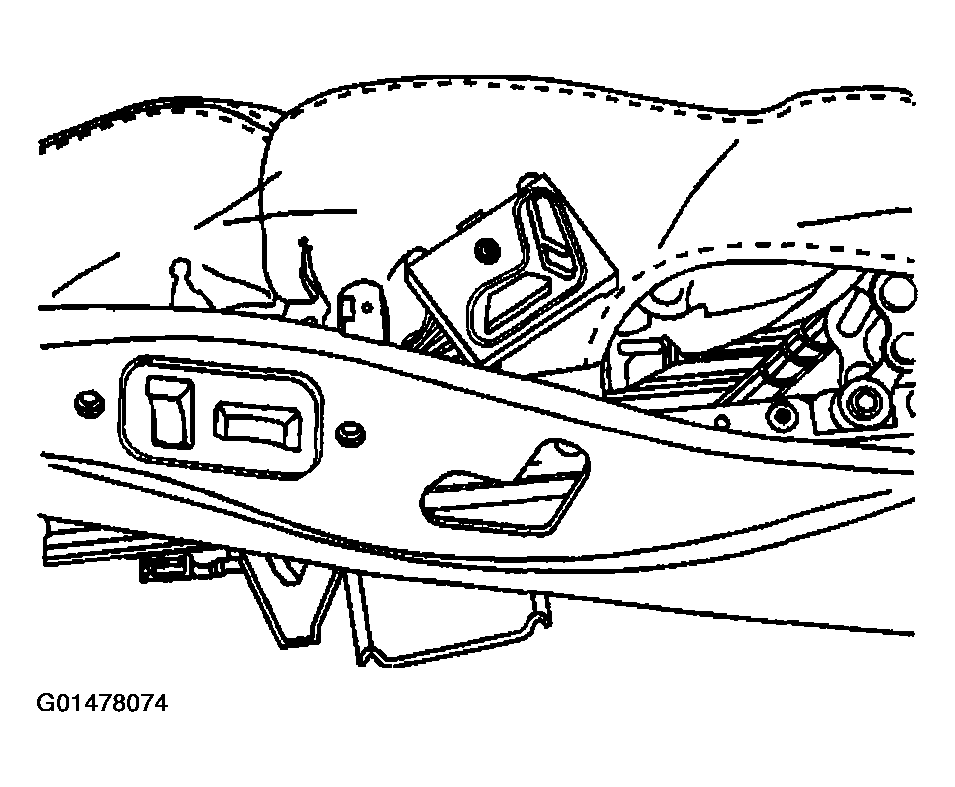

Fig 1: Installing Switch Assembly To Trim Panel By Snapping Switch Into Plastic Retaining Clips
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the switch.

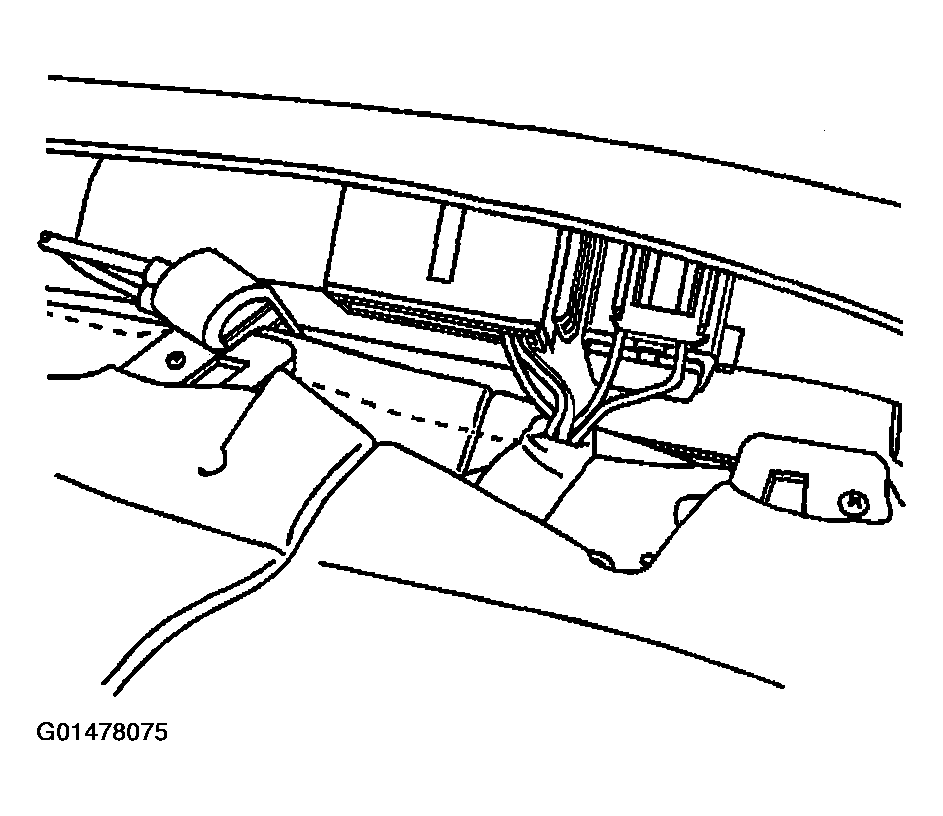

Fig 2: Connecting Electrical Connector To Switch
Courtesy of GENERAL MOTORS CORP.
Install the trim panel to the seat with the 3 screws.
Install the seat to the vehicle. Refer to SEAT REPLACEMENT - Bucket or SEAT REPLACEMENT - Bench .

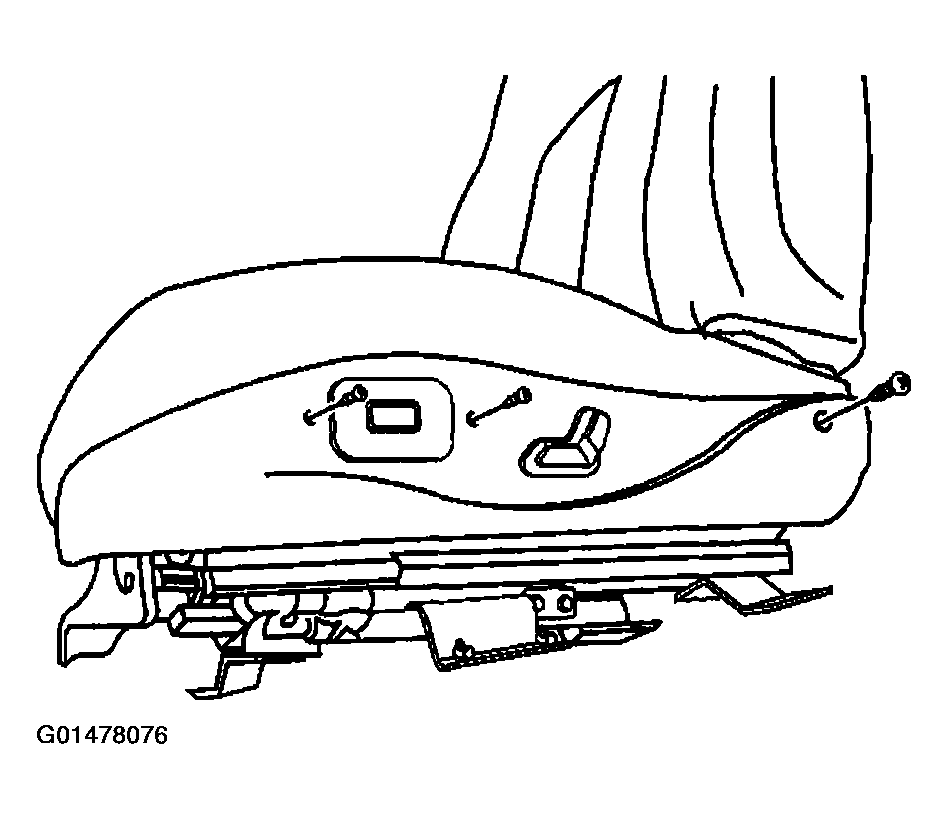

Fig 3: Installing Trim Panel To Seat With Screws
Courtesy of GENERAL MOTORS CORP.
