Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Guide the seat belts through the slots in the seat. Install the seat to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the seat mounting bolts.

    Tighten

    Tighten the seat mounting bolts to 70 N.m (52 lb ft).

  3. Install the seat mounting nuts.

    Tighten

    Tighten the seat mounting nuts to 45 N.m (33 lb ft).

  4. Connect the electrical connectors, if equipped.
  5. Install the seat adjuster trim covers. Refer to SEAT ADJUSTER TRACK COVER REPLACEMENT - Front (Power)  or SEAT ADJUSTER TRACK COVER REPLACEMENT - Front (Manual) .
  6. Connect the battery negative cable.

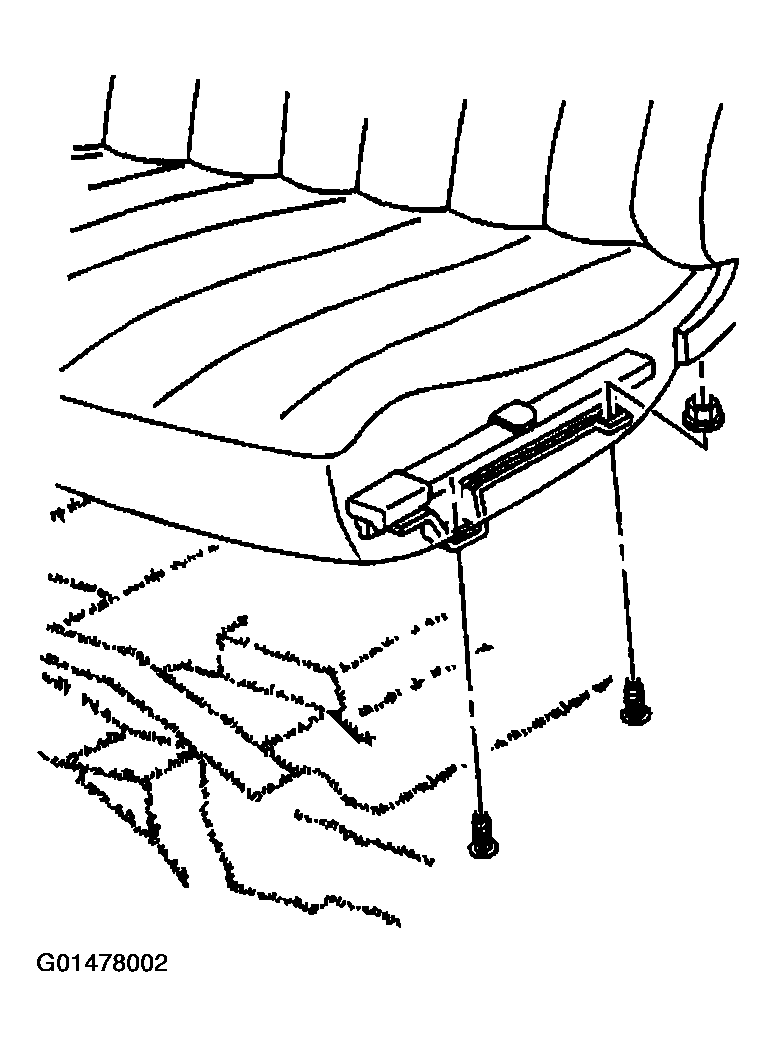

    Fig 1: Installing Seat (Bench) To Vehicle
    G01478002Courtesy of GENERAL MOTORS CORP.
