Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lumbar adjustment handle to the seat bottom.
  2. Ensure that the adjustment handle is secure before installing the retainer clip to the adjustment handle.
  3. Install the retainer clip to the adjustment handle.

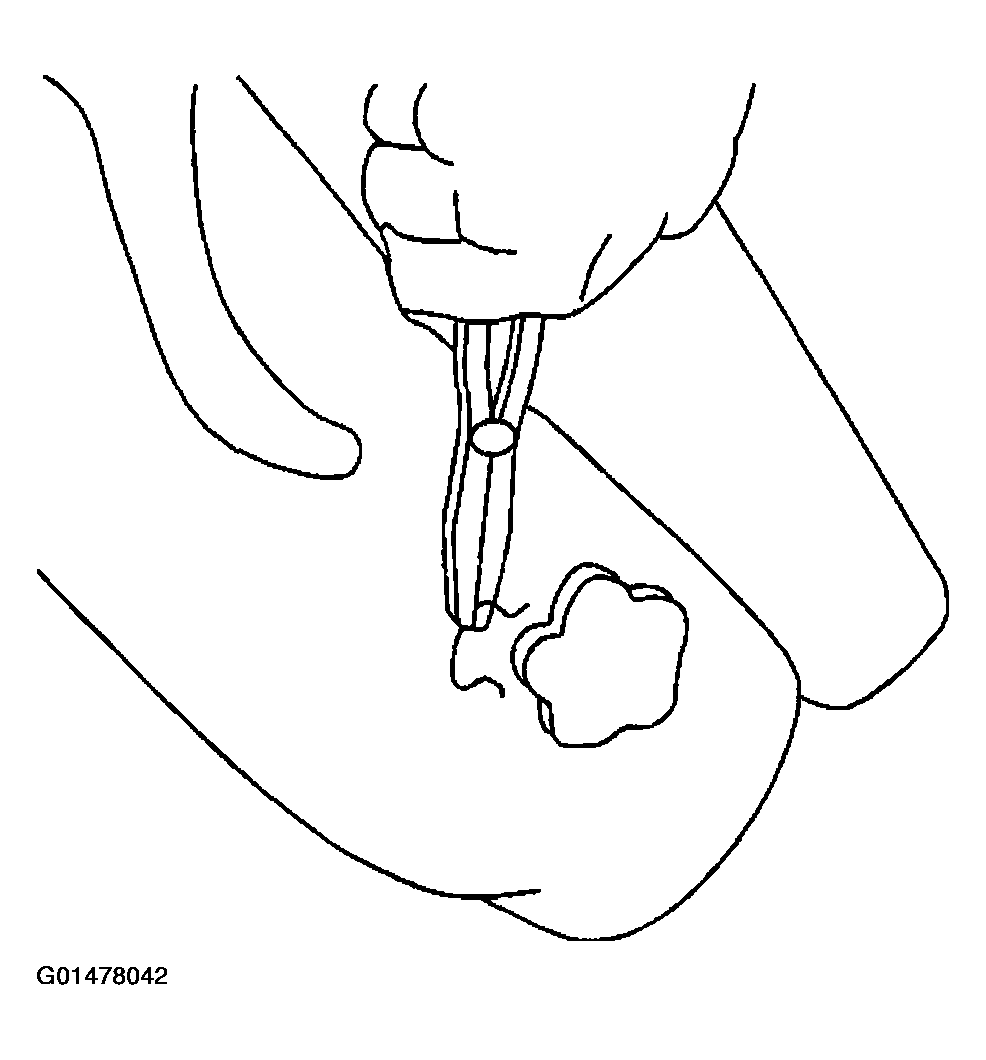

    Fig 1: Installing Lumbar Adjustment Handle To Seat Bottom
    G01478042Courtesy of GENERAL MOTORS CORP.
