Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the headlamp switch is OFF and that the ignition switch is in the LOCK position.
  2. Remove the instrument panel accessory trim plate. Refer to TRIM PLATE REPLACEMENT -- INSTRUMENT PANEL (I/P) ACCESSORY in Instrument Panel, Gages and Console.
  3. Disconnect the electrical connectors.
  4. Remove the screws that retain the headlamp switch panel to the instrument panel accessory trim plate.
  5. Remove the headlamp switch panel from the instrument panel accessory trim plate.

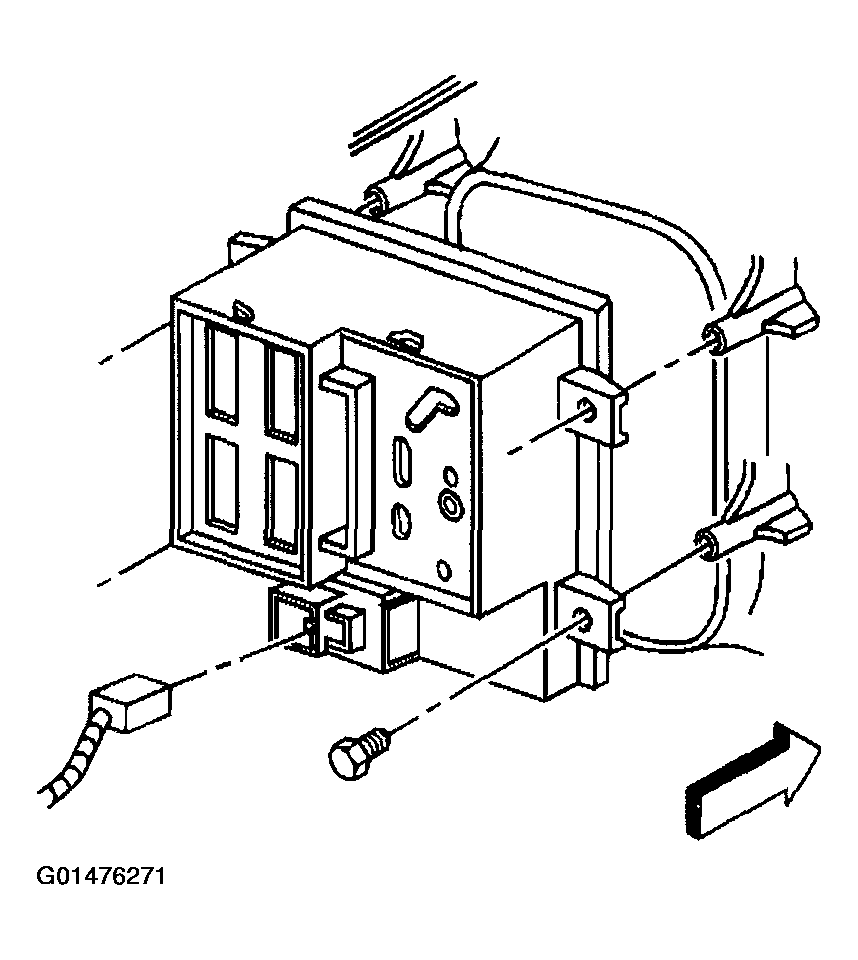

    Fig 1: Removing Headlamp Switch Panel To Instrument Panel Accessory Trim Plate Retaining Screws
    G01476271Courtesy of GENERAL MOTORS CORP.
