Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) cluster trim plate. Refer to TRIM PLATE BEZEL REPLACEMENT - I/P CLUSTER .
  2. Remove the radio screws.

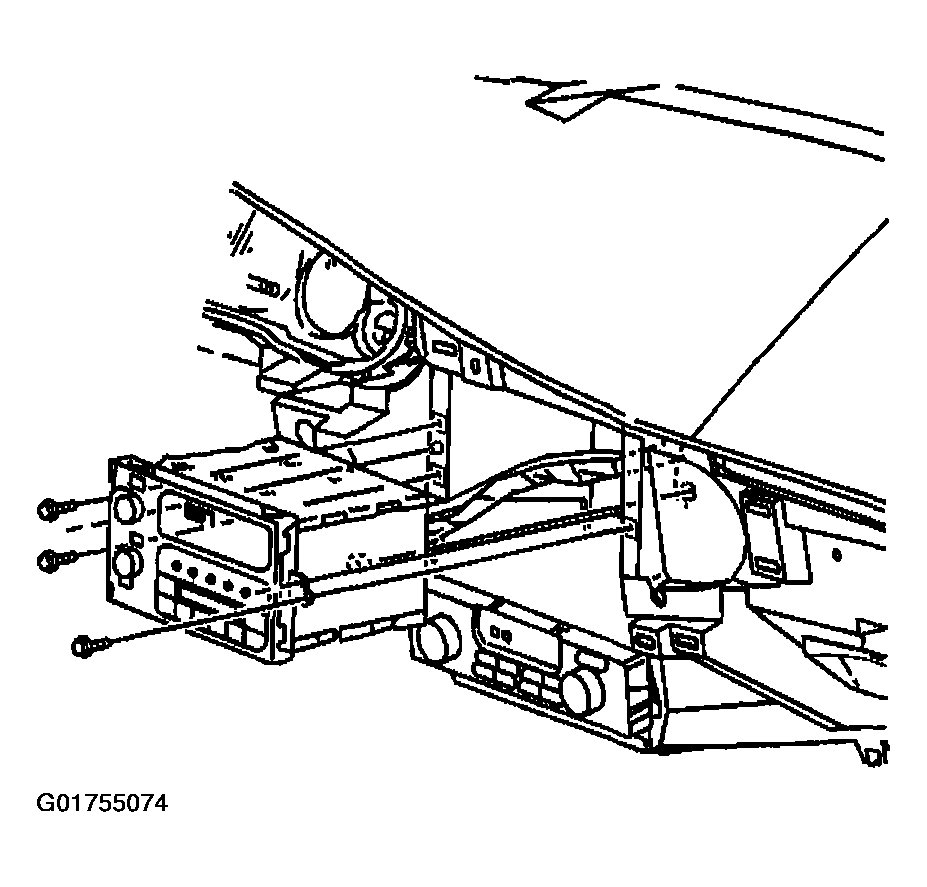

    3. Fig 1: Identifying Radio
    G01755074Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector and the coaxial cable connector from the radio.
  4. Remove the radio from the I/P.
