Installation Procedure
WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Refer to FASTENER NOTICE
.

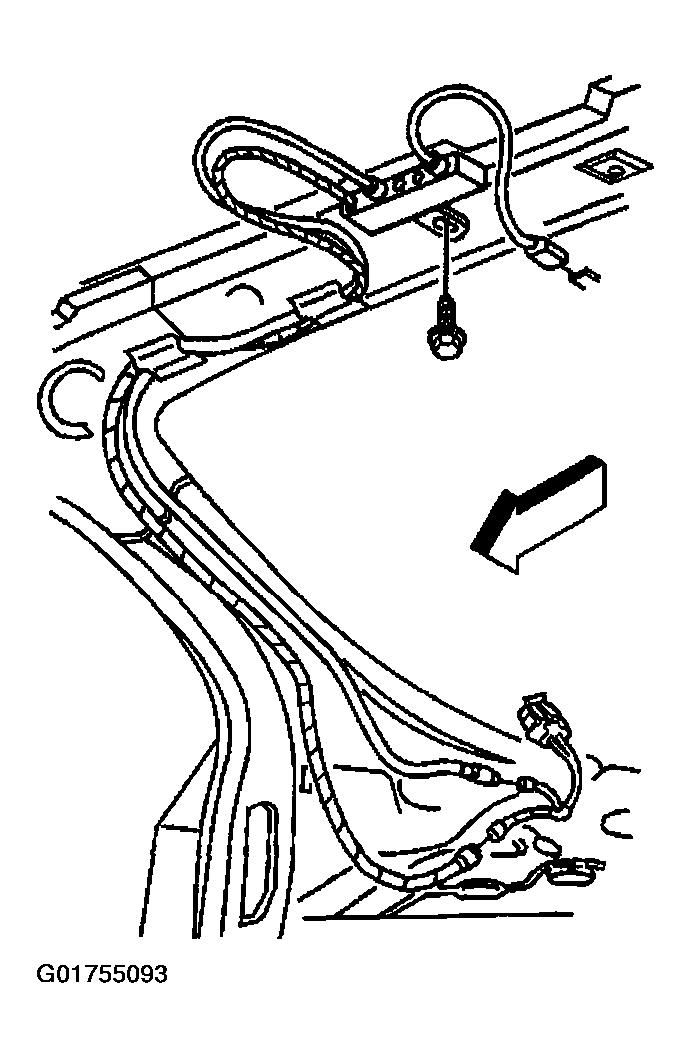

- Install the antenna module and the antenna module bolt. Tighten the antenna module bolt to 3 N.m (27 lb in).
- Connect the antenna coaxial cable.
- Connect the antenna module electrical connector.
- Connect the rear window antenna lead to the rear window antenna connector.
- Secure the wiring harnesses to the rear window inner upper panel with tape.
- Install the headliner. Refer to HEADLINER REPLACEMENT .
- Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF .
