Video System Schematics

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.

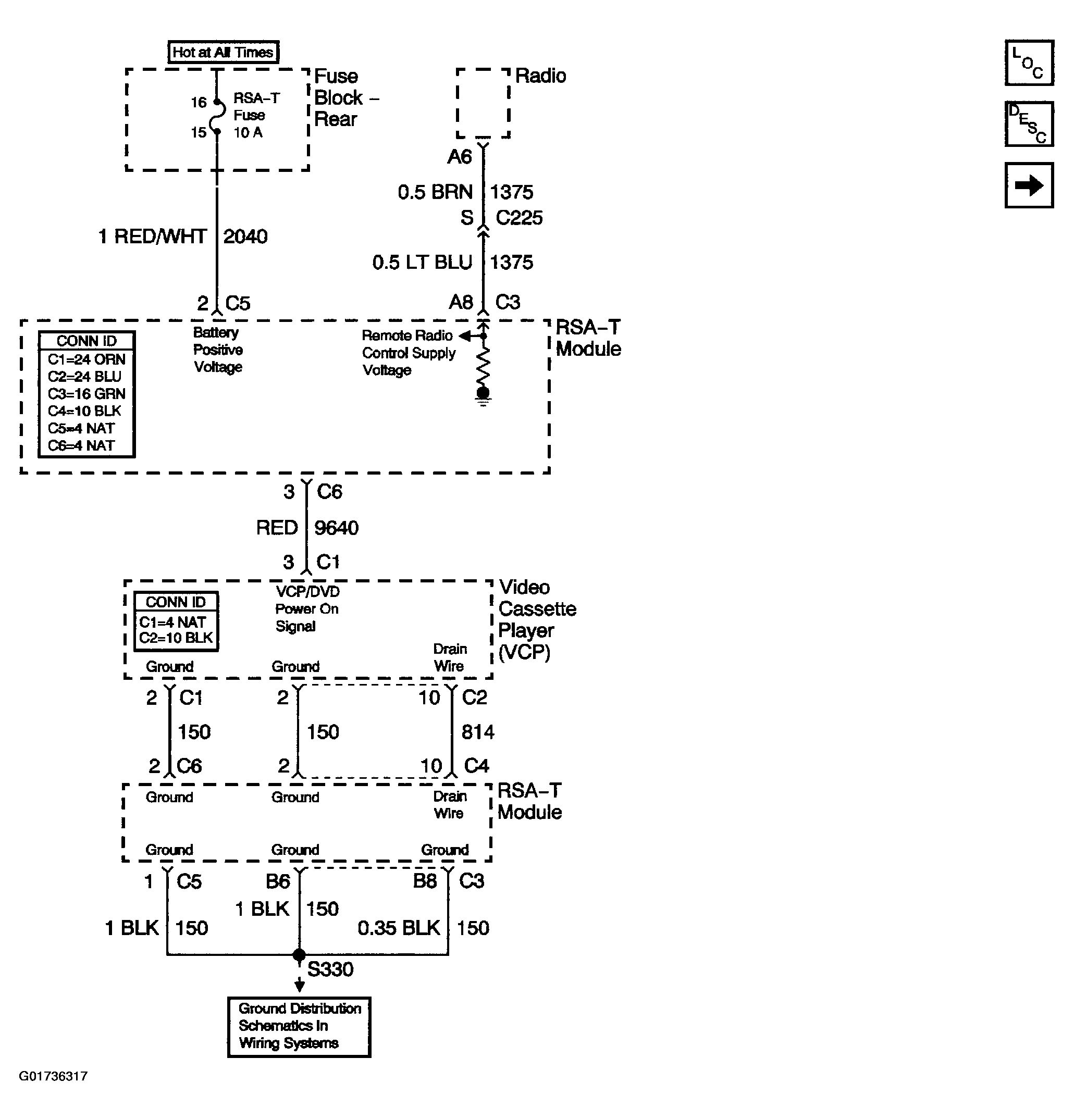

Fig 1: Video System Schematics (VCP Power & Grounding)

Courtesy of GENERAL MOTORS CORP.

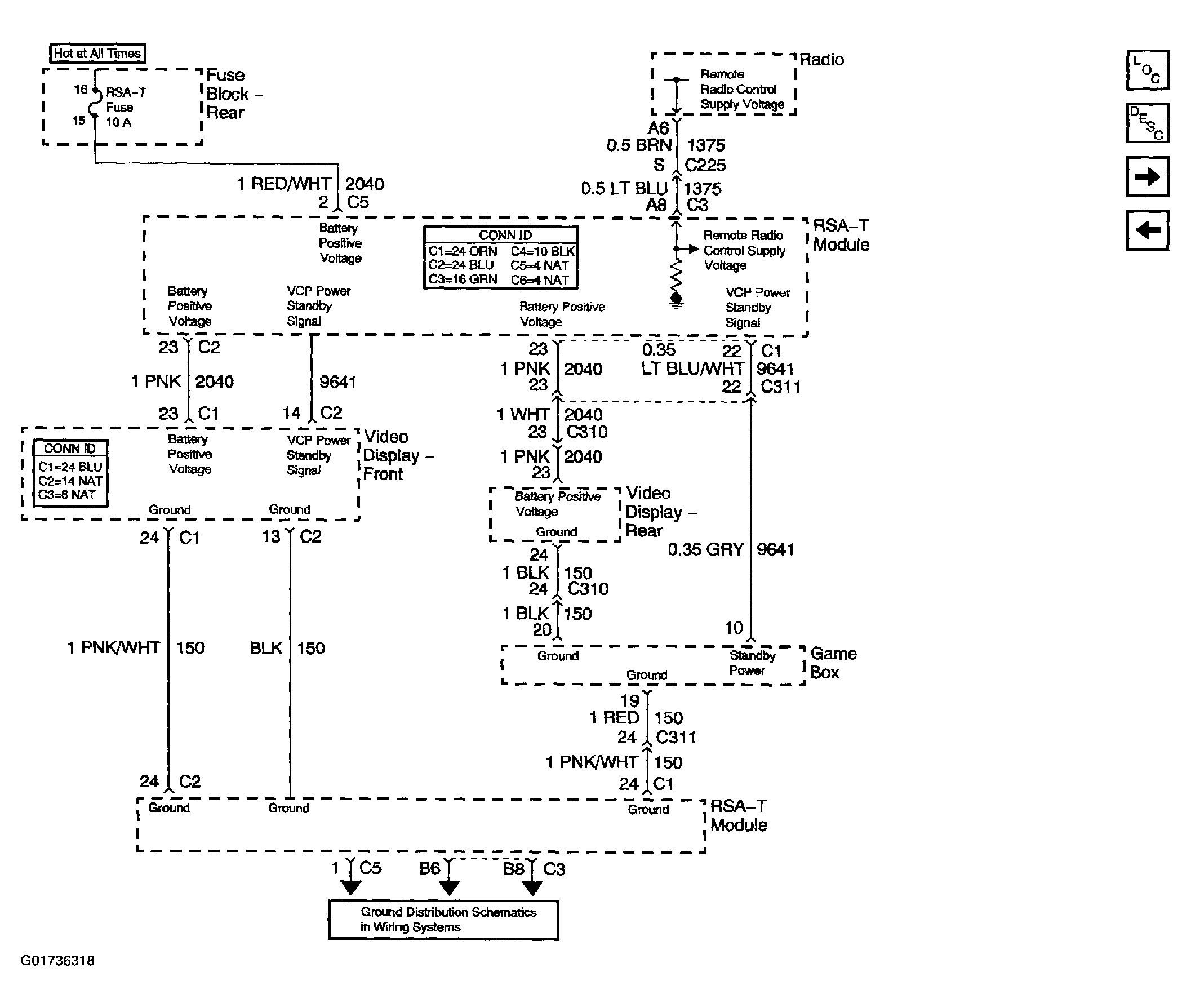

Fig 2: Video System Schematics (Video Display Power & Grounding)

Courtesy of GENERAL MOTORS CORP.

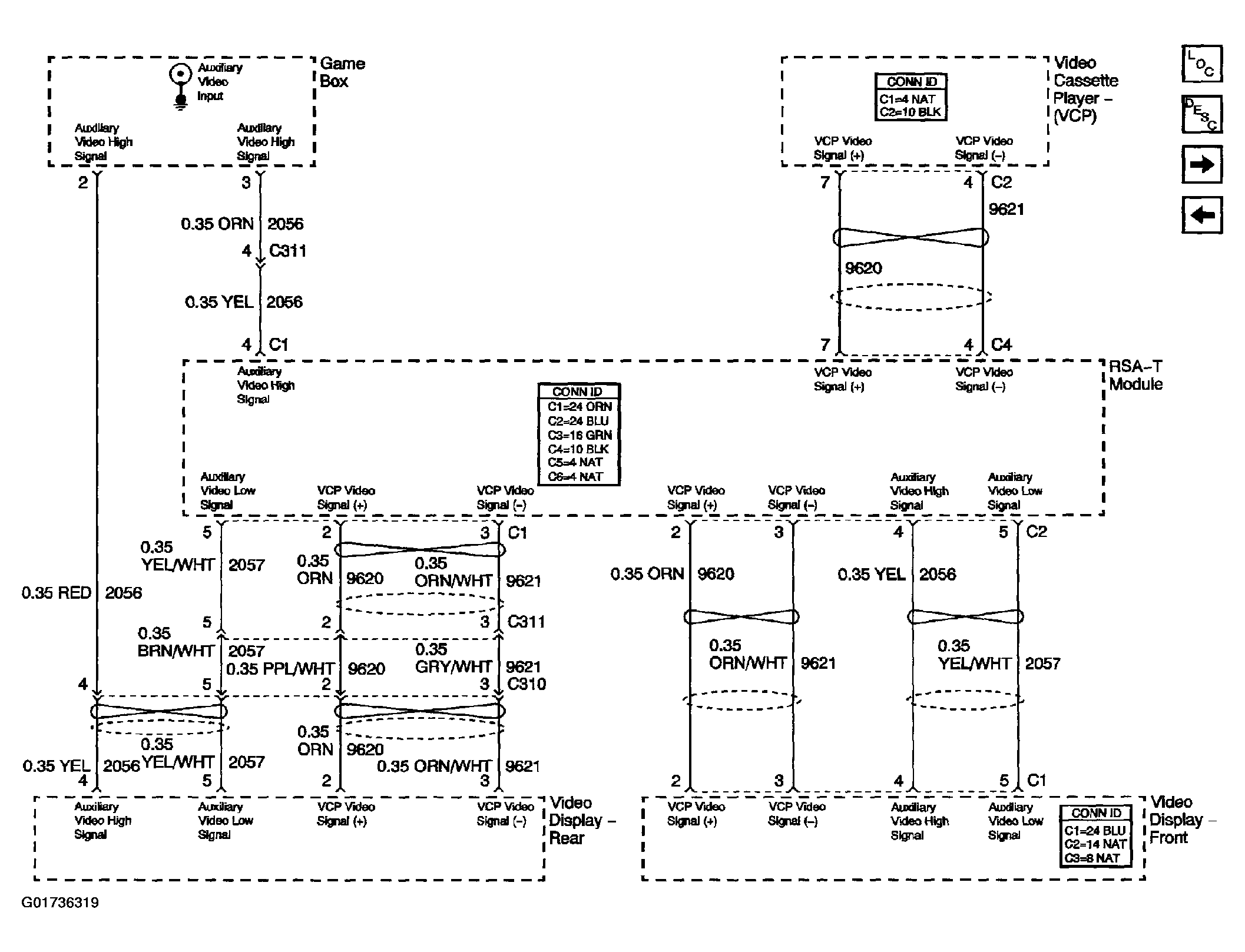

Fig 3: Video System Schematics (Video Circuits)

Courtesy of GENERAL MOTORS CORP.

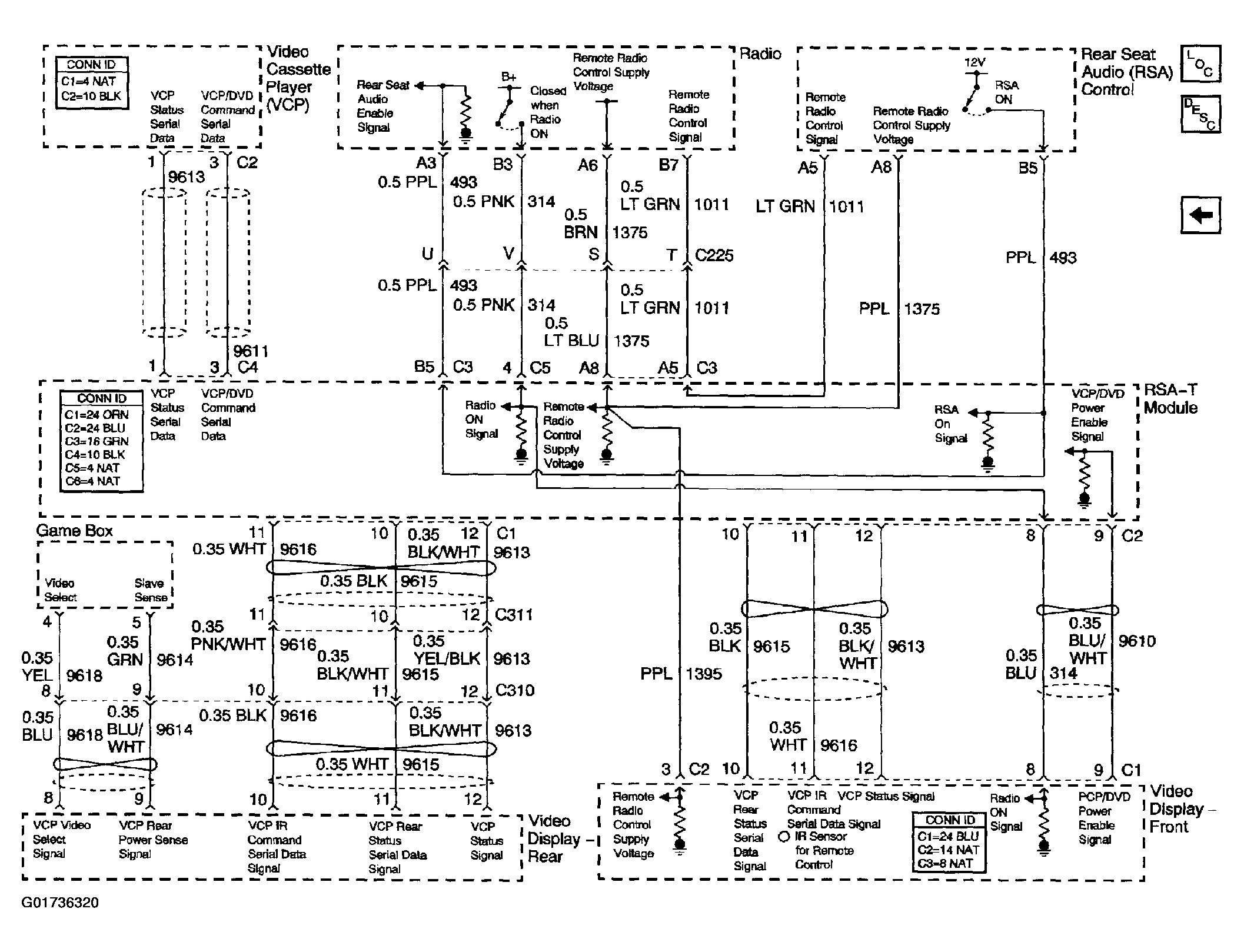

Fig 4: Video System Schematics (Sensor & Control Circuits)

Courtesy of GENERAL MOTORS CORP.
