Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the license lamp bulbs to the license lamp sockets.

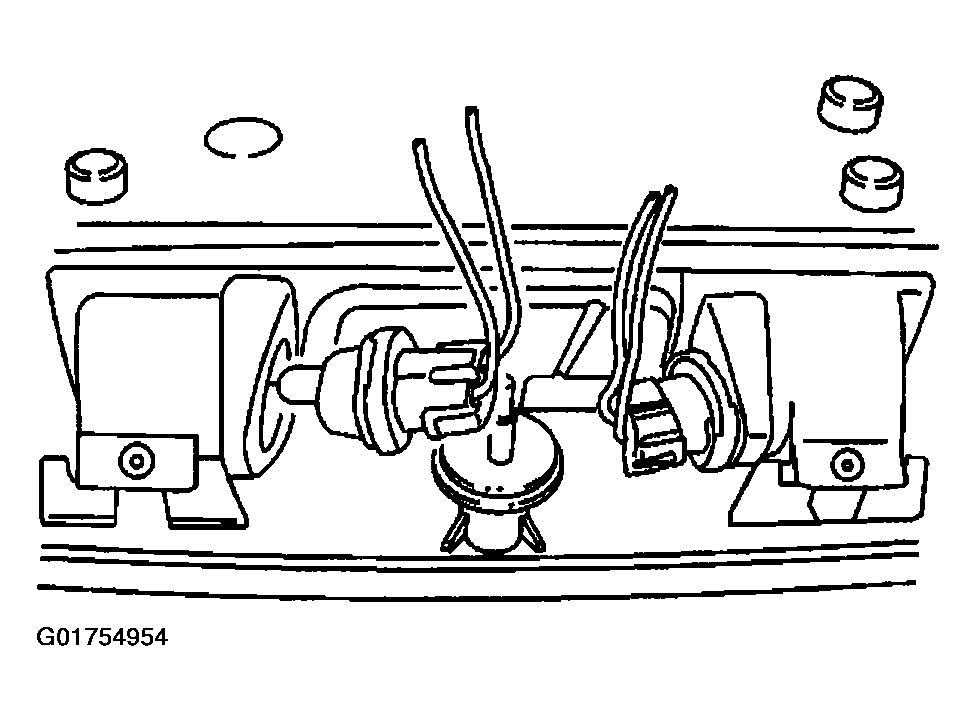

  2. Fig 1: Identifying License Lamp Bulb
    G01754954Courtesy of GENERAL MOTORS CORP.
  3. Install the license lamp sockets to the license lamp on the lid applique, then rotate clockwise to secure.
  4. Install the rear compartment lid applique. Refer to Compartment Lid Applique Replacement - Rear .
