Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front fog lamp assembly to the front bumper impact bar.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  2. Install the front fog lamp nuts to the front bumper impact bar. Tighten the nuts to 10 N.m (89 in lbs).

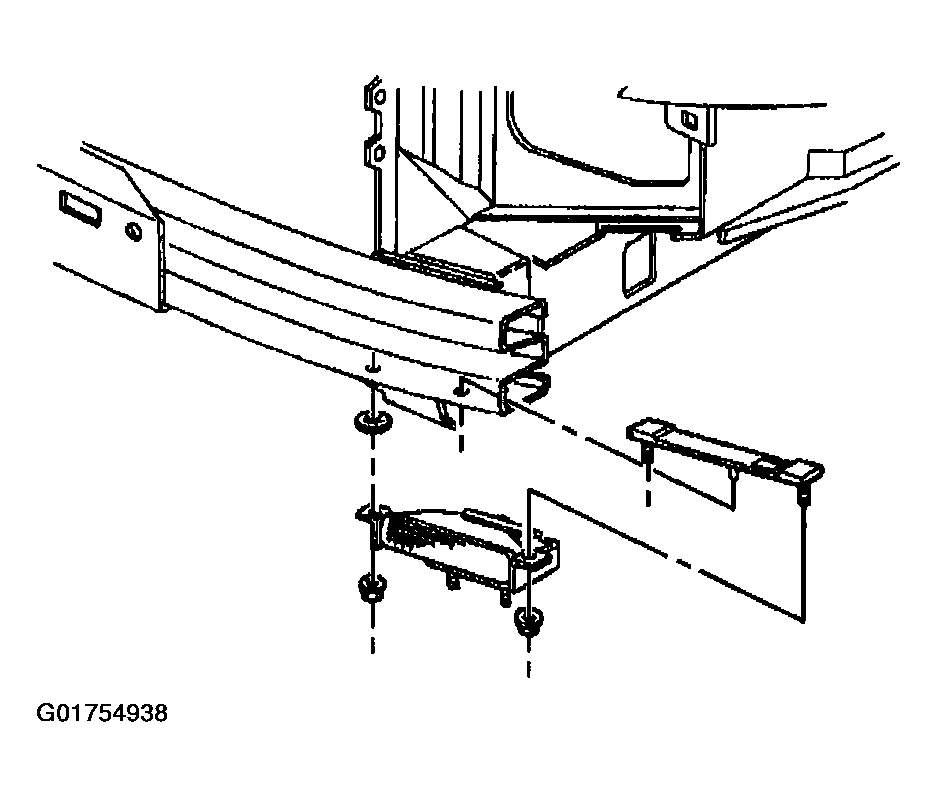

    Fig 1: Identifying Front Fog Lamp Assembly
    G01754938Courtesy of GENERAL MOTORS CORP.
  3. Install the fog lamp bulb/socket to the fog lamp by rotating clockwise.

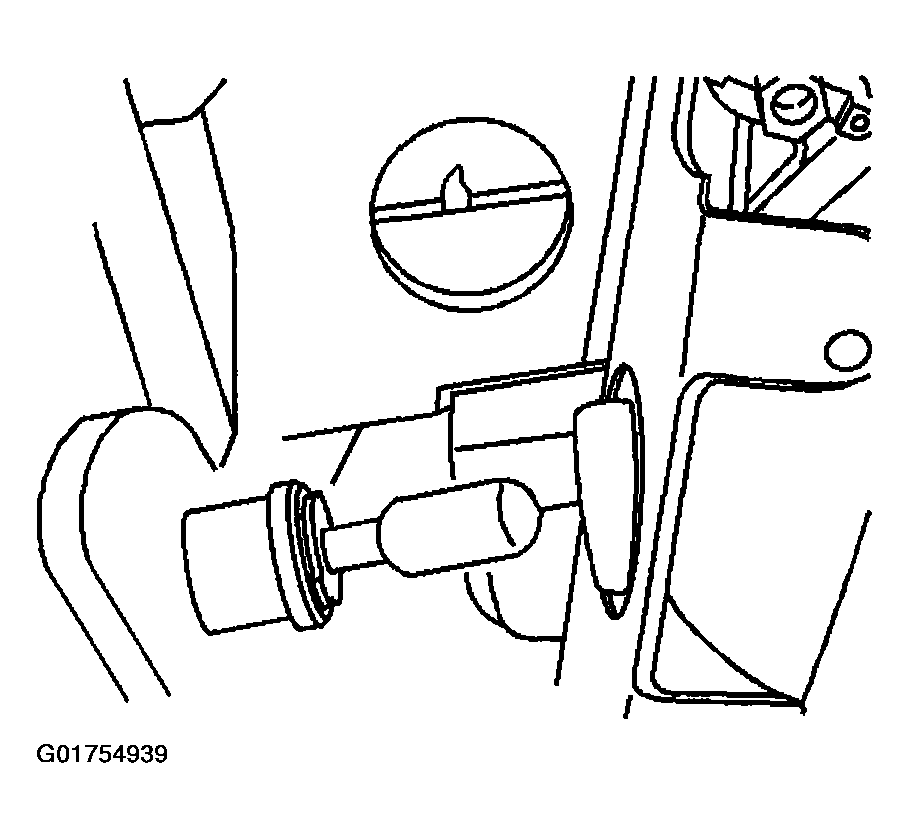

    Fig 2: Installing Fog Lamp Bulb/Socket From Fog Lamp
    G01754939Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the front fog lamp assembly.

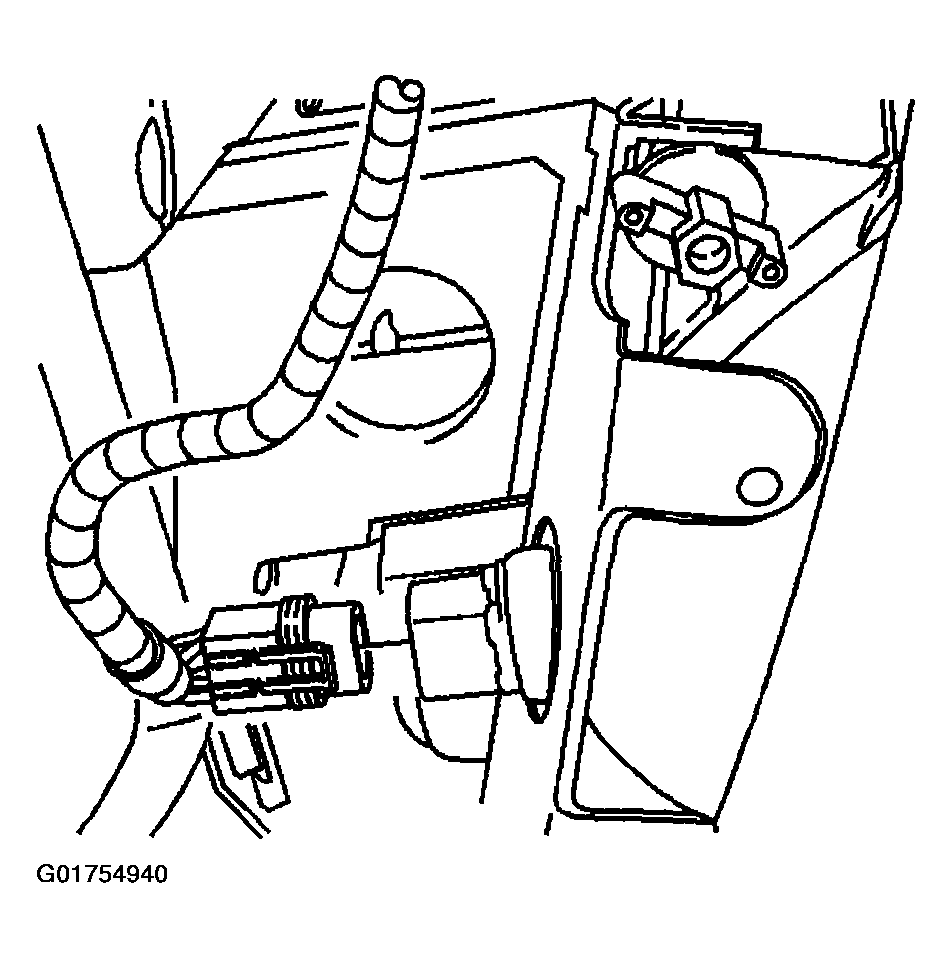

    5. Fig 3: Identifying Front Fog Lamp Assembly Electrical Connector
    G01754940Courtesy of GENERAL MOTORS CORP.
  5. Install the front bumper fascia deflector. Refer to Front Bumper Fascia Deflector Replacement - Side .
  6. Check and adjust the front fog lamp aim as necessary. Refer to Fog Lamp Aiming Procedure .
