Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Squeeze together the front and rear edges of the dome lamp housing to release the retainers along the sides of the housing. Pull the housing down and away from the dome lamp base plate.

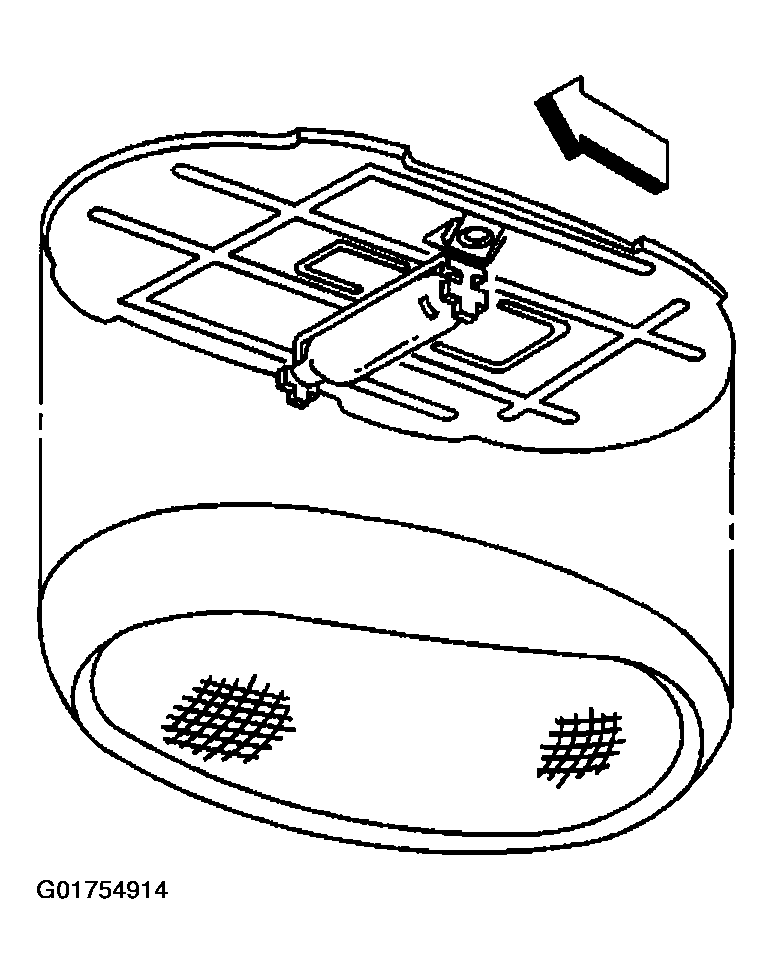

    2. Fig 1: Identifying Dome Lamp Housing
    G01754914Courtesy of GENERAL MOTORS CORP.
  2. Drill out the rivets from the lamp base plate.
  3. Remove the bulb from the dome lamp socket.
  4. Remove the dome lamp base plate from the roof.
  5. Disconnect the electrical connector from the dome lamp base plate.
    Fig 2: Identifying Dome Lamp Electrical Connector
    G01754915Courtesy of GENERAL MOTORS CORP.
