Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the bulb to the door courtesy lamp socket.

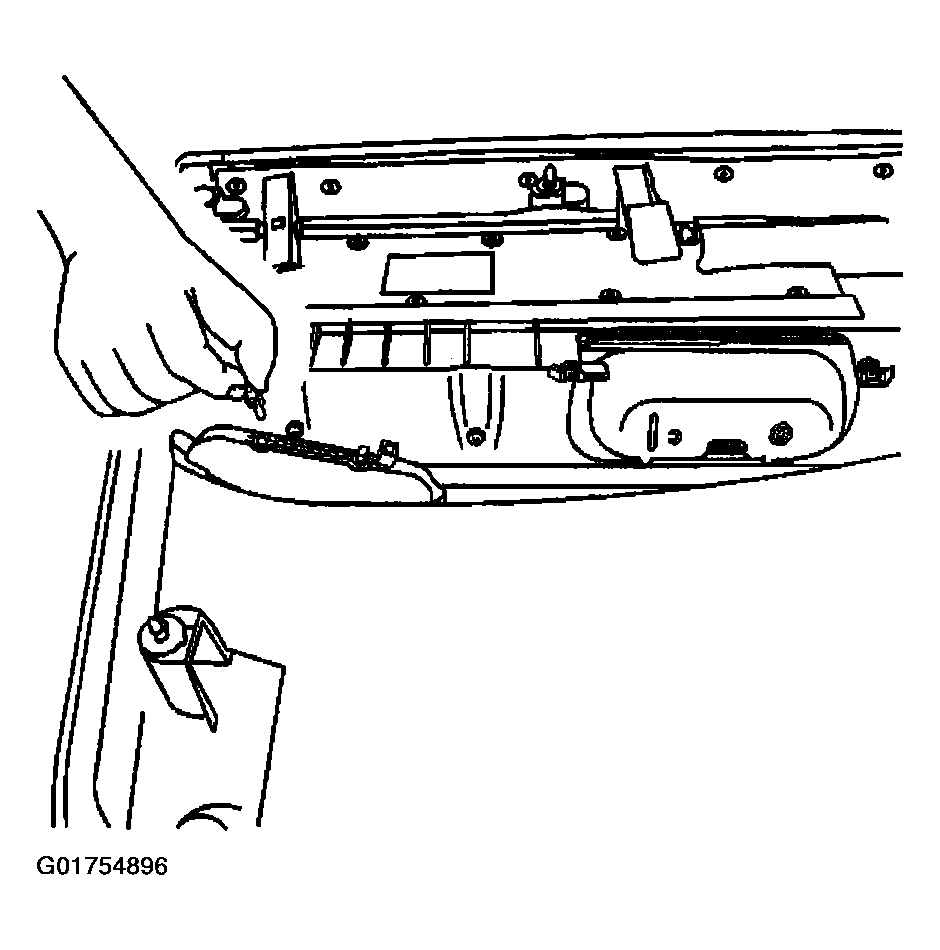

Fig 1: Identifying Installing Courtesy Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
Install the lamp socket to the courtesy lamp housing, then rotate the socket clockwise.

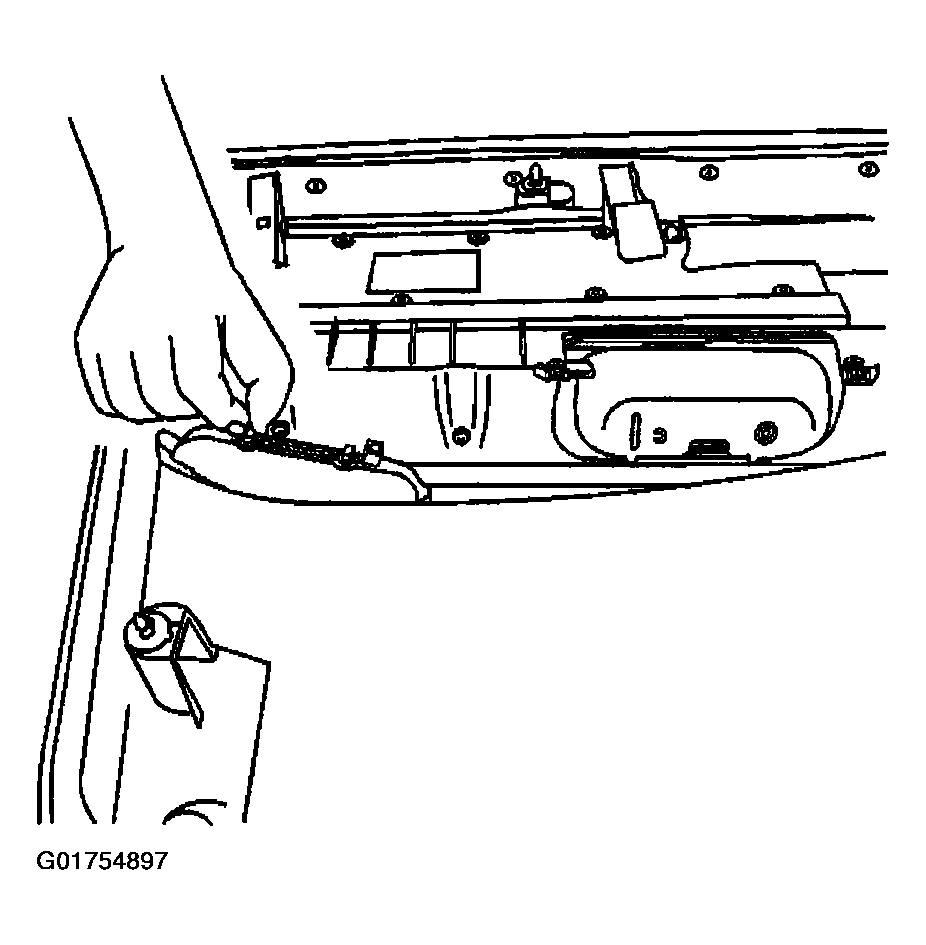

Fig 2: Installing Courtesy Lamp Socket
Courtesy of GENERAL MOTORS CORP.
Position the courtesy lamp to the front door trim panel.

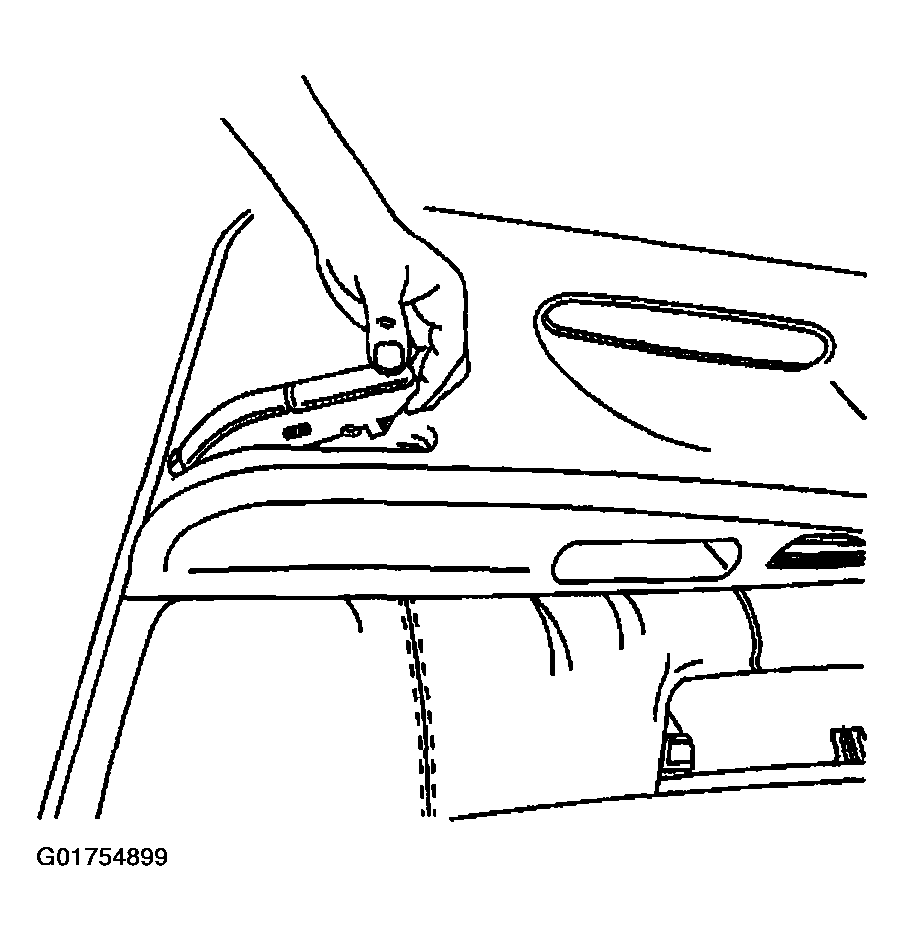

Fig 3: Installing Courtesy Lamp To Front Door Trim Panel
Courtesy of GENERAL MOTORS CORP.
Align the rear edge of the courtesy lamp retainer tab to the front door trim panel.

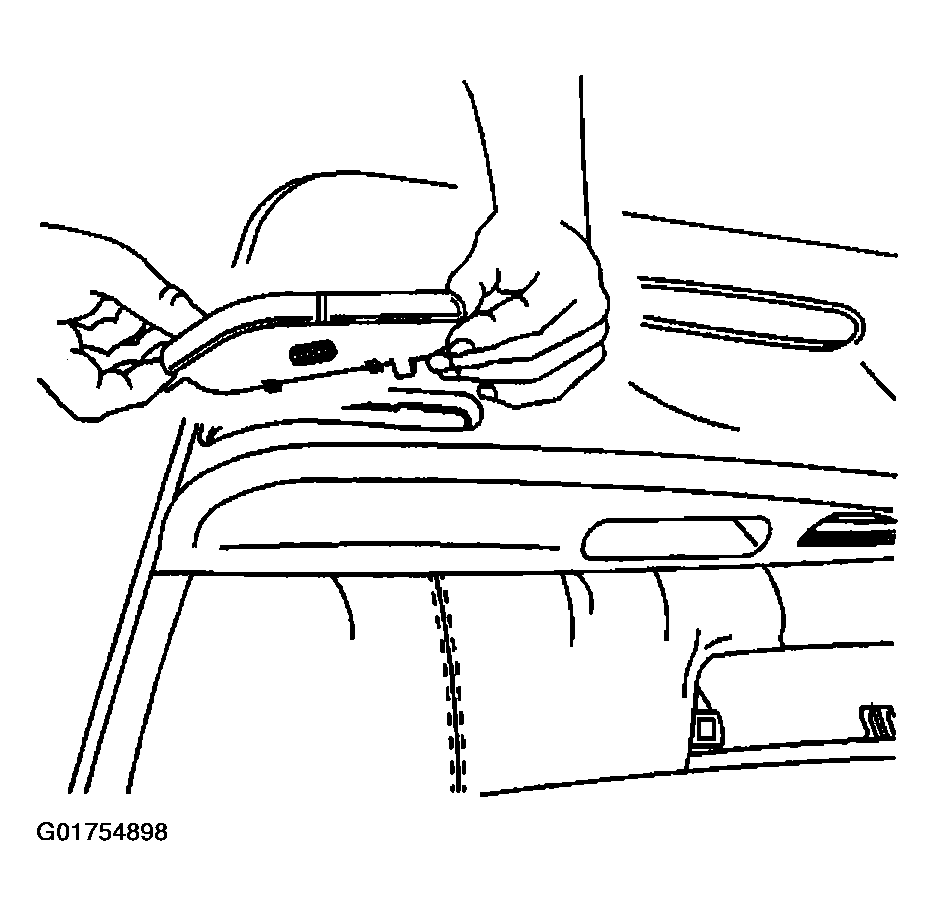

Fig 4: Aligning Rear Edge Of Courtesy Lamp Forward Retainer Tab
Courtesy of GENERAL MOTORS CORP.
Install the courtesy lamp to the front door trim panel pressing the forward edge into place until the retainer is fully seated.

Fig 5: Seating Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector from the courtesy lamp.

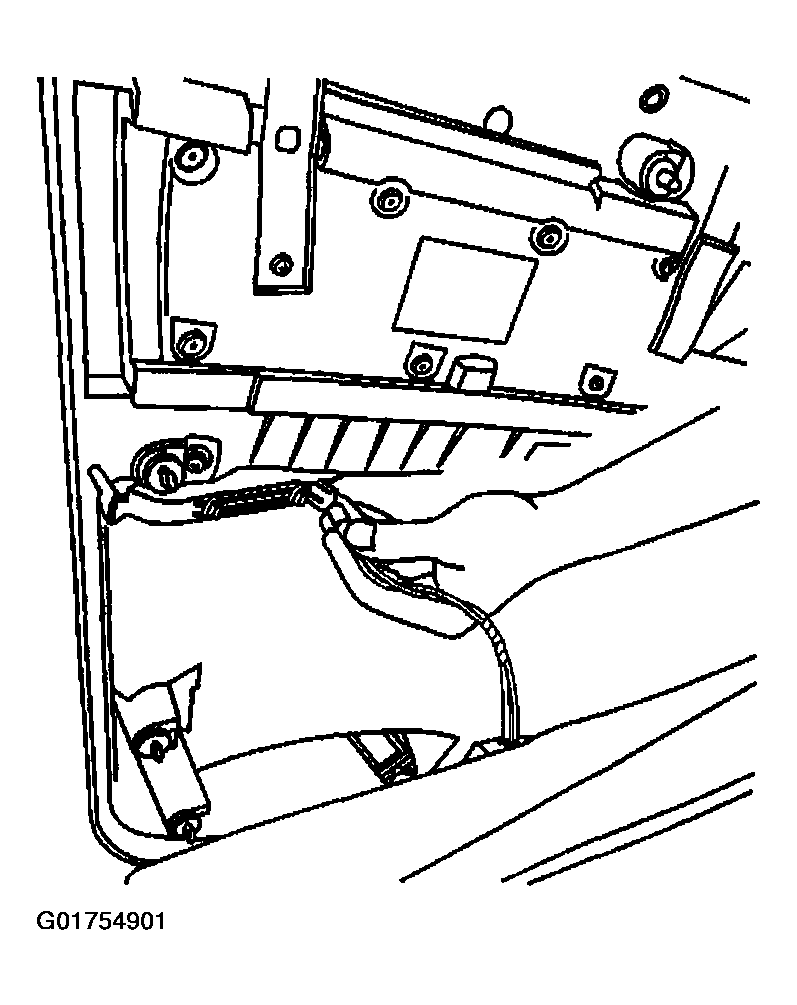

Fig 6: Identifying Courtesy Lamp Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Install the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR in Doors.
