Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screw (2) from the stepwell lamp lens.
  2. Remove the stepwell lamp lens (3) from the stepwell mat.
  3. Remove the bulb (1) from the socket.

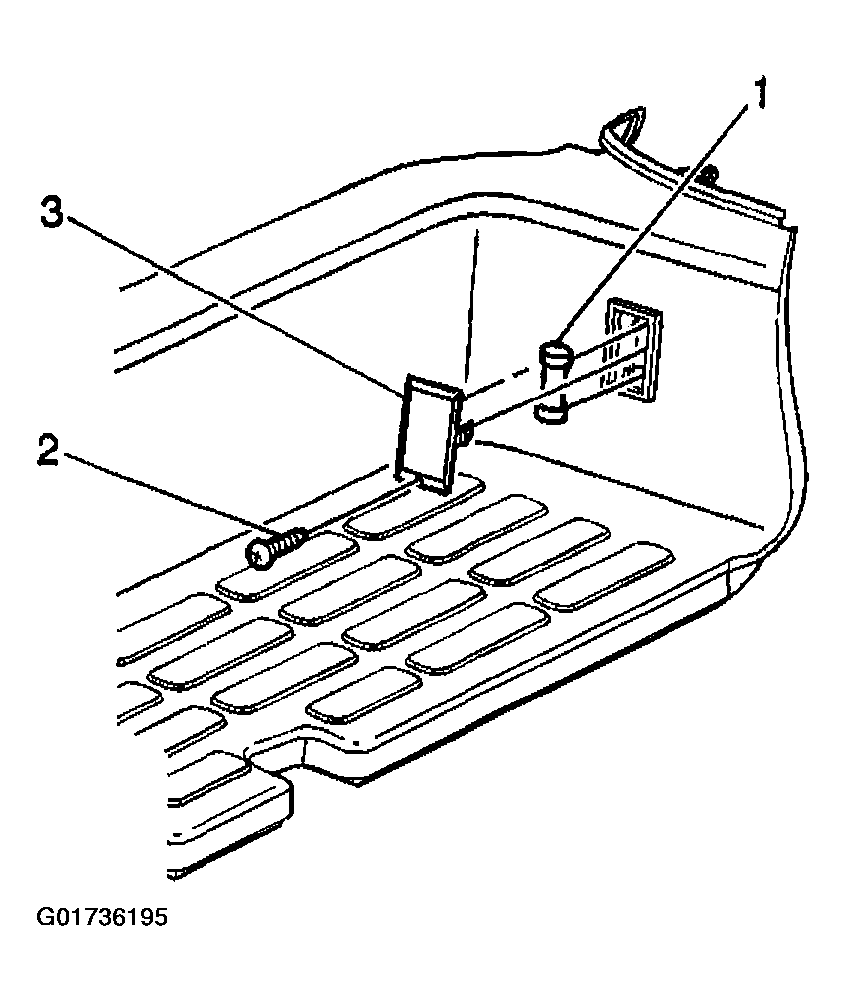

    Fig 1: Removing Screw, Stepwell Lamp Lens & Bulb
    G01736195Courtesy of GENERAL MOTORS CORP.
