Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws holding the retaining ring to the headlamp housing assembly.
  2. Remove the retaining ring from the headlamp housing assembly.
  3. Remove the headlamp capsule (1) from the headlamp housing assembly.
  4. Remove the bulb (4) and socket from the rubber grommet in the headlamp capsule.
  5. Push in on the side of the bulb (4) and turn the bulb 1/4 turn counterclockwise.
  6. Remove the bulb (4) from the socket.

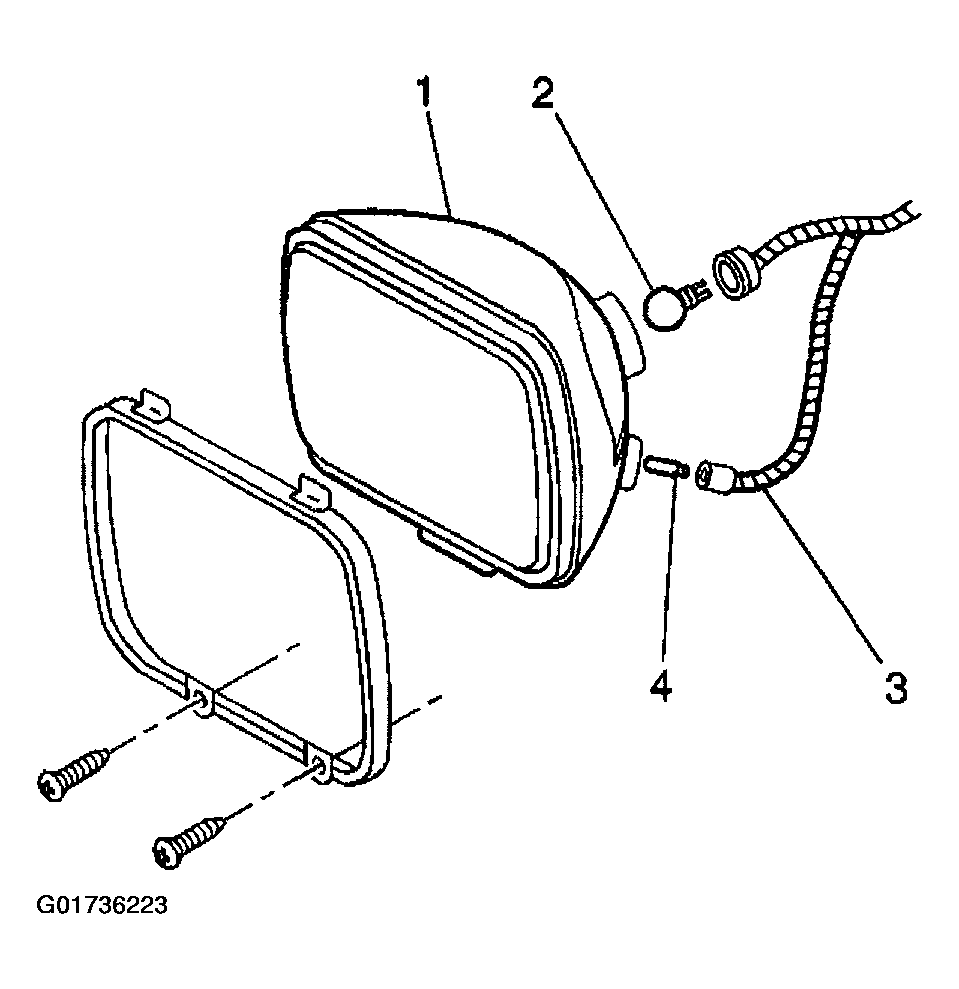

    Fig 1: Removing Headlamp Housing Assembly Components
    G01736223Courtesy of GENERAL MOTORS CORP.
