Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the bulb (1) into the socket.
  2. Connect the bulb socket (1) into the center high mounted stop lamp lens.
  3. Install the center high mounted stop lamp lens (2) to the center high mounted stop lamp applique.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners to avoid damage to parts and systems.
  4. Install the center high mounted stop lamp lens retaining screws (3) to the center high mounted stop lamp applique.

    Tighten

    Tighten the center high mounted stop lamp lens screws to 1.5 N.m (13 in lbs).

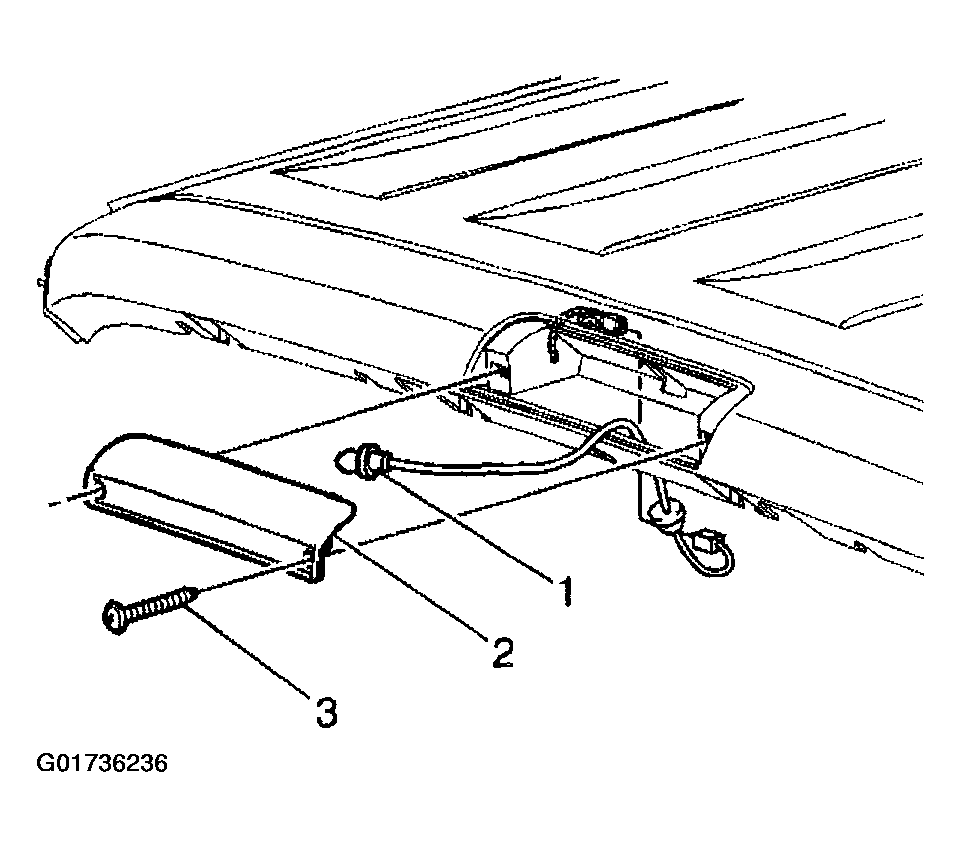

Fig 1: Installing High Mounted Stop Lamp Components
G01736236Courtesy of GENERAL MOTORS CORP.
