Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster trim plate.TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PAN
  2. Disconnect the electrical connector from the headlamp switch.
  3. Remove the headlamp switch from the instrument panel cluster trim plate by releasing the retainers on the instrument panel cluster trim plate from the headlamp switch.
  4. Remove the headlamp switch from the vehicle.

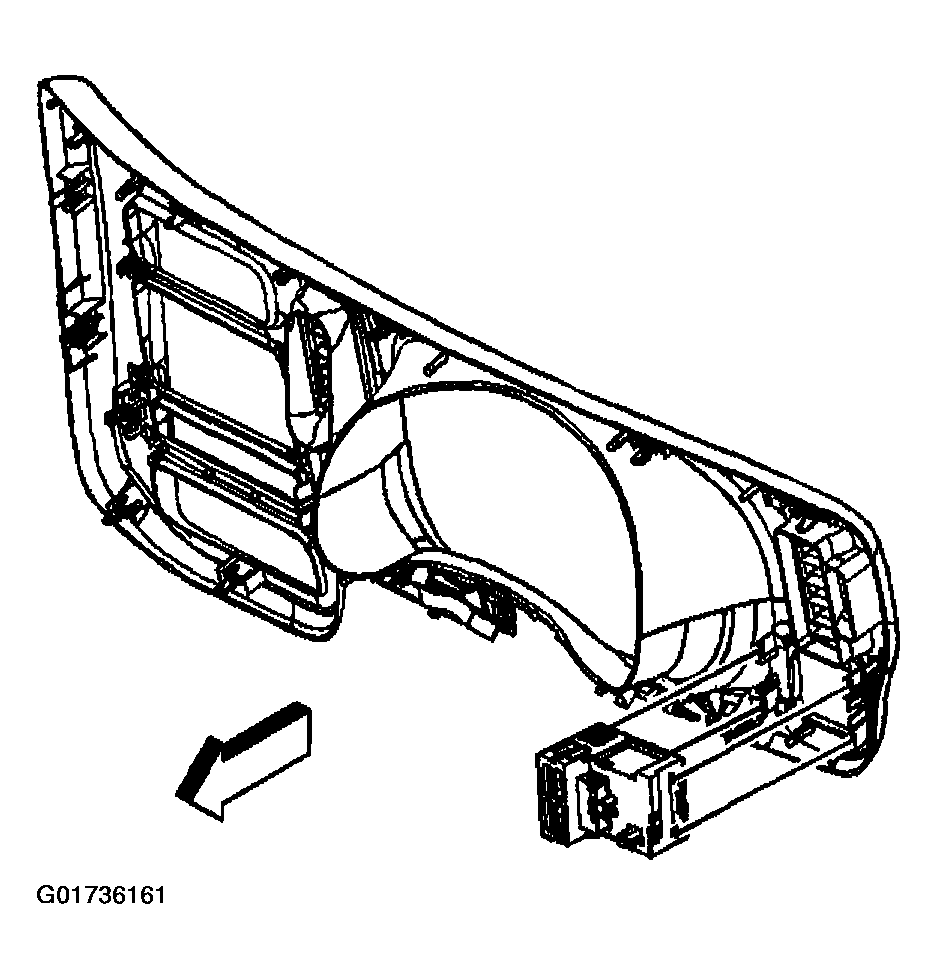

    Fig 1: Removing Headlamp Switch
    G01736161Courtesy of GENERAL MOTORS CORP.
