Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn OFF the headlamp switch.
  2. Remove the grille. Refer to GRILLE REPLACEMENT .
  3. Remove the bolts (5) that retain the capsule headlamp to the radiator support.

    Do not move the adjustment screws.

  4. Disconnect the electrical connector (1) from the headlamp assembly.
  5. Remove the capsule headlamp (4) from the vehicle.

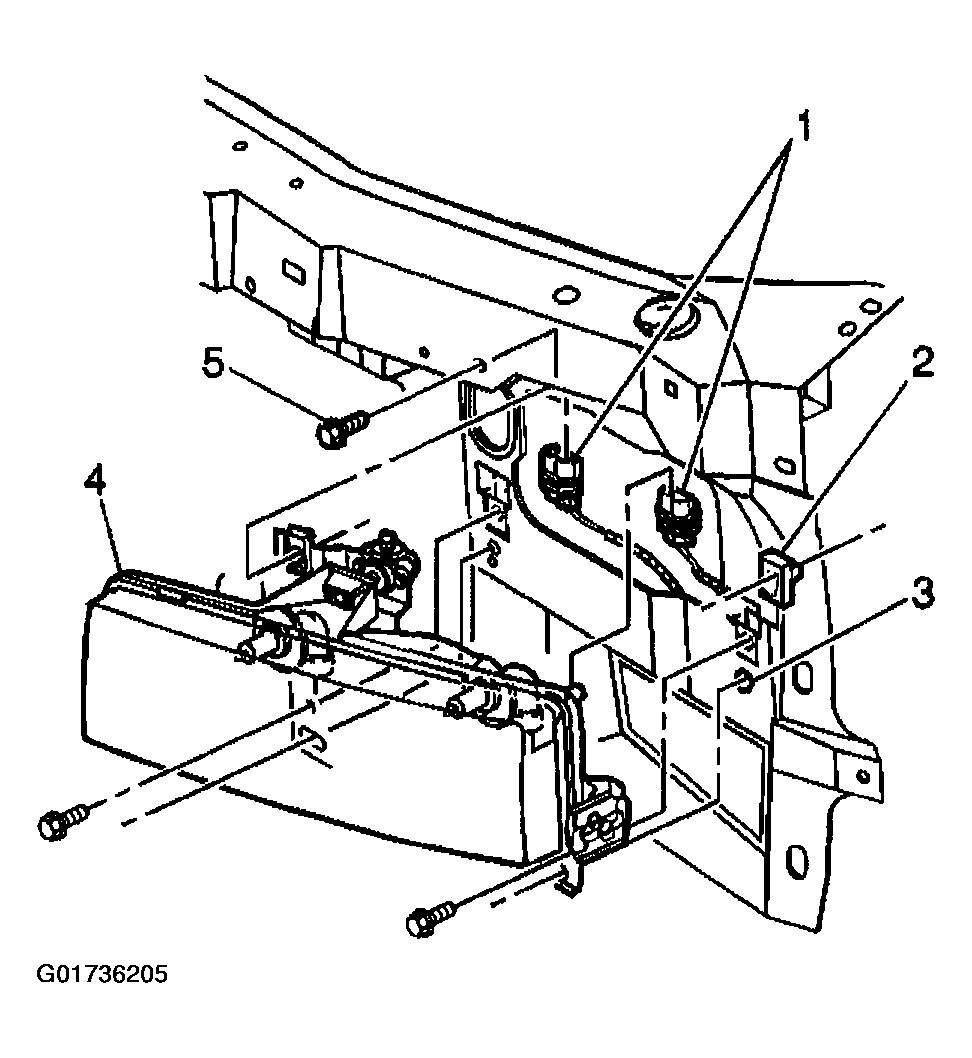

    Fig 1: Removing Bolts & Capsule Headlamp
    G01736205Courtesy of GENERAL MOTORS CORP.
