Fill Limiter Vent Valve: Installation

WARNING: This page is about a different car, the 2003 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Install the FLVV gasket (1) onto the fuel tank. See Fig 1 .
Apply a light coat of motor oil to the sealing edge of the FLVV. See Fig 2 .
Install the FLVV into the fuel tank while keeping the correct alignment for the hose connections.
Place the FLVV cover onto the FLVV and rotate the cover clockwise until the lock tab is in position and engaged.
Install fuel tank. See FUEL TANK .

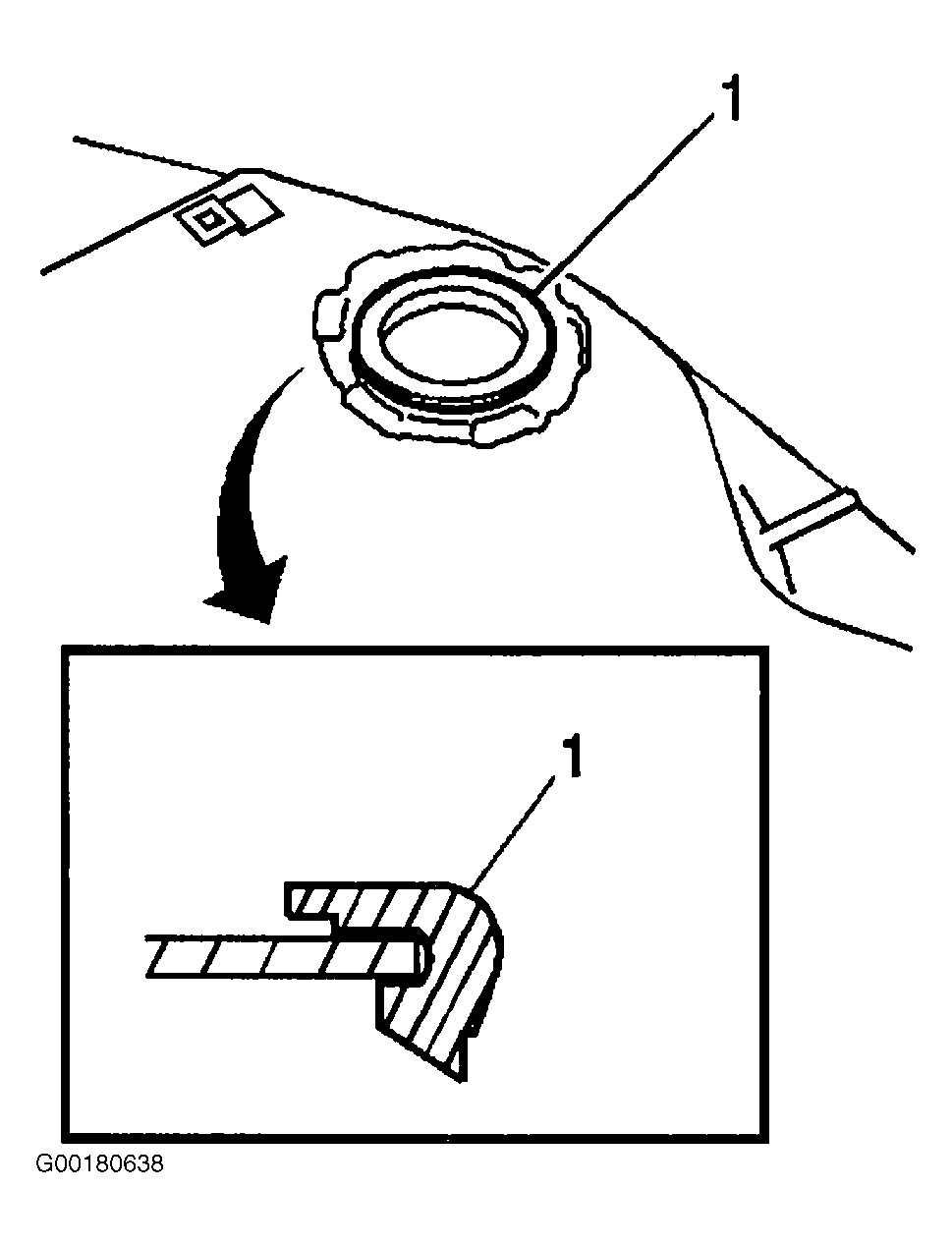

Fig 1: Installing FLVV Gasket On Fuel Tank

Courtesy of GENERAL MOTORS CORP.

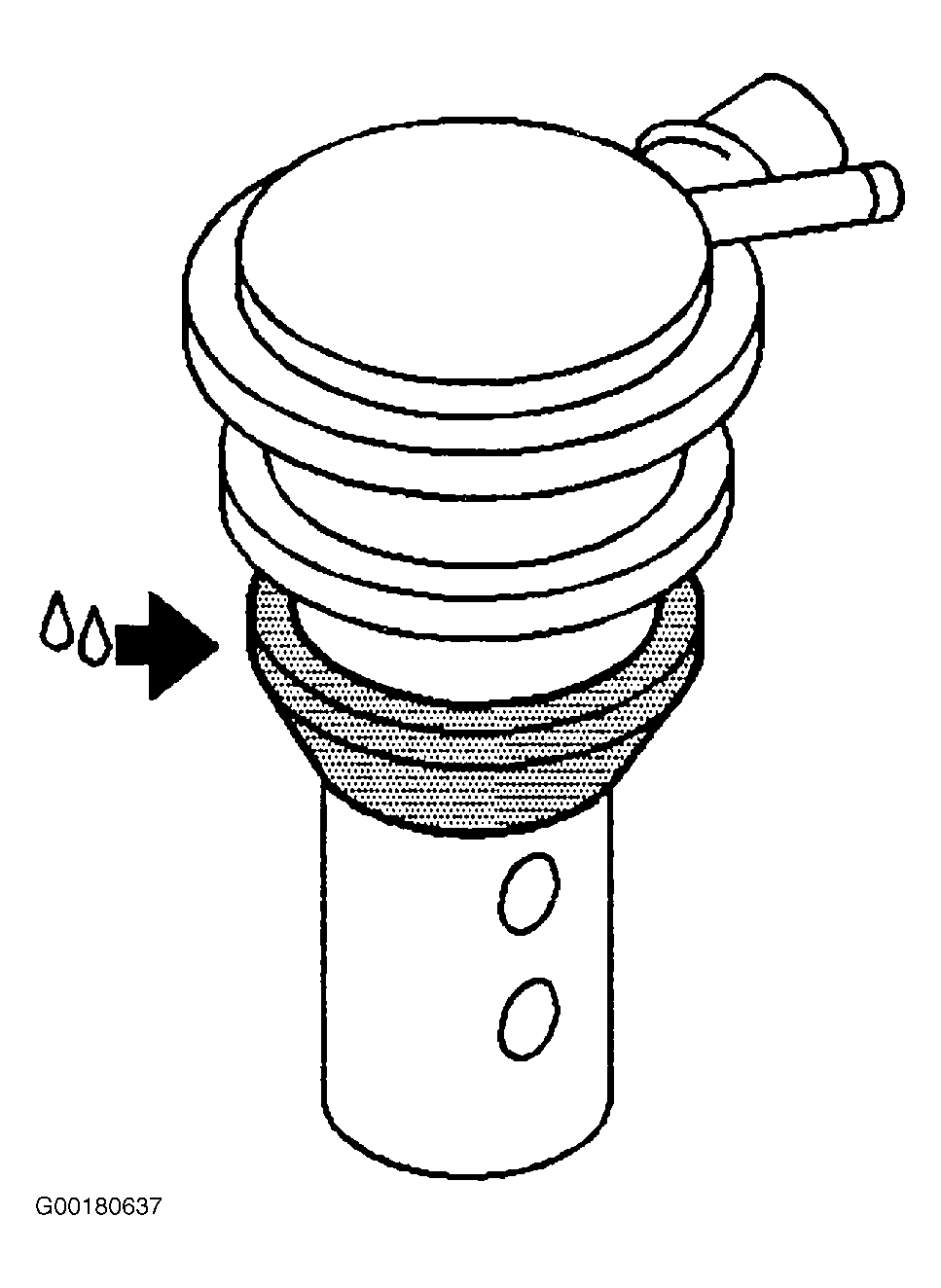

Fig 2: Identifying FLVV Sealing Edge

Courtesy of GENERAL MOTORS CORP.
