Schematic and Routing Diagrams

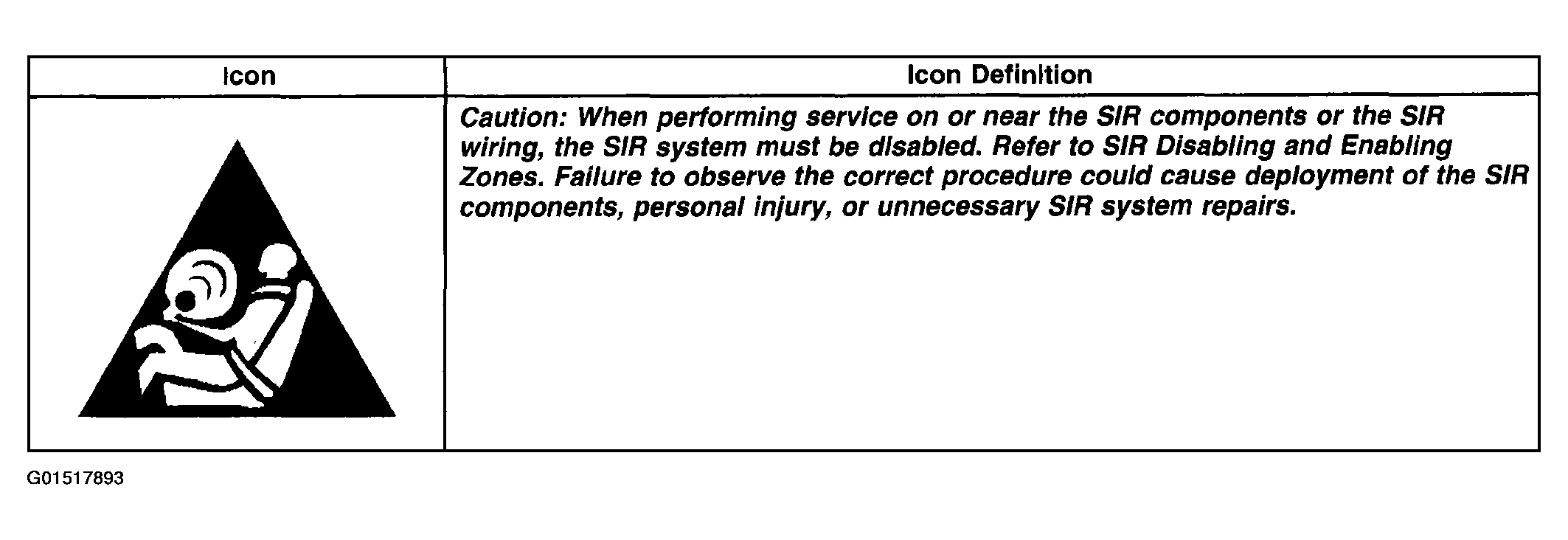

Fig 1: Horns Schematics Icons Definition

G01517893

Courtesy of GENERAL MOTORS CORP.

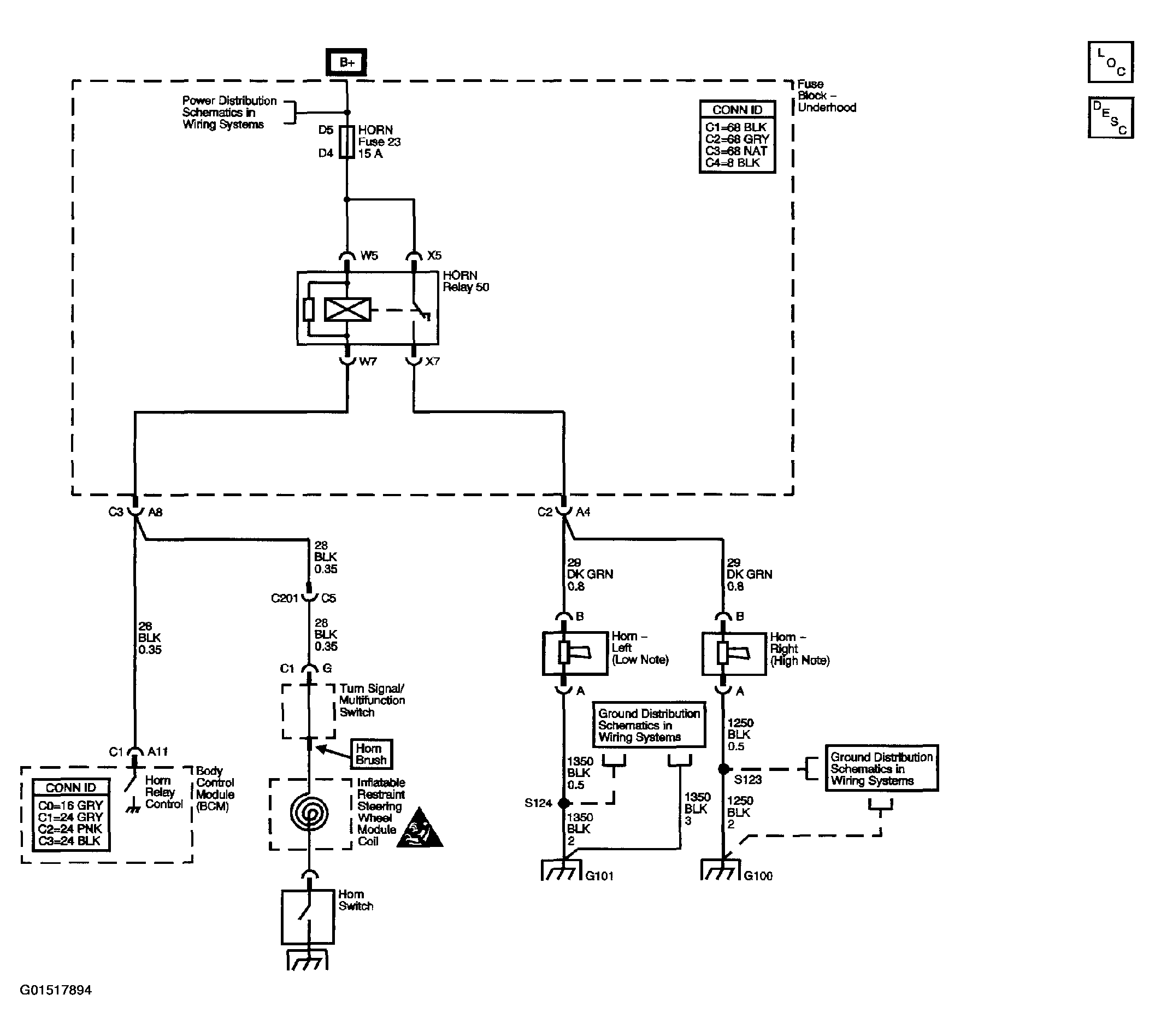

Fig 2: Horns Schematic

G01517894

Courtesy of GENERAL MOTORS CORP.
