Removal Procedure

  1. Remove the right and/or left headlamp. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (AZTEK) or HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT (RENDEZVOUS) .
  2. Disconnect the horn electrical connector.
    Fig 1: Horn Removal Procedure (1 Of 3)
    G01517909Courtesy of GENERAL MOTORS CORP.
  3. Remove the horn bracket bolt.

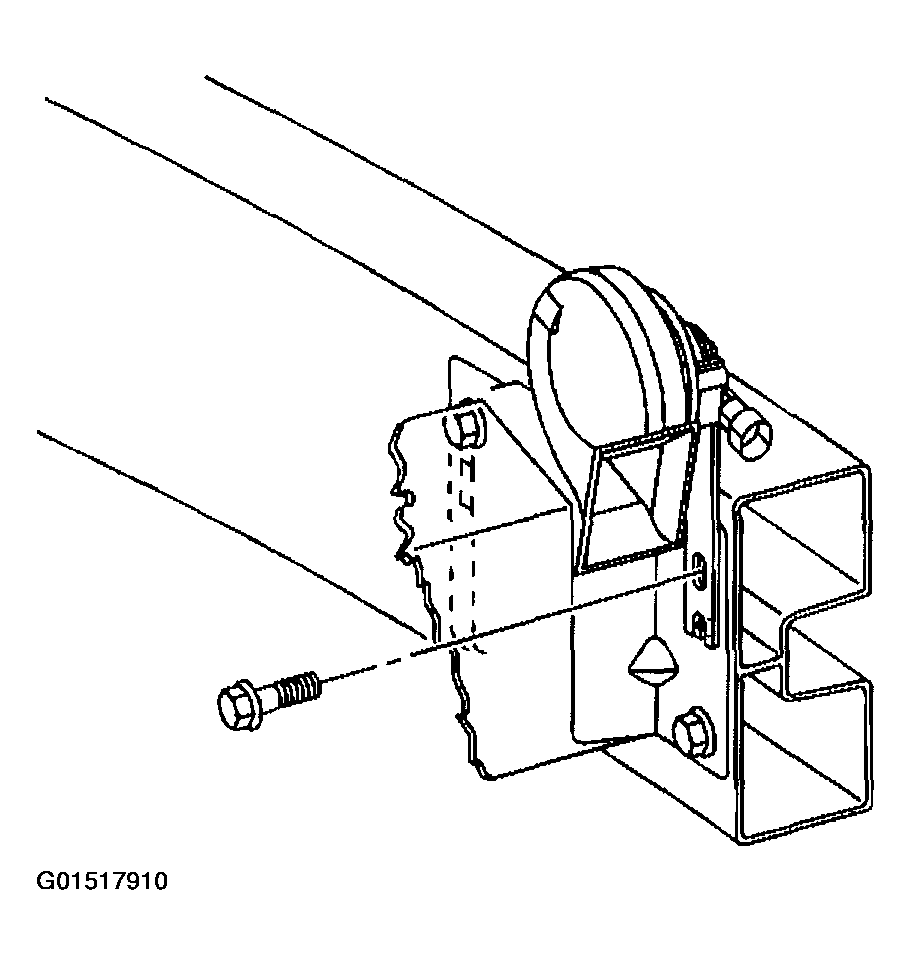

    Fig 2: Horn Removal Procedure (2 Of 3)
    G01517910Courtesy of GENERAL MOTORS CORP.
  4. Remove the horn from the front bumper impact bar.

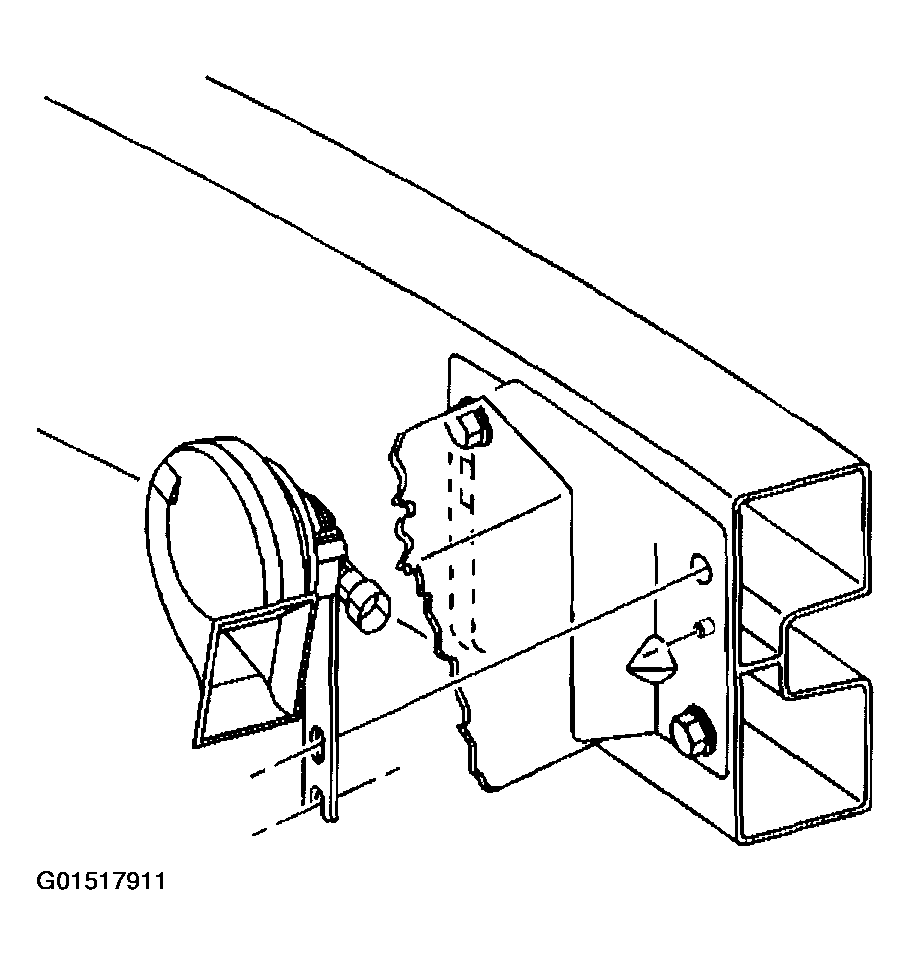

    Fig 3: Horn Removal Procedure (3 Of 3)
    G01517911Courtesy of GENERAL MOTORS CORP.
