Horns Connector End Views

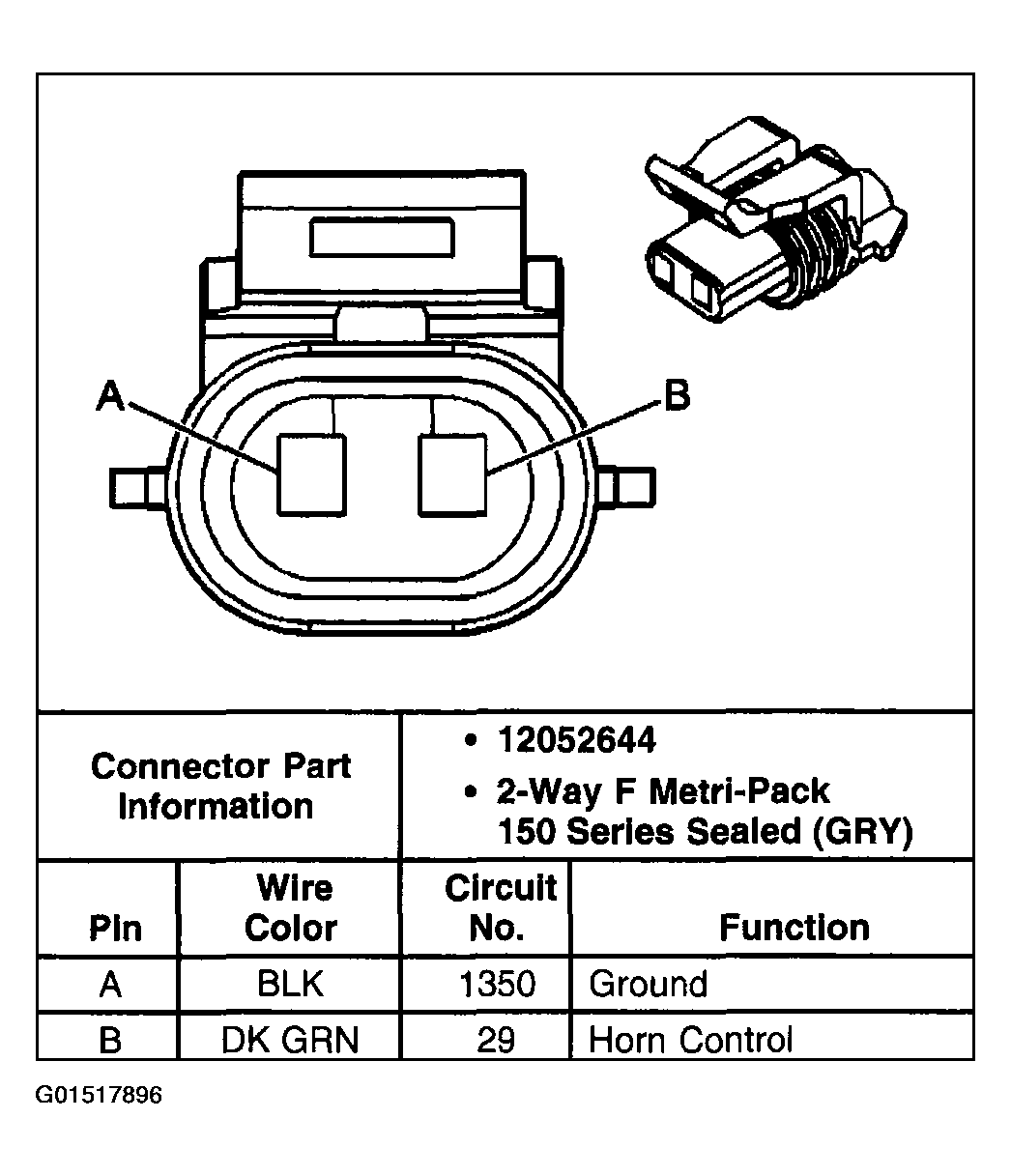

Fig 1: Identifying Left Horn (Low Note) Harness Connector
G01517896Courtesy of GENERAL MOTORS CORP.

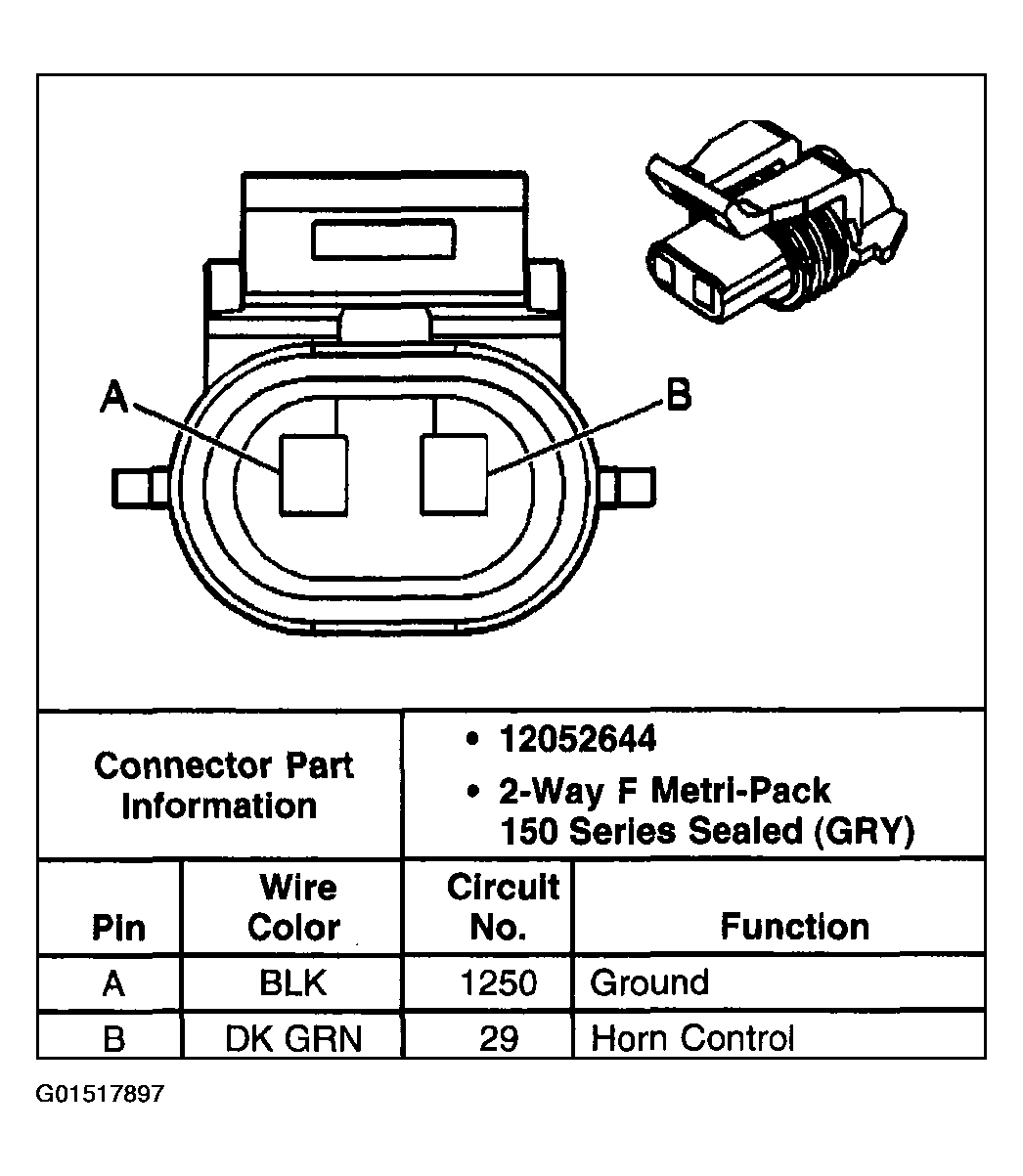

Fig 2: Identifying Right Horn (High Note) Harness Connector
G01517897Courtesy of GENERAL MOTORS CORP.
