Fuel Level Specifications

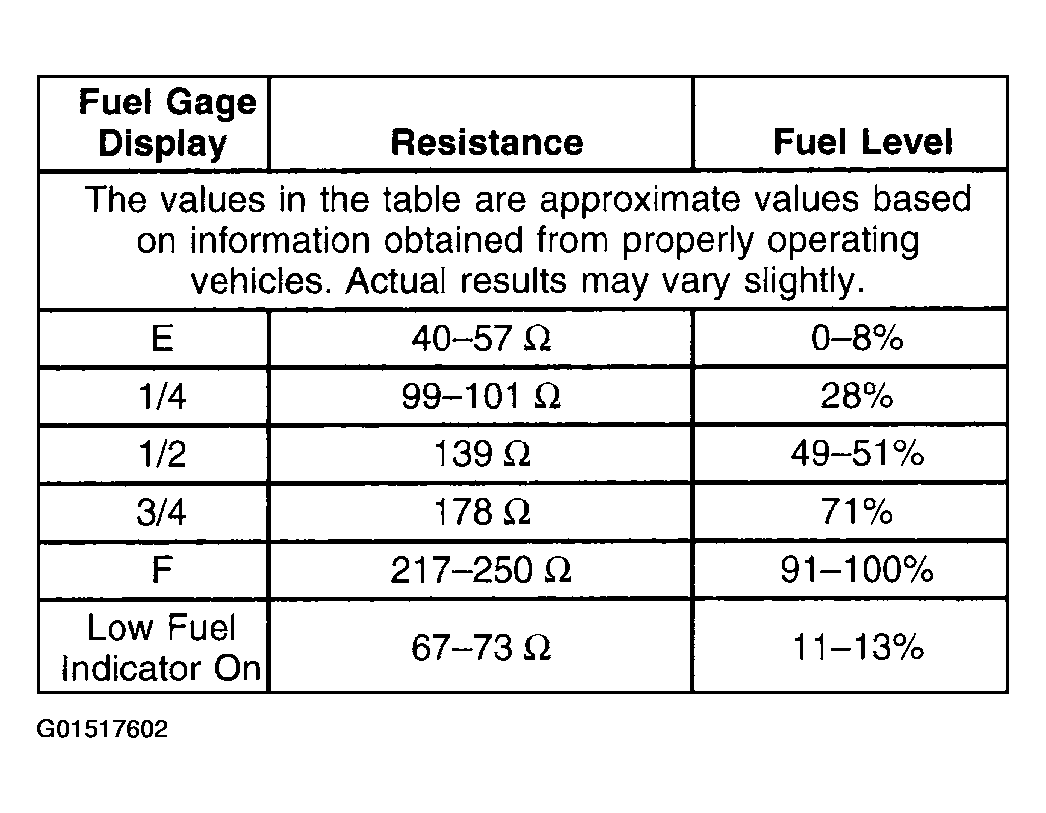

Fig 1: Fuel Gauge Level Resistance Specifications
G01517602Courtesy of GENERAL MOTORS CORP.
