Removal Procedure

  1. Position the rear door window in the full down position.
  2. Remove the trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (RENDEZVOUS)  .
  3. Remove the water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  4. Remove the outer belt sealing strip. Refer to SEALING STRIP REPLACEMENT - REAR DOOR WINDOW BELT OUTER  .
  5. Remove the window weatherstrip. Refer to WEATHERSTRIP REPLACEMENT - REAR DOOR WINDOW  .
  6. Loosen the bolts (1) to the clevis clamps.
  7. Remove the window from the outside of the rear door.

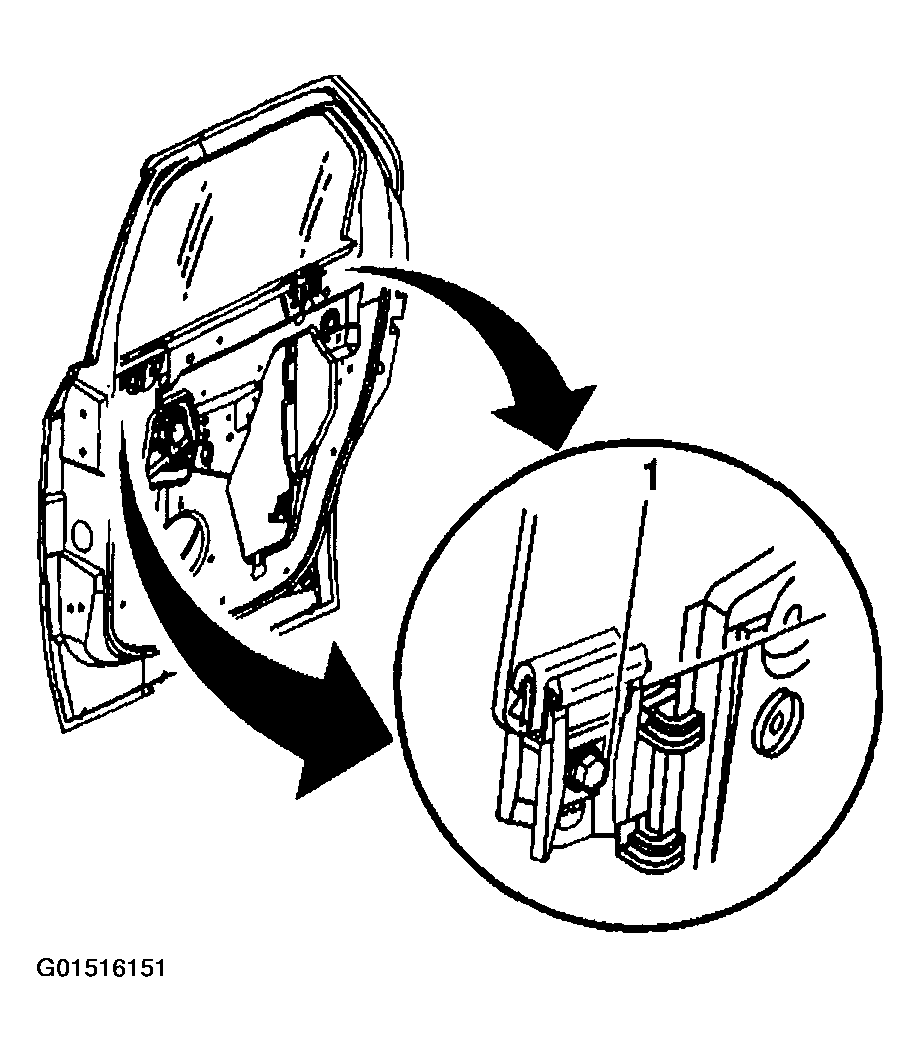

    Fig 1: Removing Rear Door Window (1 Of 2)
    G01516151Courtesy of GENERAL MOTORS CORP.

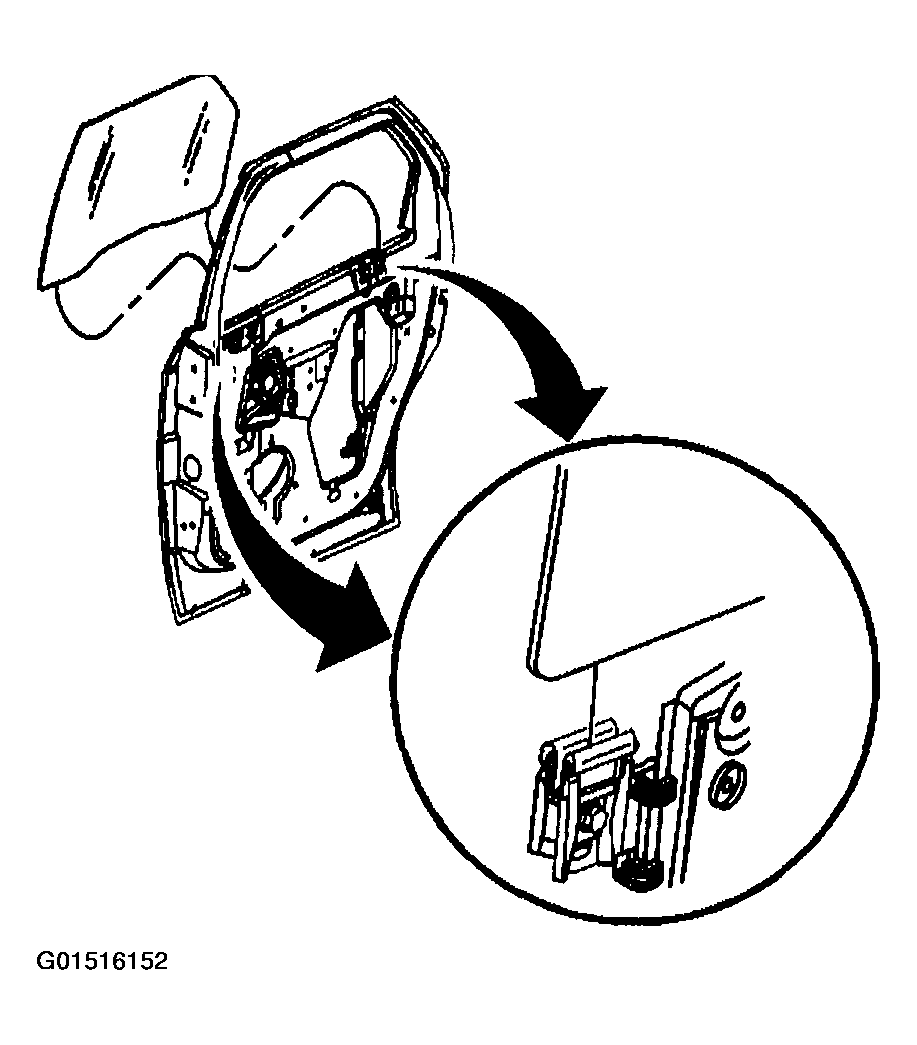

    Fig 2: Removing Rear Door Window (2 Of 2)
    G01516152Courtesy of GENERAL MOTORS CORP.
