Home >> Pontiac >> 2003 >> Aztek FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Power Mirror Switch Replacement (Aztek) >> Removal Procedure

Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  2. Disconnect the electrical connector from the power mirror switch.

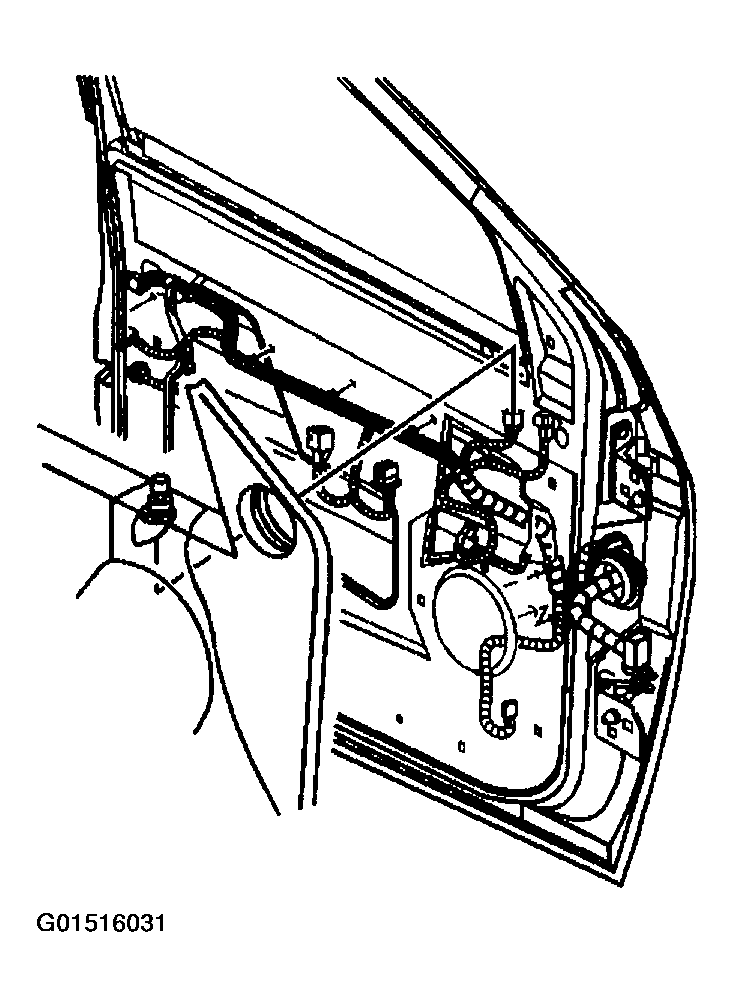

    Fig 1: Removing Power Mirror Switch (Aztek - 1 Of 2)
    G01516031Courtesy of GENERAL MOTORS CORP.
  3. Remove the power mirror switch from the front door inner trim panel.

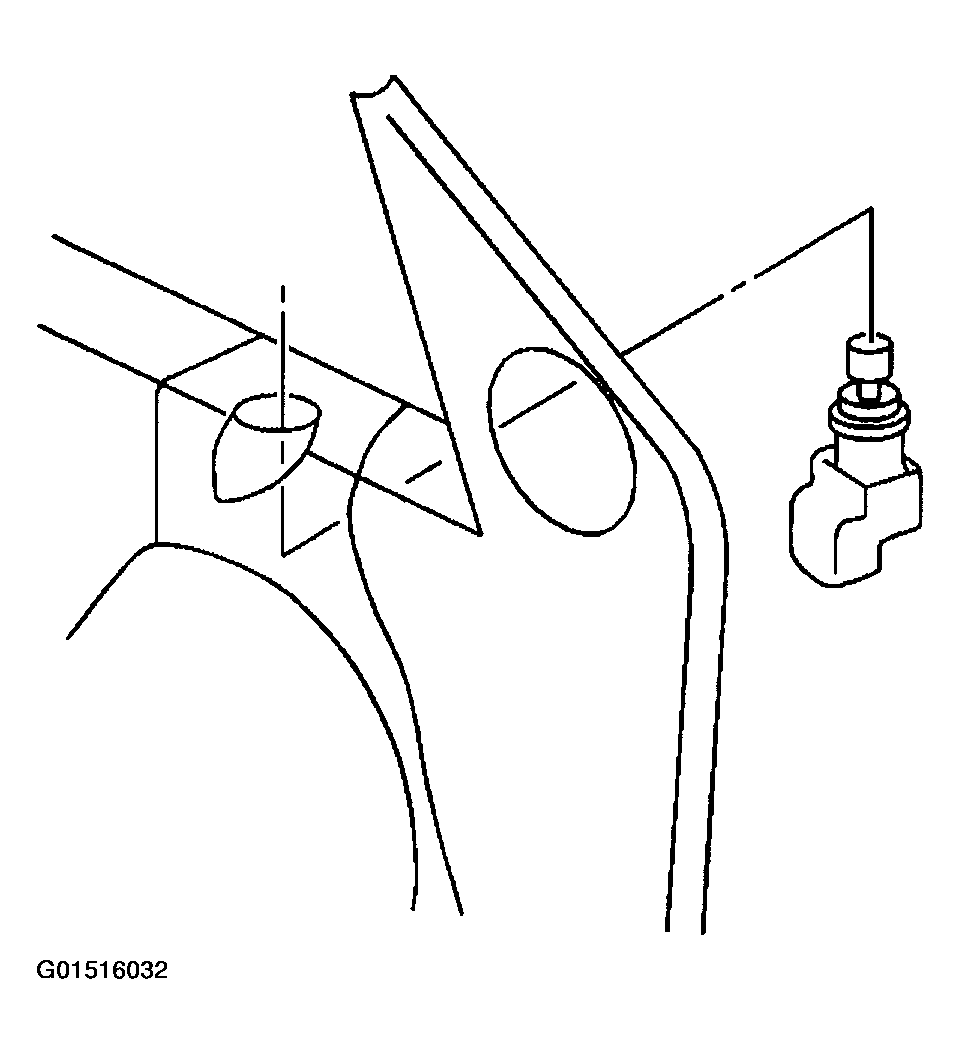

    Fig 2: Removing Power Mirror Switch (Aztek - 2 Of 2)
    G01516032Courtesy of GENERAL MOTORS CORP.
