Home >> Pontiac >> 2003 >> Aztek FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Door System, Mirror System & Window System >> Repair Instructions >> Mirror Replacement - Power >> Removal Procedure

Removal Procedure

  1. Remove the front door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (AZTEK)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (RENDEZVOUS)  .
  2. Remove the nuts from the outside rearview mirror.
  3. Disconnect the electrical connector from the outside rearview mirror.
  4. Remove the outside rearview mirror from the front door.

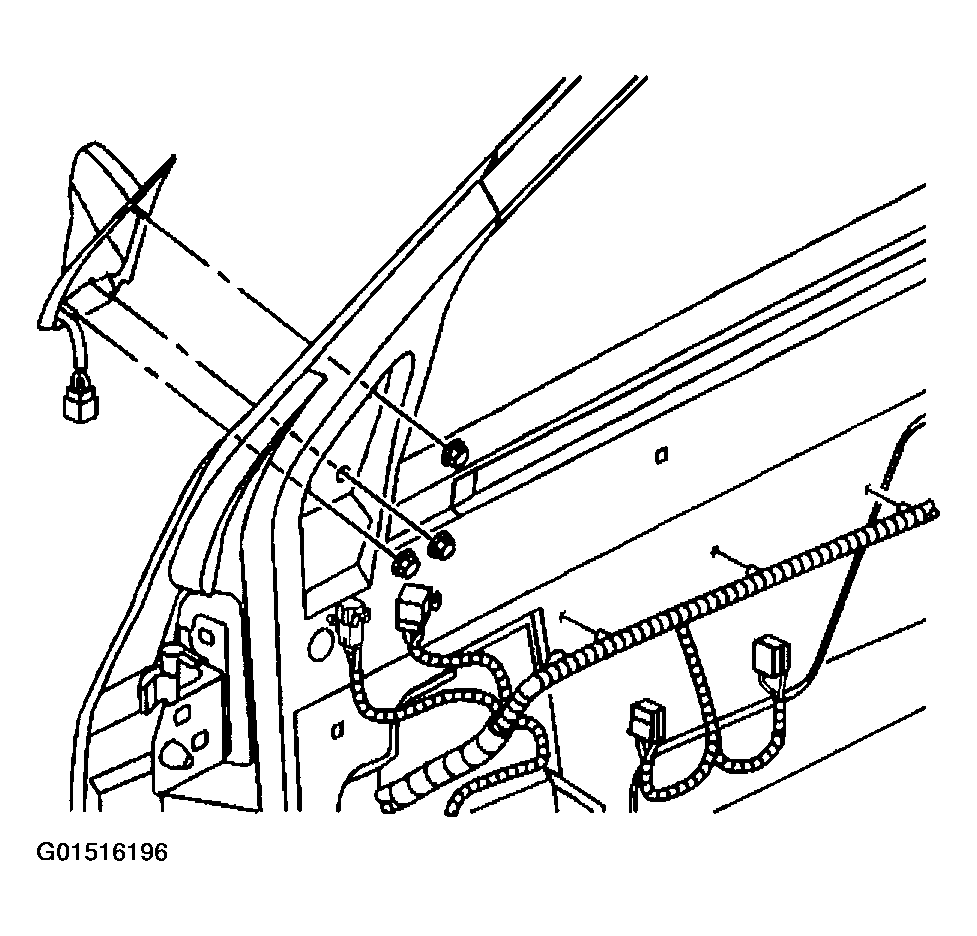

    Fig 1: Removing Power Mirror
    G01516196Courtesy of GENERAL MOTORS CORP.
