Scan Tool Data List
Scan Tool Data List

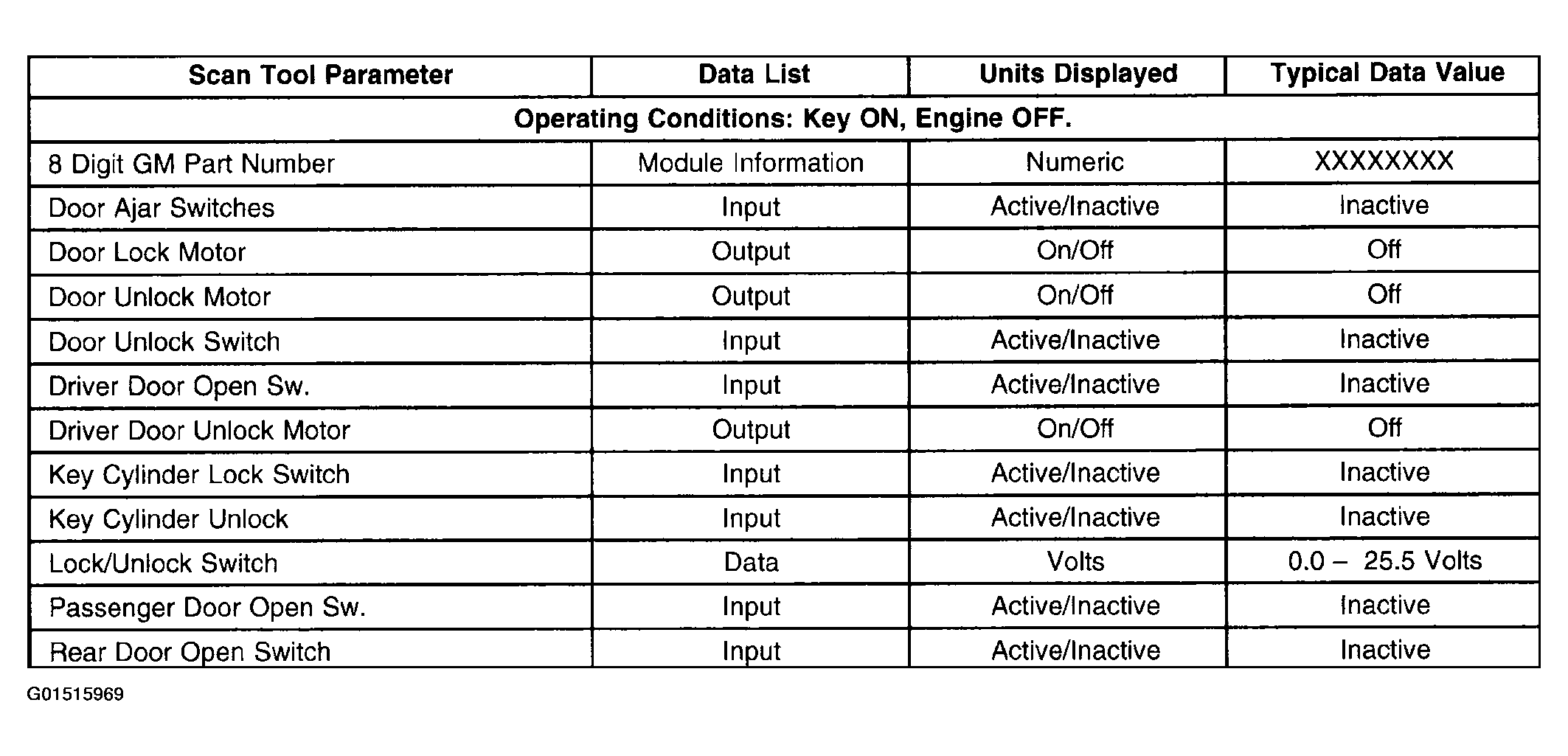

Fig 1: Body Control Module Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.
Fig 2: Memory Seat Module Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
