Removal Procedure

  1. Remove the outer trim panel from the front seat cushion. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - FRONT SEAT  .
  2. Use a small flat-bladed tool to release the retainers which hold the power seat switch to the outer trim panel.

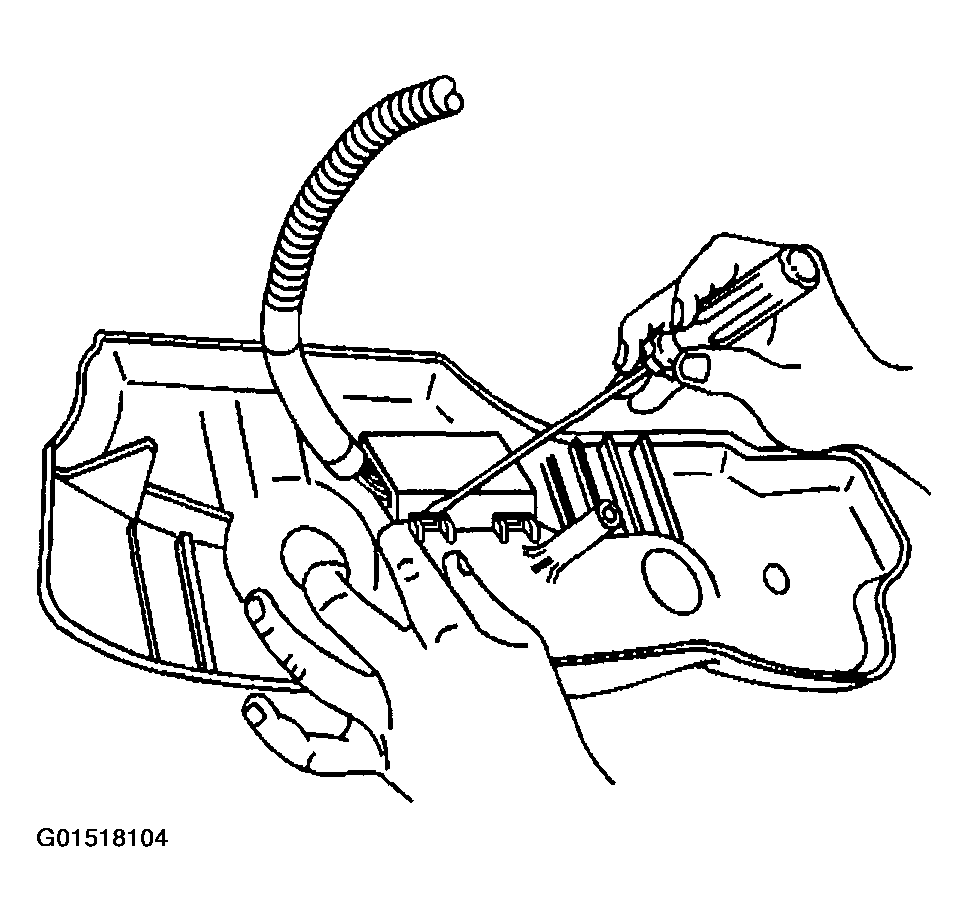

    Fig 1: Removing Power Seat Switch Retainer
    G01518104Courtesy of GENERAL MOTORS CORP.
  3. Remove the power seat switch from the outer trim panel.

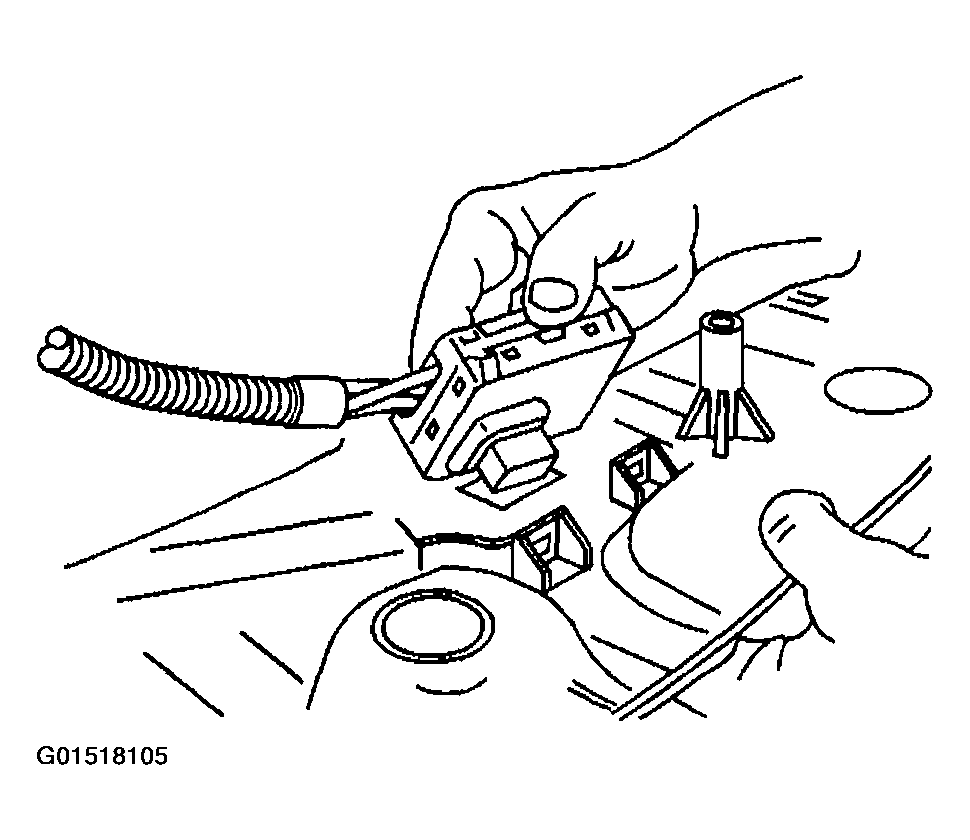

    Fig 2: Removing Power Seat Switch From Outer Trim Panel
    G01518105Courtesy of GENERAL MOTORS CORP.
  4. Remove the power seat switch harness from the front seat support.

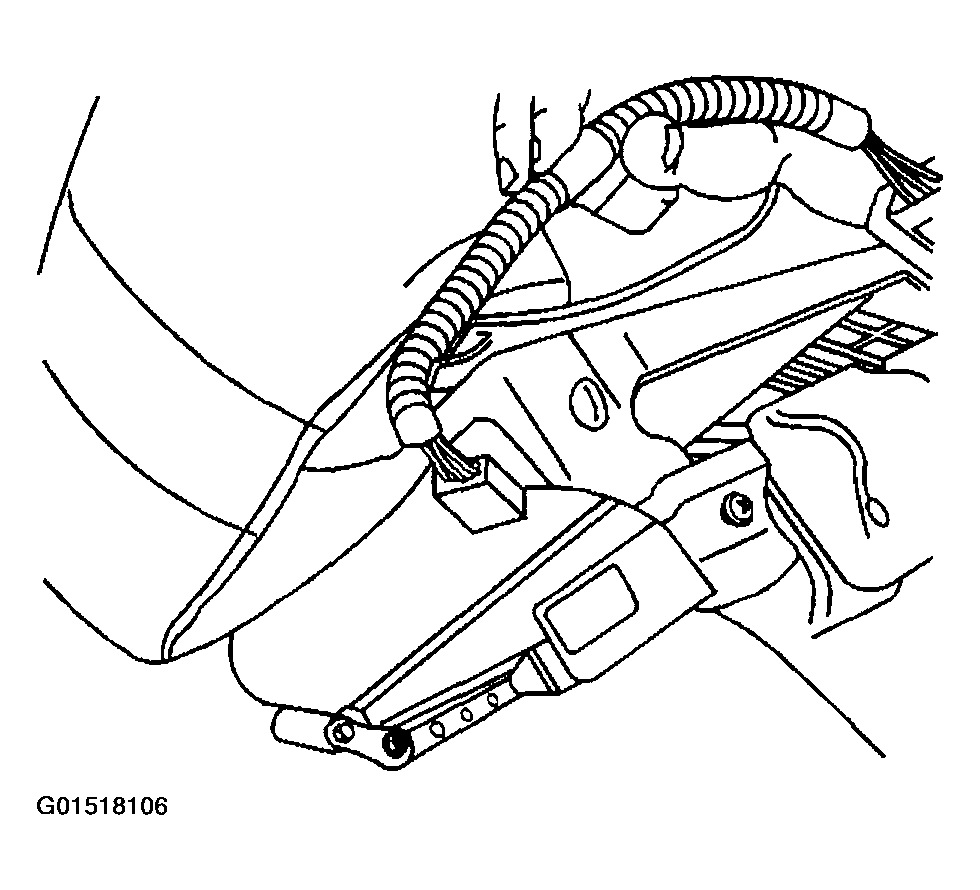

    Fig 3: Removing Power Seat Switch Harness From Front Seat Support
    G01518106Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector from the power seat switch.
  6. Remove the power seat switch.

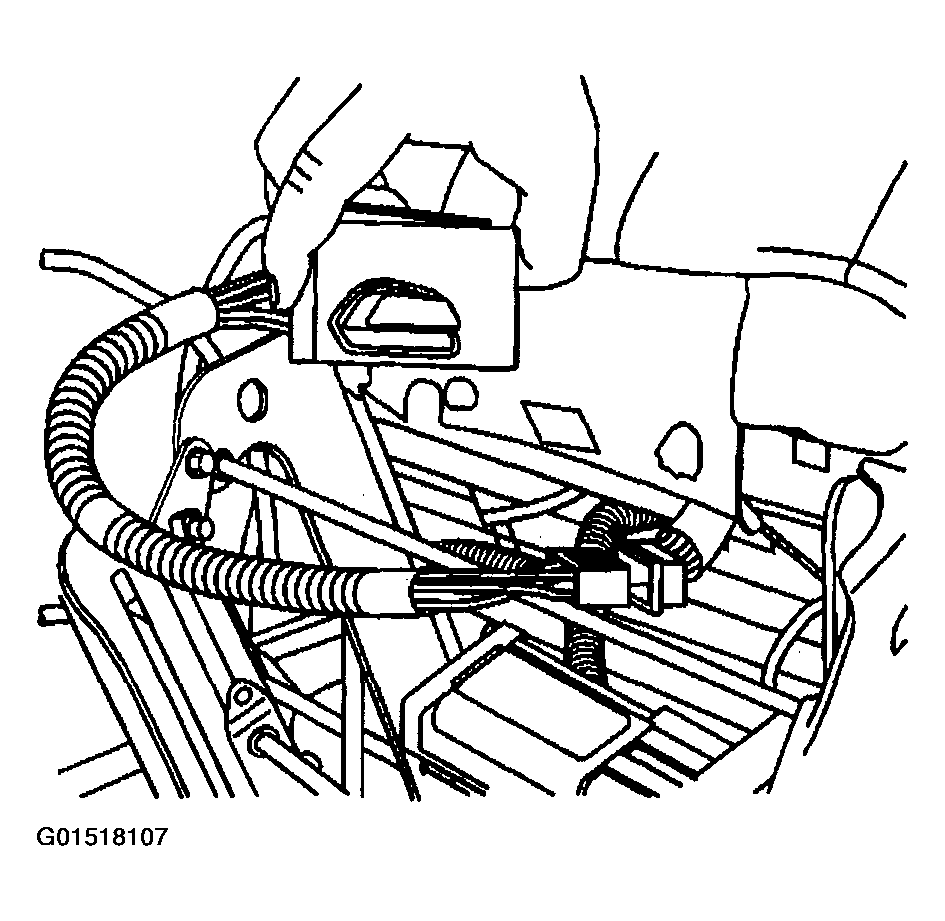

    Fig 4: Disconnecting Electrical Connector From Power Seat Switch
    G01518107Courtesy of GENERAL MOTORS CORP.
