Installation Procedure

  1. Connect the electrical connector to the power seat switch.

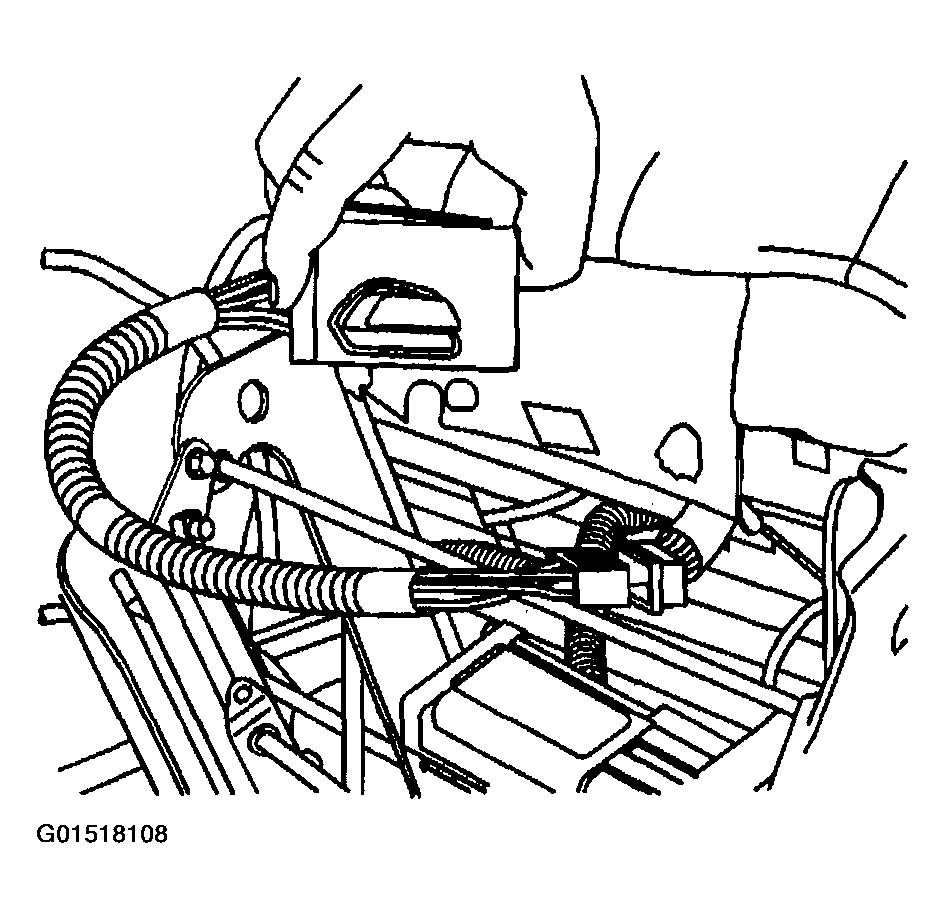

    Fig 1: Connecting Electrical Connector To Power Seat Switch
    G01518108Courtesy of GENERAL MOTORS CORP.
  2. Install the power seat switch to the outer trim panel, pressing the switch into place until fully seated.

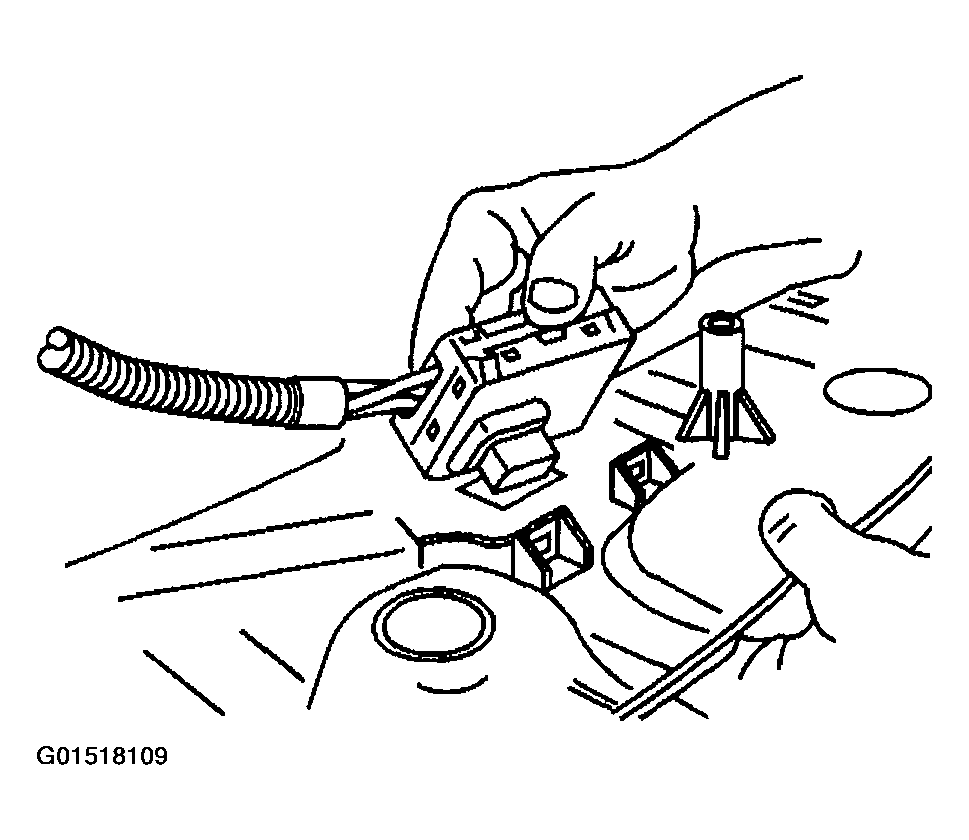

    Fig 2: Installing Power Seat Switch To Outer Trim Panel
    G01518109Courtesy of GENERAL MOTORS CORP.

    Important:  The power front seat switch harness must be in the proper position for the proper installation of the outer seat cushion trim panel.

  3. Connect the power seat switch harness to the front seat support.
  4. Install the outer trim panel to the front seat cushion. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT - FRONT SEAT  .

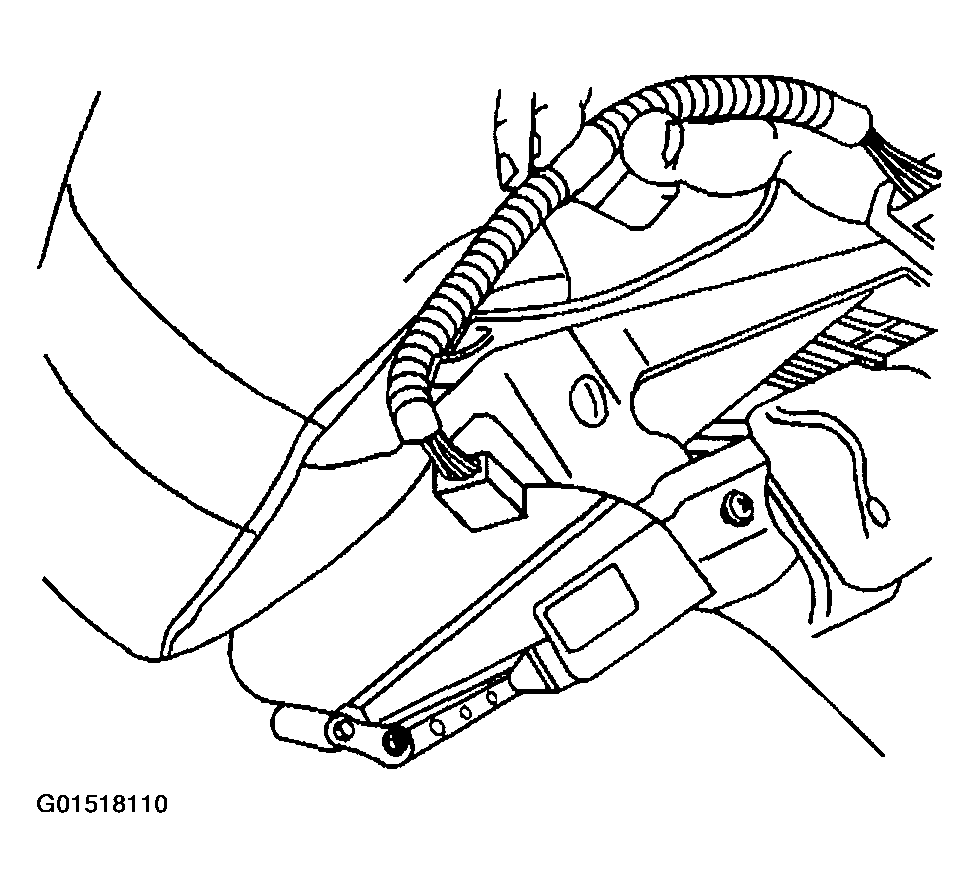

    Fig 3: Connecting Power Seat Switch Harness To Front Seat Support
    G01518110Courtesy of GENERAL MOTORS CORP.
