Installation Procedure

  1. Install the front seat to the studs on the floor pan.
  2. Connect the seat electrical connectors.
  3. Install the nuts to the seat floor pan studs.

    Tighten

    Tighten the front bucket seat adjuster-to-floor pan nuts to 50 N.m (37 lb ft).

    Inspect the front bucket seat for proper operation and adjustment.

  4. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

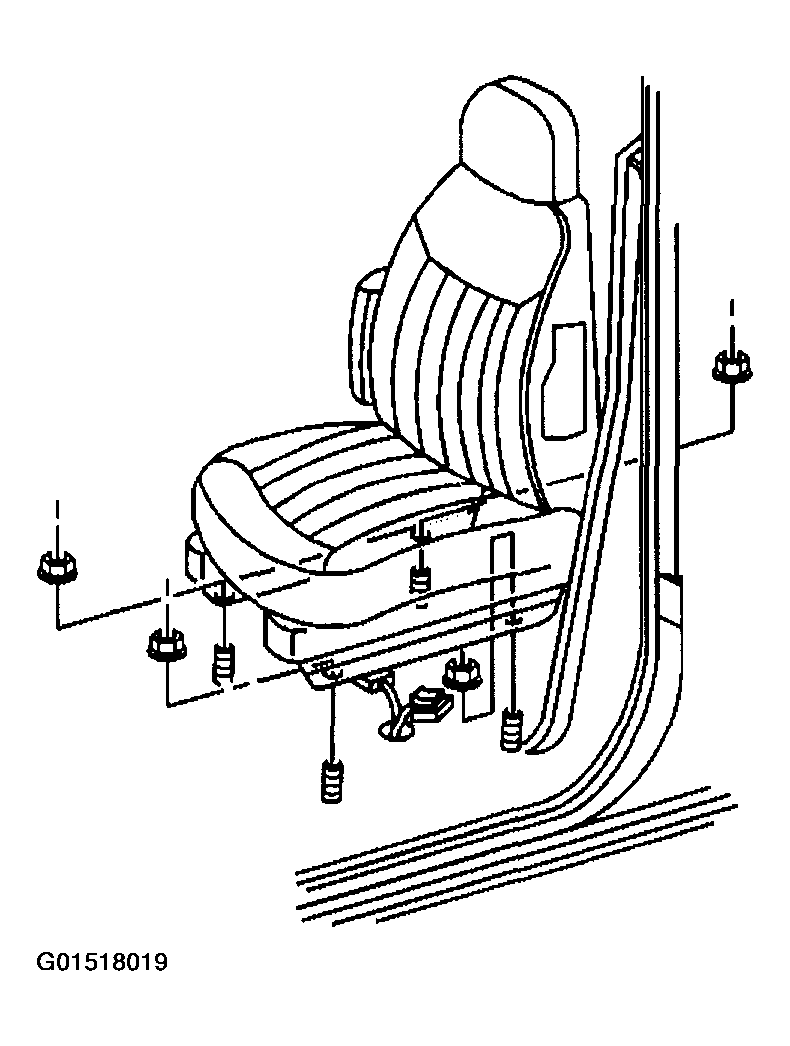

    Fig 1: Installing Front Seat Adjuster Nuts And Connecting Seat Electrical Connectors
    G01518019Courtesy of GENERAL MOTORS CORP.
