Installation Procedure

Important:  The splines on the lumbar support knob must be properly aligned to the lumbar control shaft for a proper fit.

  1. Install the knob to the lumbar control shaft.
  2. Install the lumbar support knob by pressing into place until fully seated

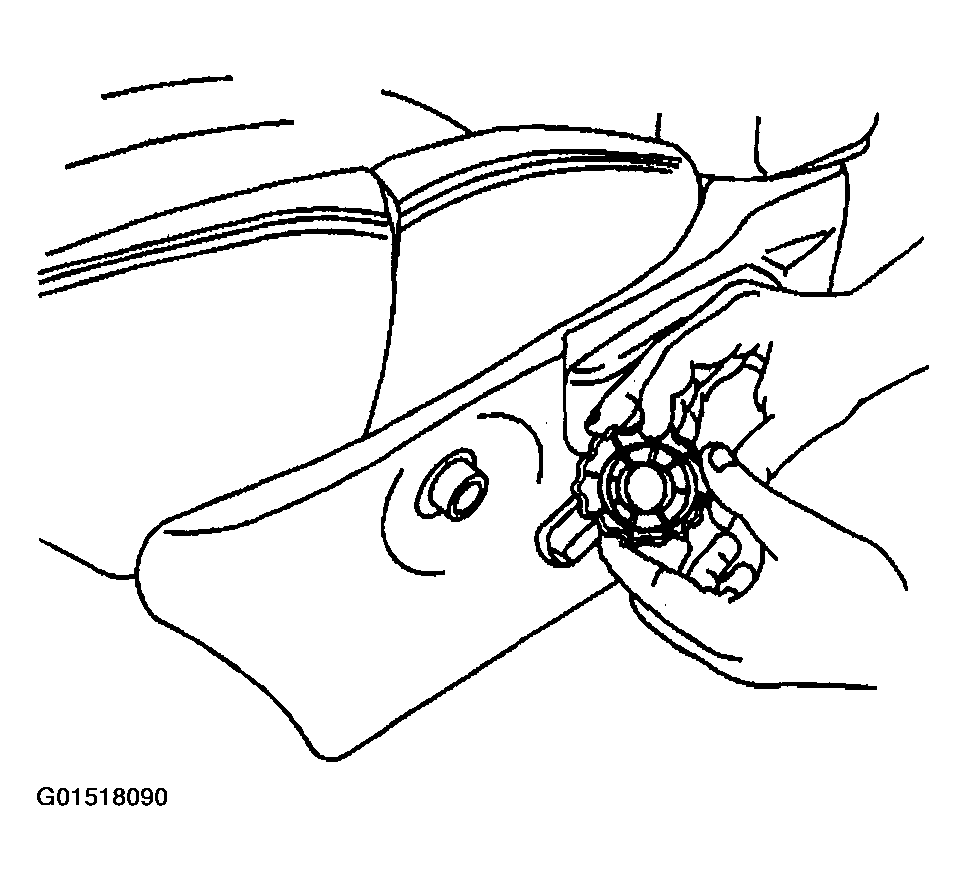

    Fig 1: Installing Lumbar Support Knob
    G01518090Courtesy of GENERAL MOTORS CORP.
