Installation Procedure

  1. Position the bolt into the mounting point of the armrest.

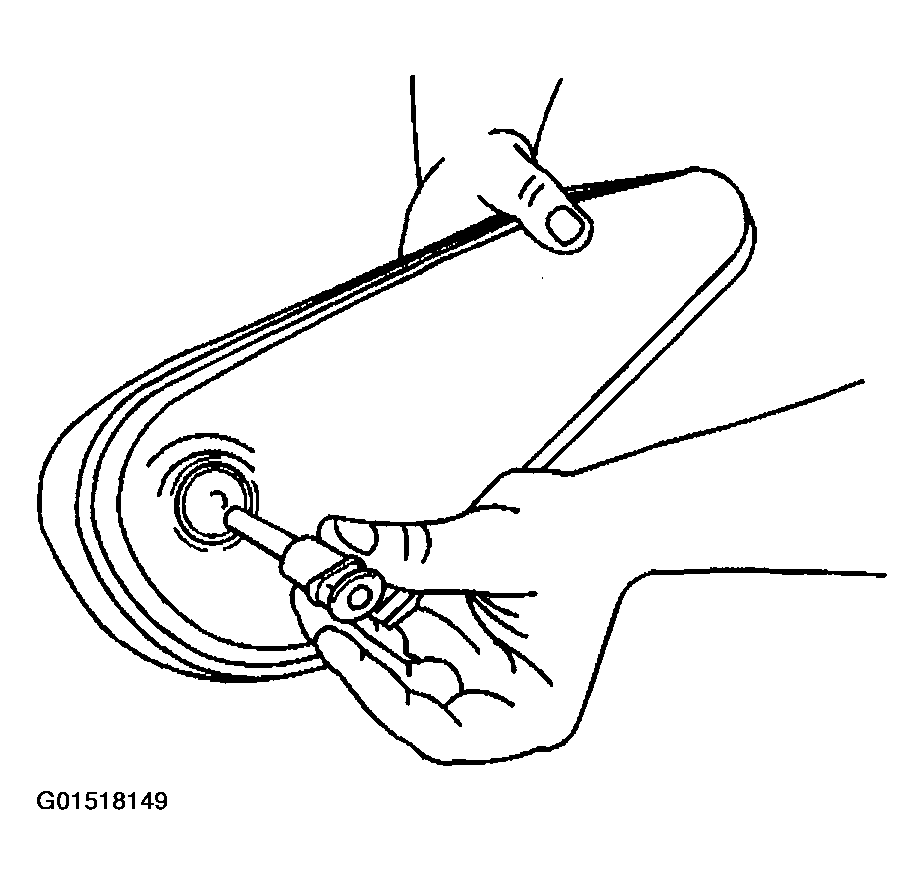

    Fig 1: Positioning Bolt Into Mounting Point Of Armrest
    G01518149Courtesy of GENERAL MOTORS CORP.
  2. Position the armrest to the front bucker seat.
  3. Tighten the armrest mounting bolt.

    Tighten

    Tighten the armrest mounting bolt to 4.5 N.m (40 lb in).

    Fig 2: Tightening Armrest Mounting Bolt
    G01518150Courtesy of GENERAL MOTORS CORP.

    Important:  Rotate the armrest bolt trim cap to a new position to allow the retainer on the cap to seat properly.

  4. install the armrest bolt trim cap pressing into place until fully seated.
  5. Inspect the armrest for proper movement.

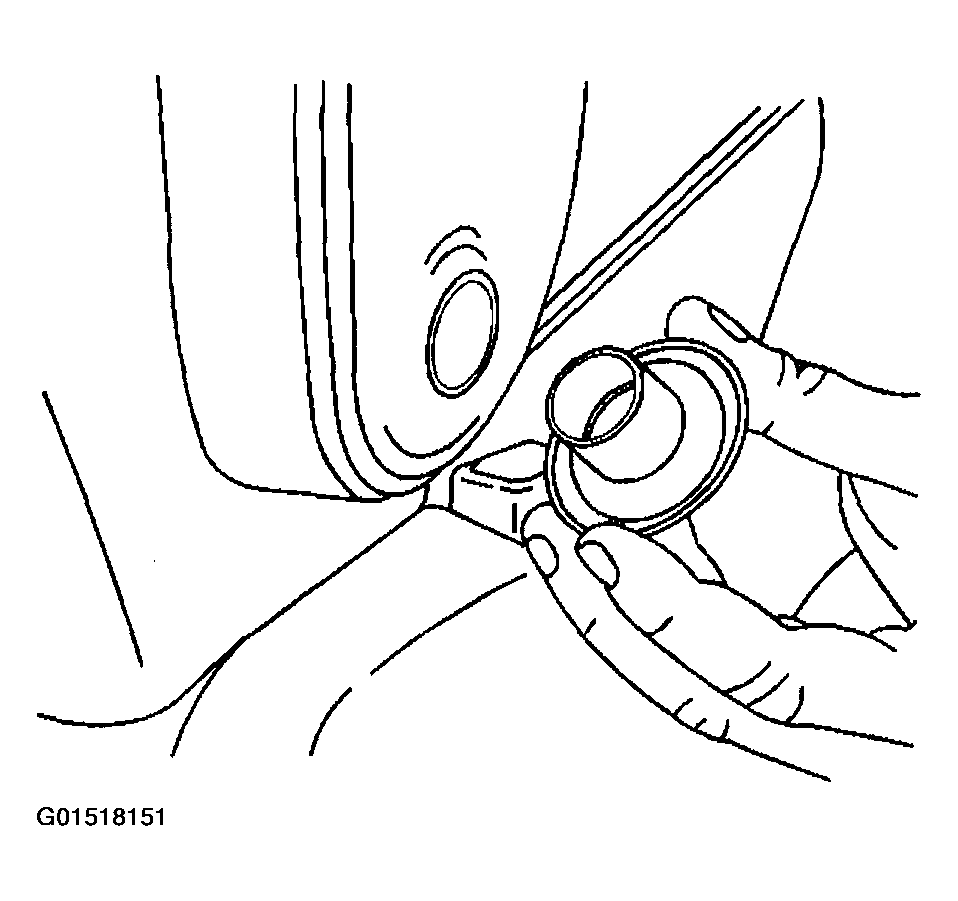

    Fig 3: Installing Armrest Bolt Trim Cap
    G01518151Courtesy of GENERAL MOTORS CORP.
