Schematic and Routing Diagrams

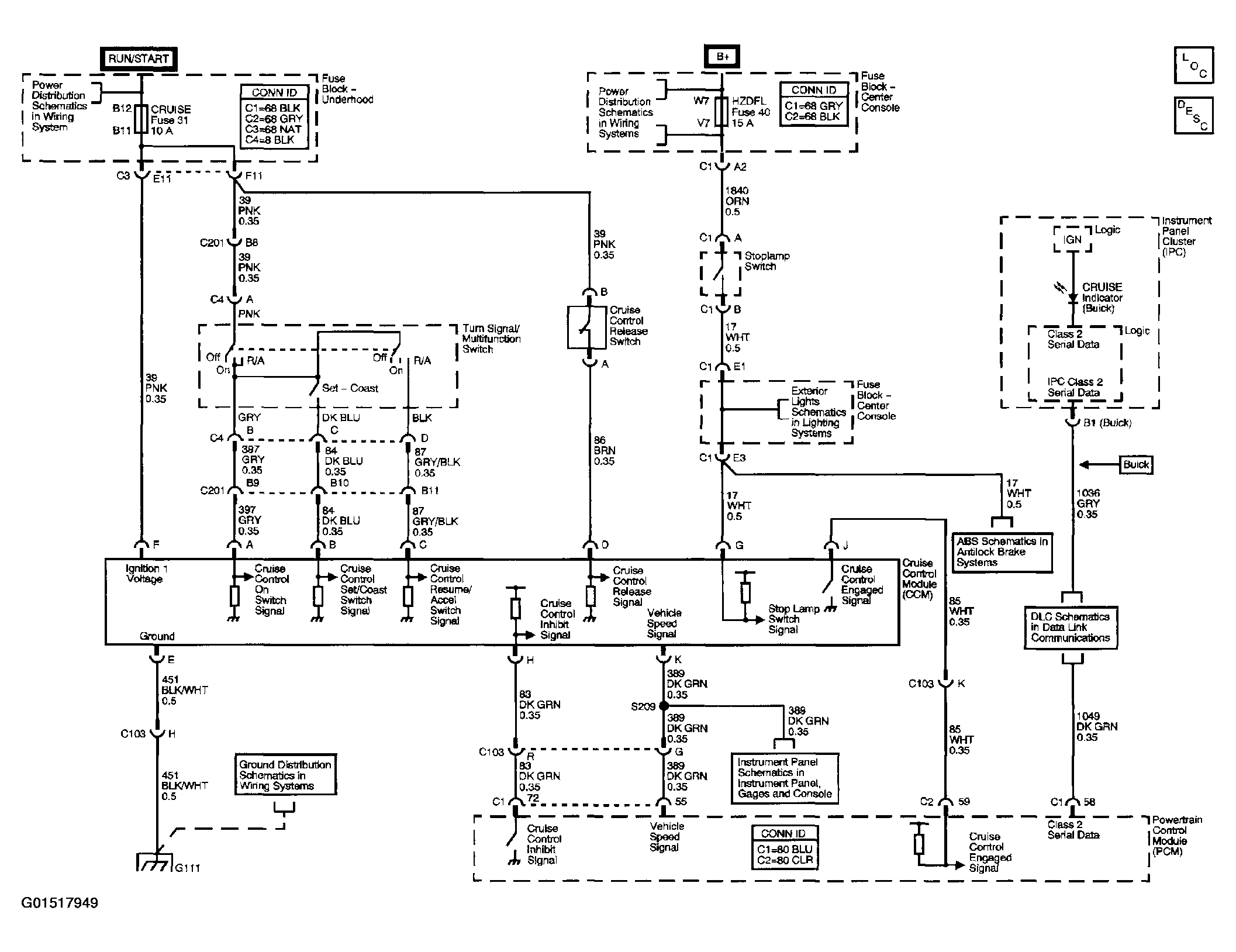

Fig 1: Cruise Control Schematics Diagram

G01517949

Courtesy of GENERAL MOTORS CORP.
