Removal Procedure

  1. Raise and support the vehicle.
  2. Release the vent hose clamp (1) from the extension housing assembly.
  3. Disconnect the vent hose (2) from the retaining bracket on the transfer case assembly.
  4. Remove the vent hose from the extension housing assembly vent tube by carefully twisting the hose.

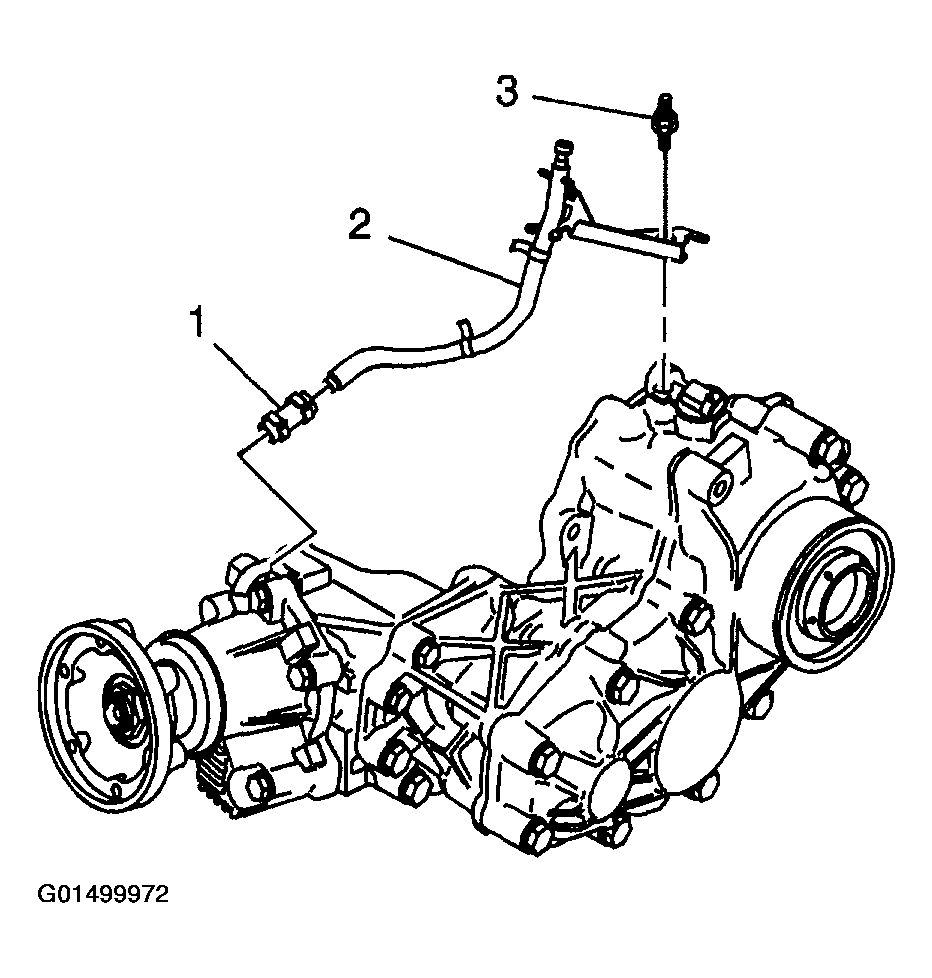

    Fig 1: Disconnecting Vent Hose From Retaining Bracket
    G01499972Courtesy of GENERAL MOTORS CORP.
