Installation Procedure

  1. Install the vent hose to the extension housing assembly vent tube.
  2. Connect the vent hose (2) to the retaining bracket on the transfer case assembly.
  3. Install the vent hose clamp (1) to the extension housing assembly.
  4. Lower the vehicle.

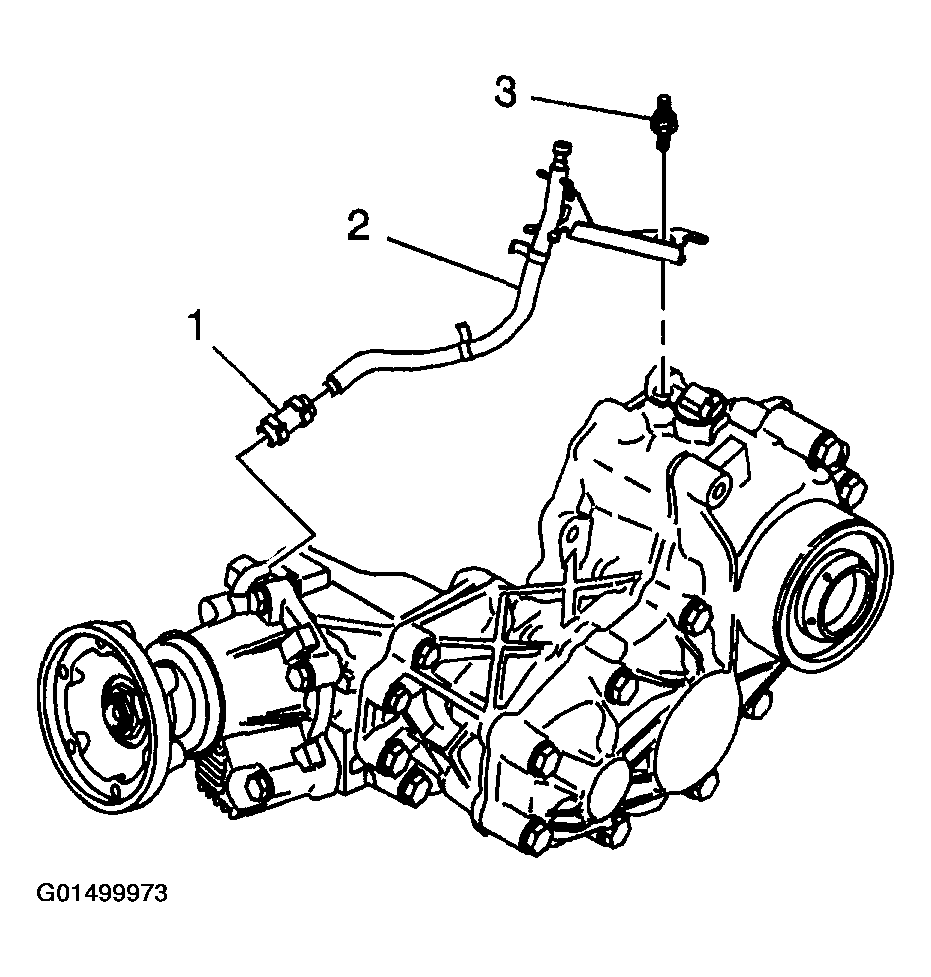

    Fig 1: Connecting Vent Hose Retaining Bracket
    G01499973Courtesy of GENERAL MOTORS CORP.
