Engine Mount Strut: Removal

  1. Remove the bolt and nut from the engine mount strut at the right engine mount strut bracket on the engine. See Fig 1 .
  2. Remove the bolt and the nut from the engine mount strut at the engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut. See Fig 2 .
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking

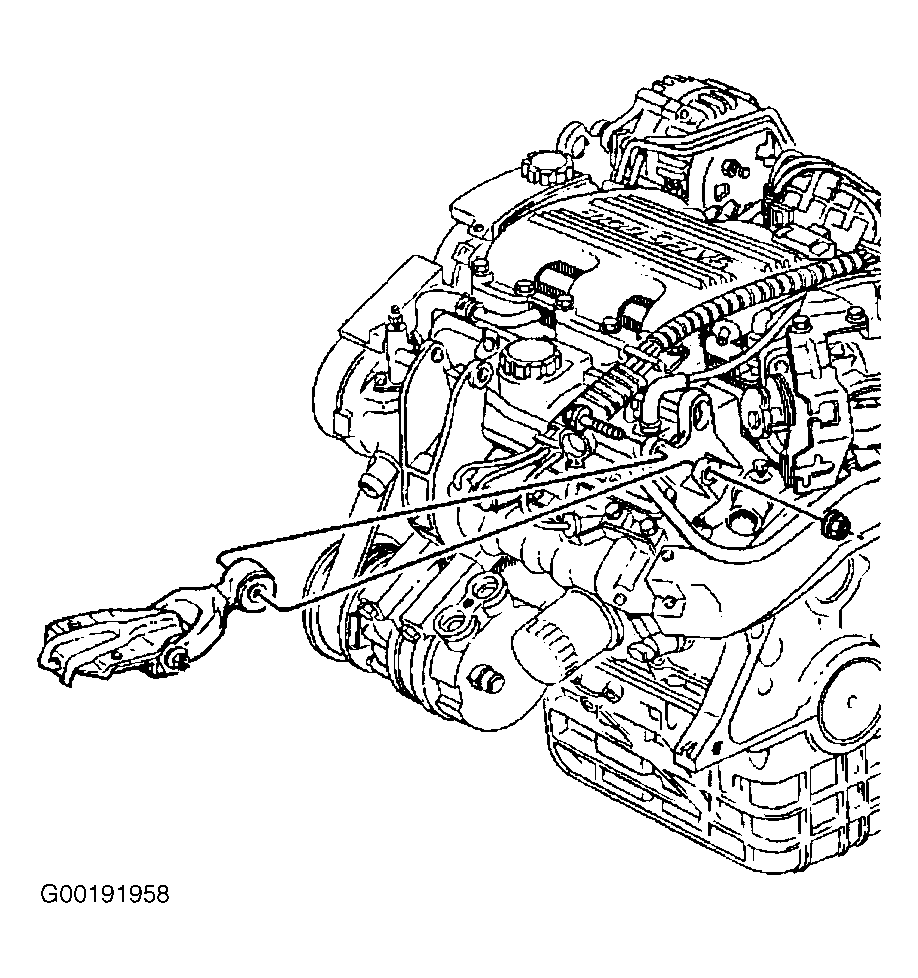

    Fig 1: Removing/Installing Engine Mount Strut At Right Engine Mount Strut Bracket
    G00191958Courtesy of GENERAL MOTORS CORP.
    Fig 2: Removing/Installing Engine Mount Strut
    G00191959Courtesy of GENERAL MOTORS CORP.
