Transmission Internal Mode Switch Logic

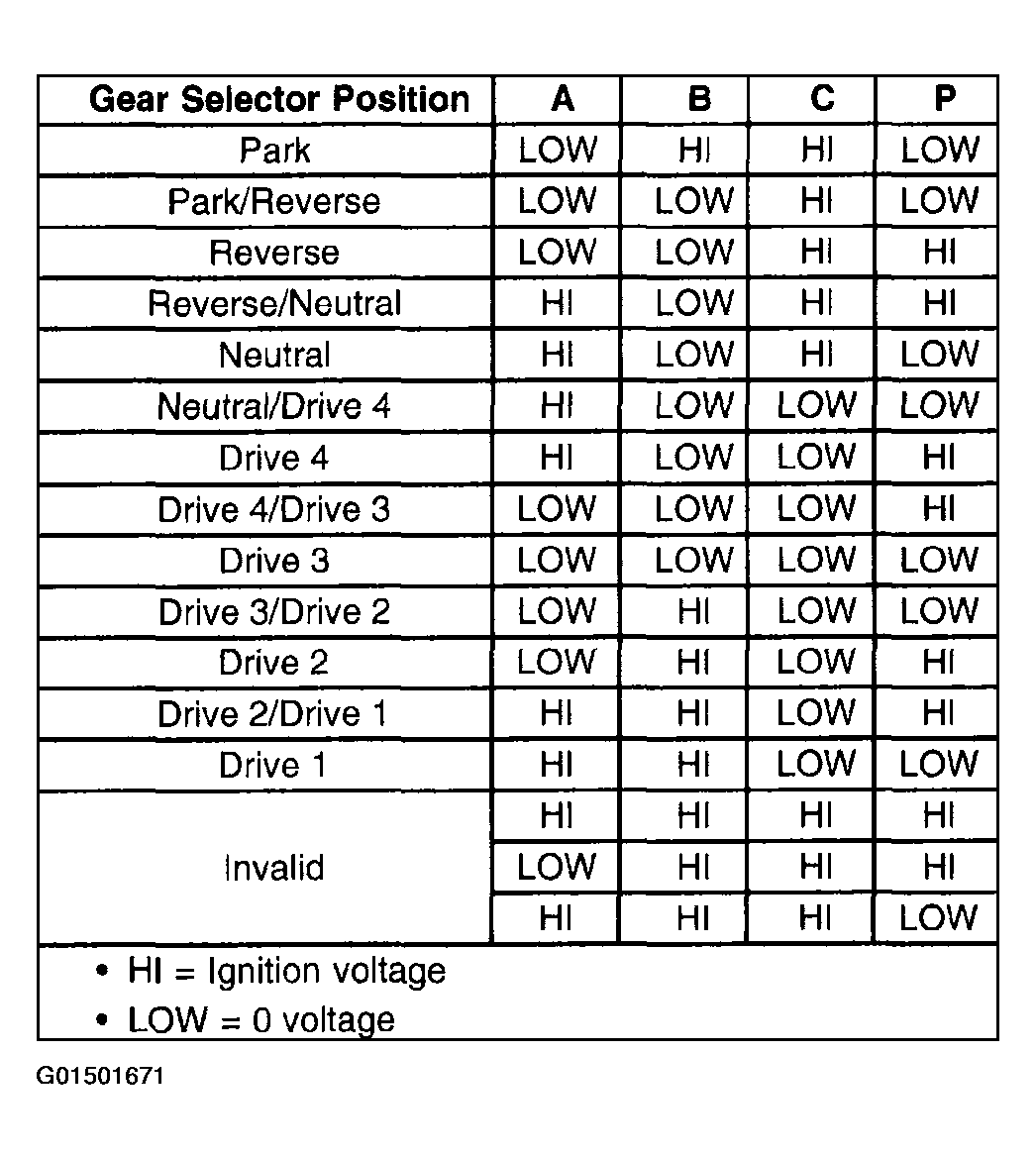

Fig 1: Transmission Internal Mode Switch Logic Table

G01501671

Courtesy of GENERAL MOTORS CORP.
