Installation Procedure

  1. Use a pry bar in order install the stabilizer shaft link insulators and the spacer.
  2. Install the stabilizer shaft link and insulators.
  3. Install the stabilizer shaft link bolt and nut.

    Tighten  Tighten the stabilizer shaft link nut to 23N.m(17lb ft).

  4. Lower the vehicle.

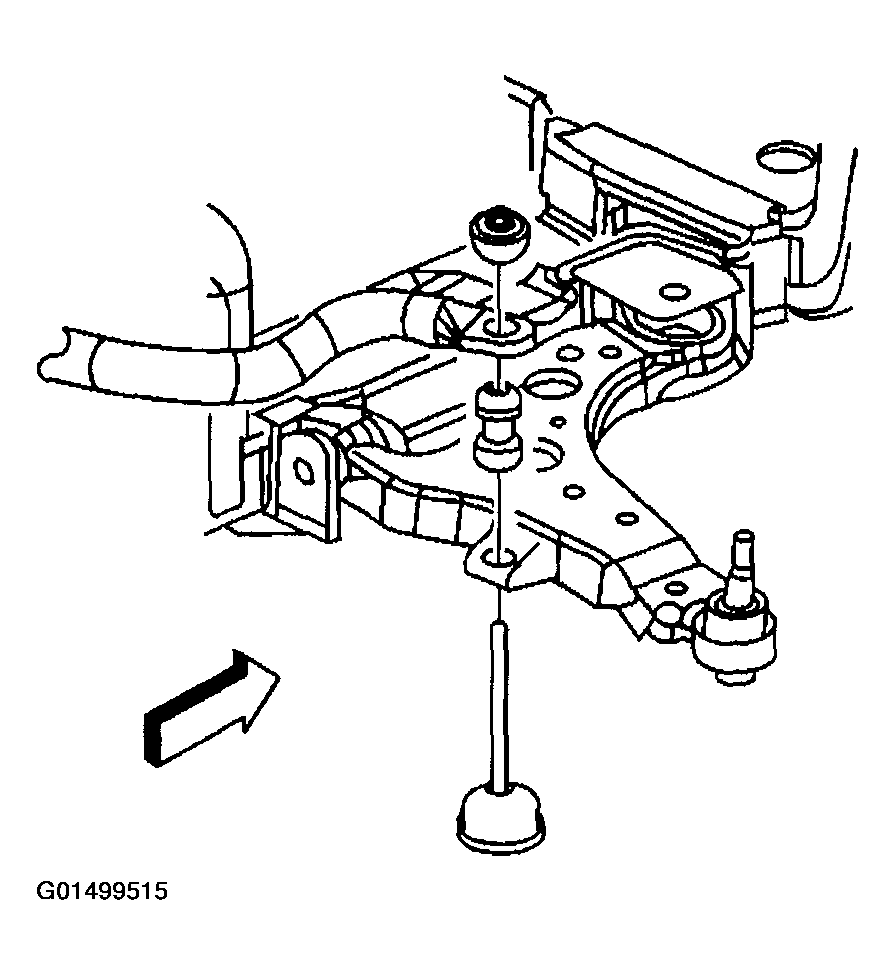

    Fig 1: Installing Stabilizer Shaft Link
    G01499515Courtesy of GENERAL MOTORS CORP.
