Installation Procedure

  1. Use a pry bar in order to install the stabilizer shaft insulator.

    Ensure that the stabilizer shaft insulator locating tabs (3) align with the indentations in the frame (2).

  2. Ensure that the stabilizer shaft insulator locating tabs (3) align with the indentations in the frame (2).
  3. Install the left and right side stabilizer shaft insulator brackets.
  4. Install the left and right side stabilizer shaft insulator bracket bolts.

    Tighten  Tighten the stabilizer shaft insulator bracket bolts to 48 N.m (35 lb in).

  5. Lower the vehicle.

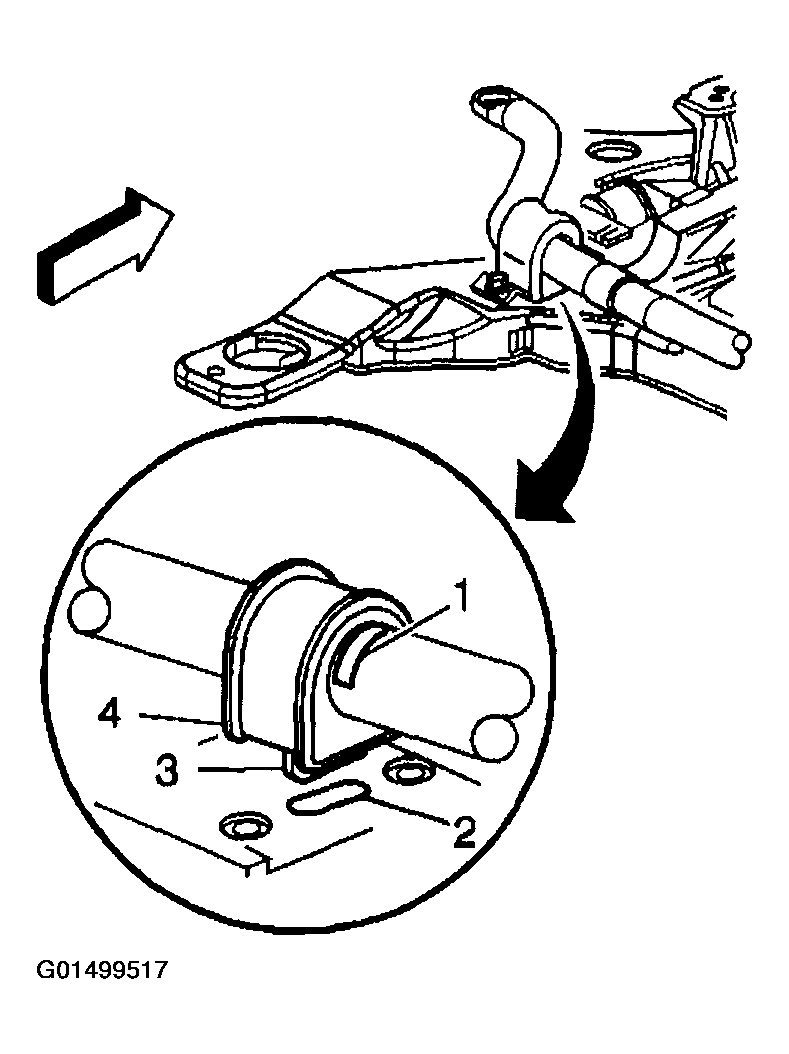

    Fig 1: Installing Stabilizer Shaft Insulator
    G01499517Courtesy of GENERAL MOTORS CORP.
