Removal Procedure

NOTE: The wheels of the vehicle must be straight ahead and the steering column in the LOCK position before disconnecting the steering column or intermediate shaft from the steering gear. Failure to do so will cause the SIR coil assembly to become uncentered, which may cause damage to the coil assembly.
  1. Remove the steering column. Refer to STEERING COLUMN REPLACEMENT  .
  2. Disconnect all the electrical connectors.
  3. Remove all the wire harness straps (2).
  4. Remove the wire harness from the steering column.

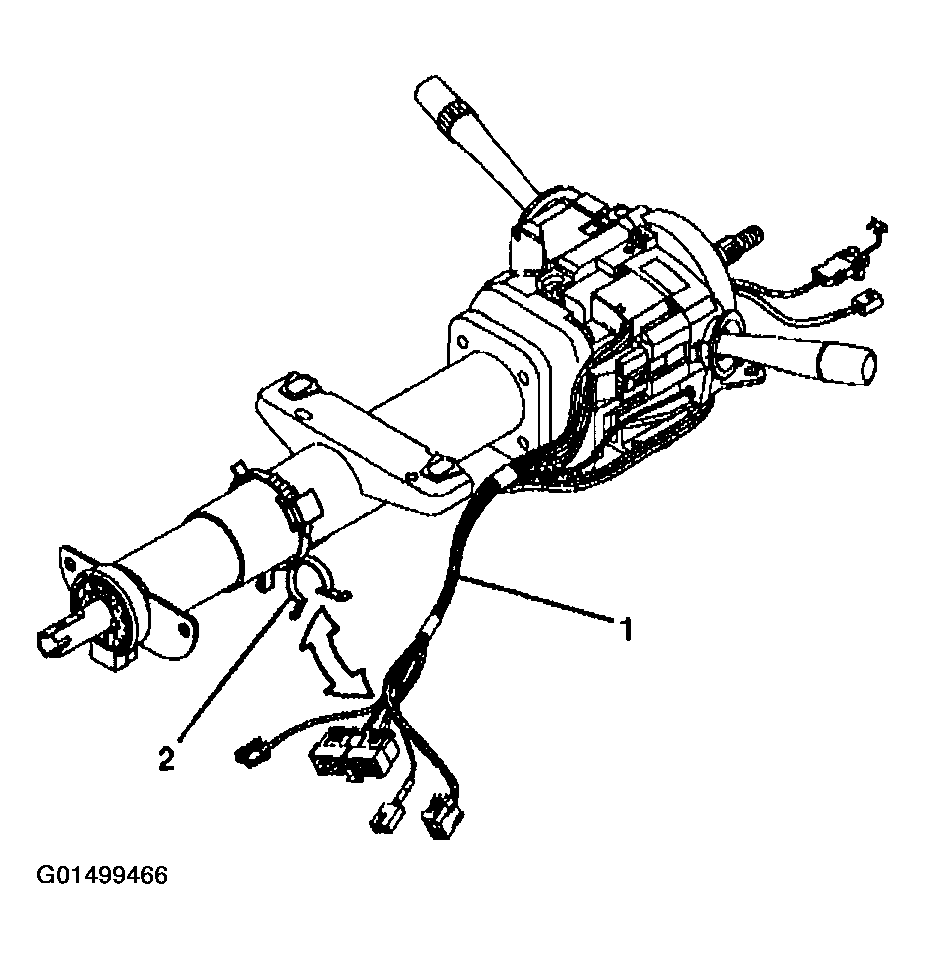

    Fig 1: Removing Wire Harness From Steering Column
    G01499466Courtesy of GENERAL MOTORS CORP.
