Removal Procedure
- Disable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM
.
- Remove the inflator module. Refer to SENSING & DIAGNOSTIC MODULE (SDM)
.
- Disconnect the steering wheel control electrical connector.
- Remove the steering wheel nut.

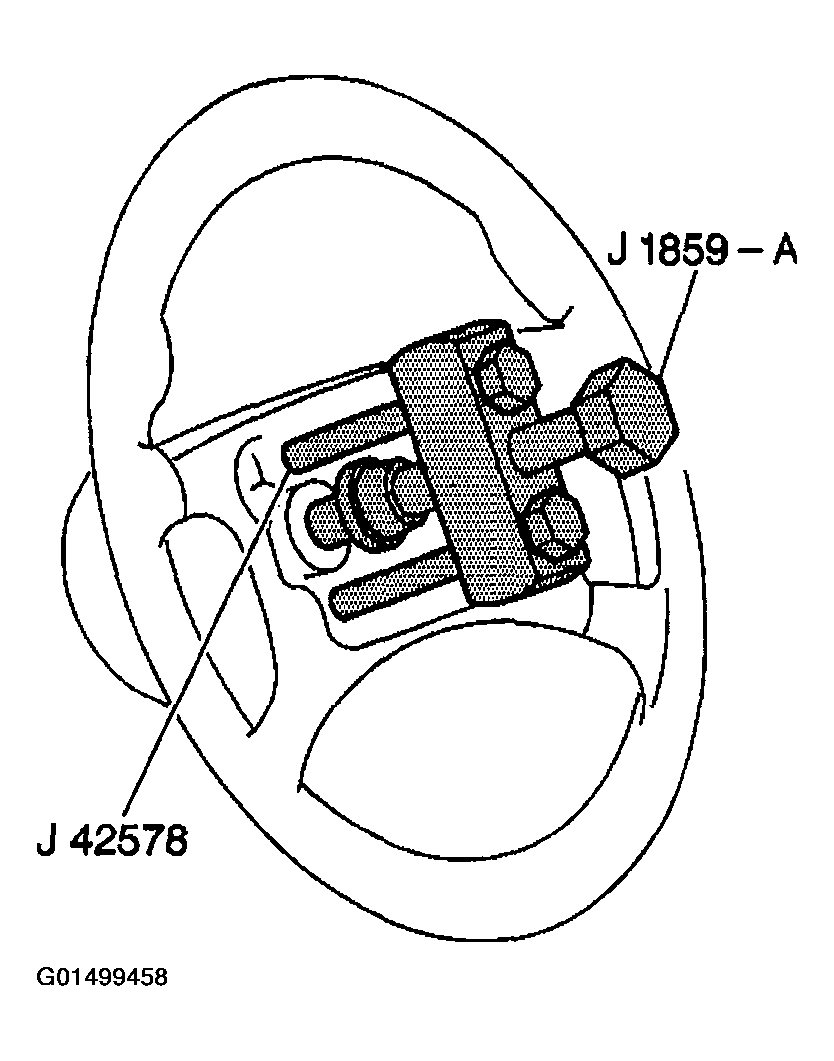

- Install J 42578
and J 1859-A
to the steering wheel.
Courtesy of GENERAL MOTORS CORP.
- Use J 42578
and J 1859-A
in order to remove the steering wheel.
- Remove J 42578
and J 1859-A
from the steering wheel.
- Remove the controls and the control harness from the steering wheel.
