Removal Procedure

  1. Position the sift lever boot out of the way (2).
  2. Remove the retaining screw (3) from the lever.
  3. Remove the lever (1).

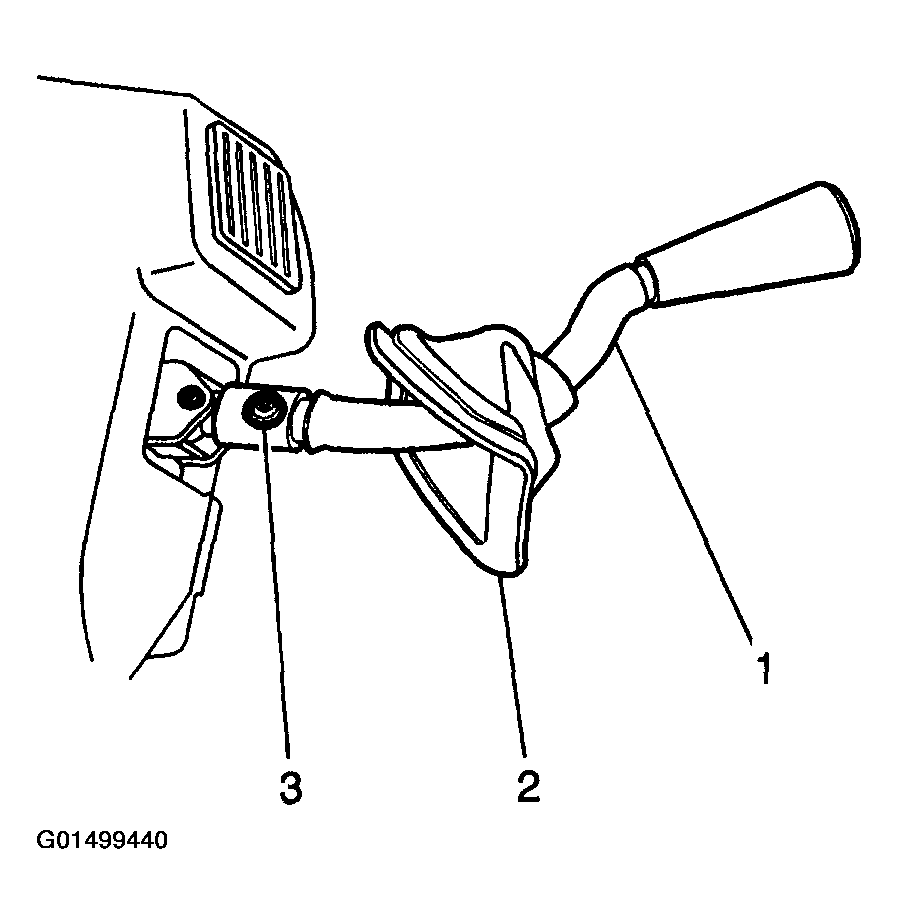

    Fig 1: Removing Shift Lever
    G01499440Courtesy of GENERAL MOTORS CORP.
