Removal Procedure

Disable the SIR System. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .

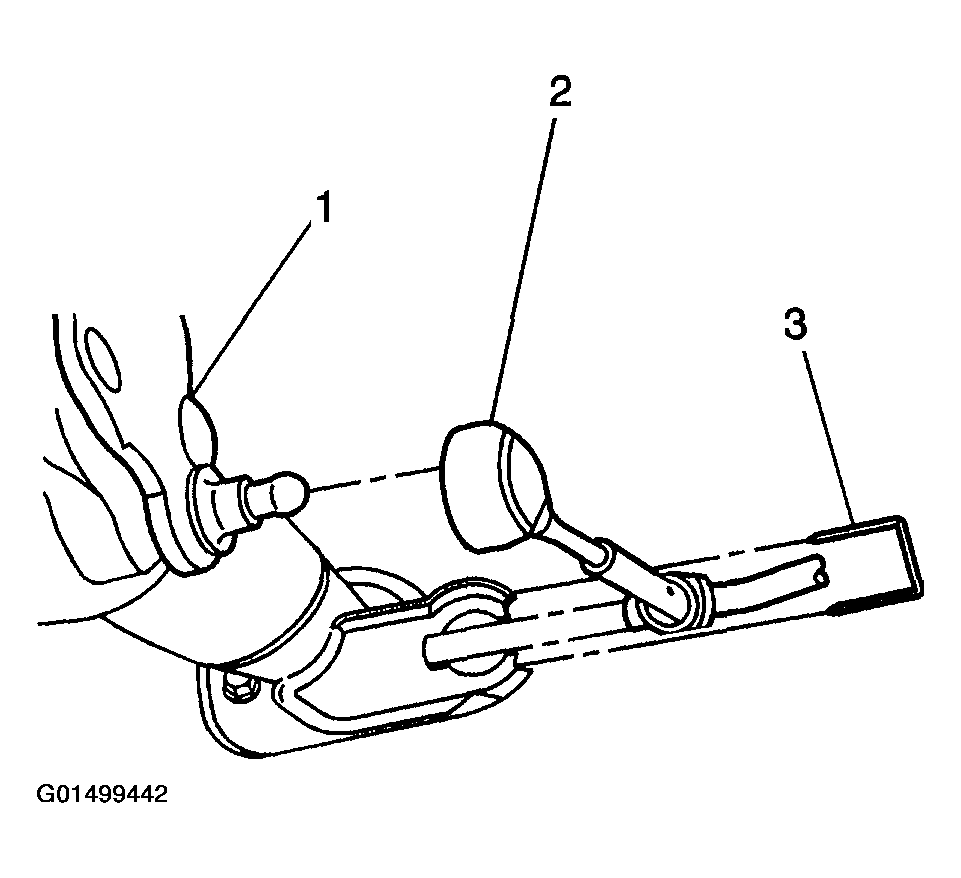

Remove the automatic transaxle selector cable retainer (3) and cable (2)from the steering column control lever (1).

Fig 1: Removing Automatic Transaxle Selector Cable
Courtesy of GENERAL MOTORS CORP.
Remove the shift lever. Refer to SHIFT LEVER REPLACEMENT .

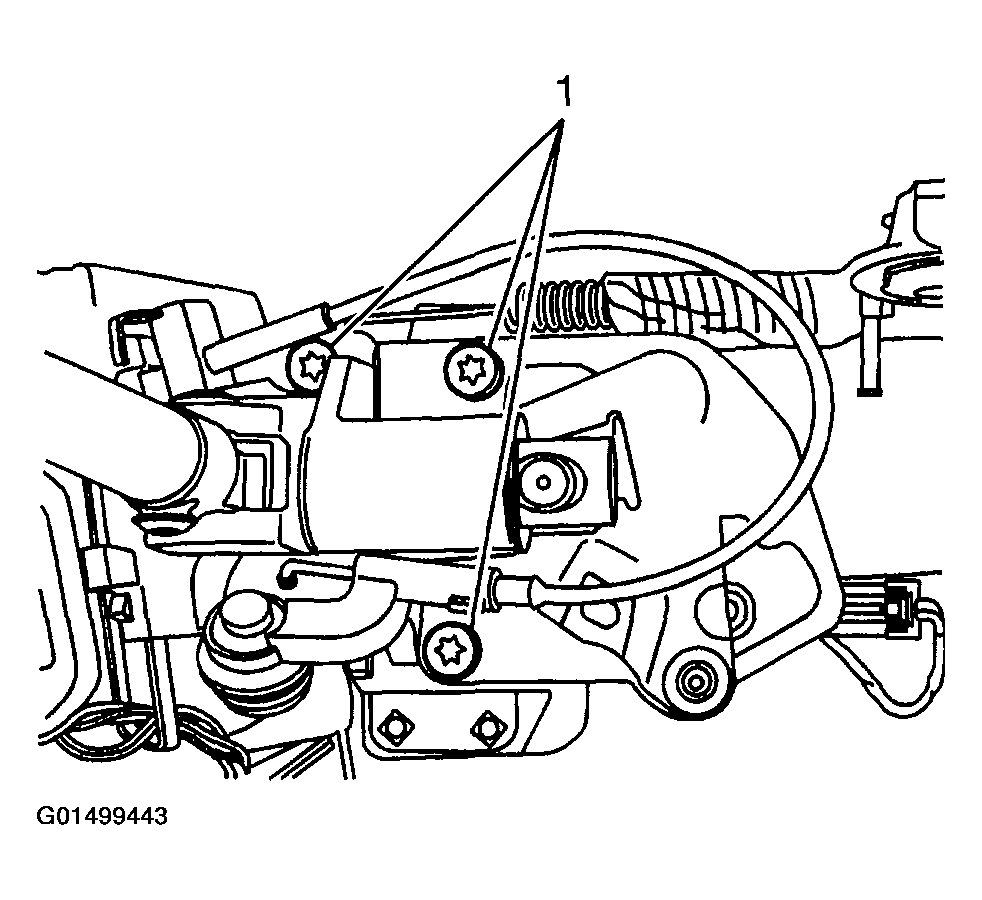

Remove the retaining screws (1) from the linear shift assembly.

Fig 2: Removing Retaining Screws From Linear Shift Assembly
Courtesy of GENERAL MOTORS CORP.

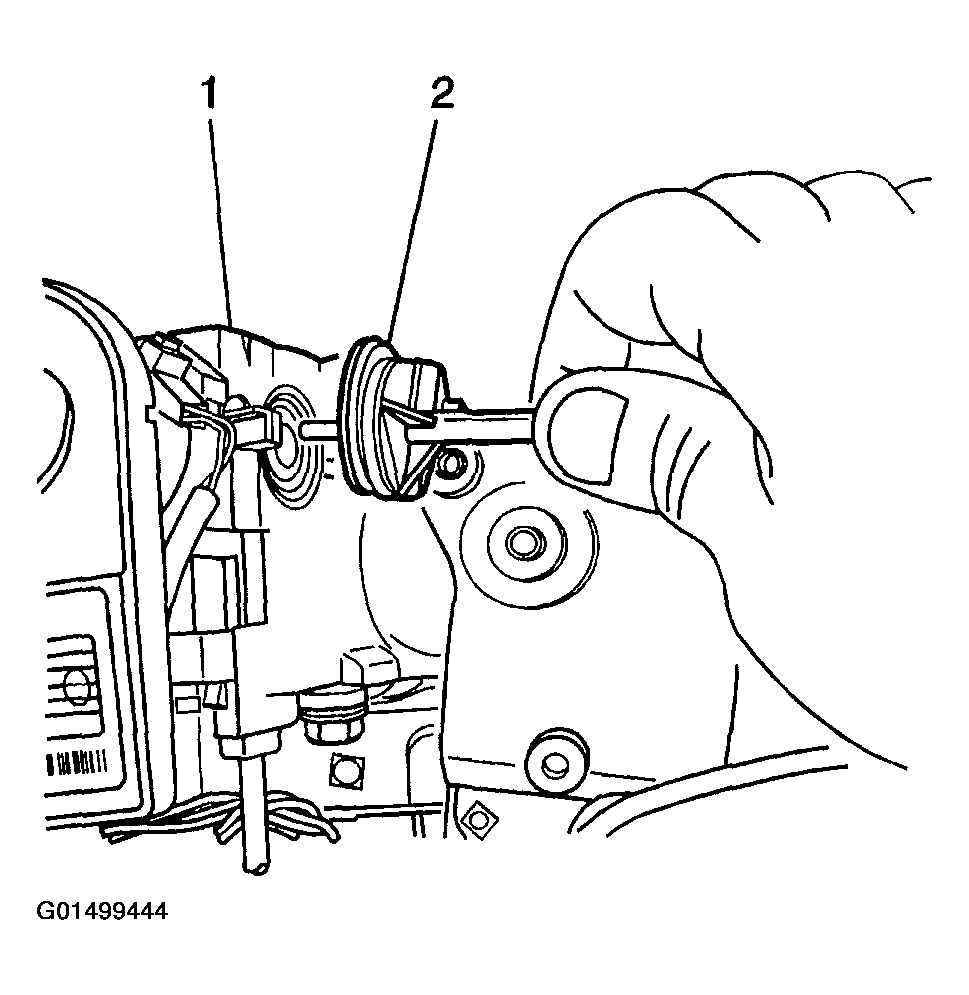

Twist the linear shift park lock cable to remove the cable (2) from the lock housing (1).

Fig 3: Twisting Linear Shift Park Lock Cable
Courtesy of GENERAL MOTORS CORP.

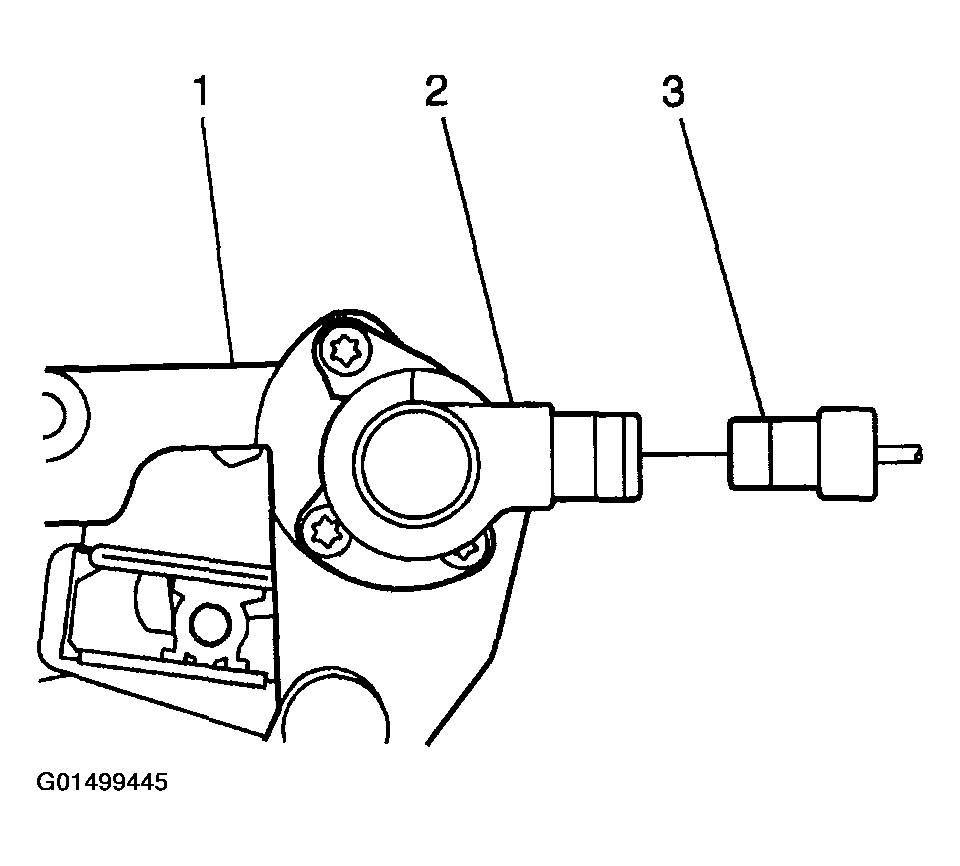

Remove the electrical connector (3).

Fig 4: Removing Electrical Connector
Courtesy of GENERAL MOTORS CORP.

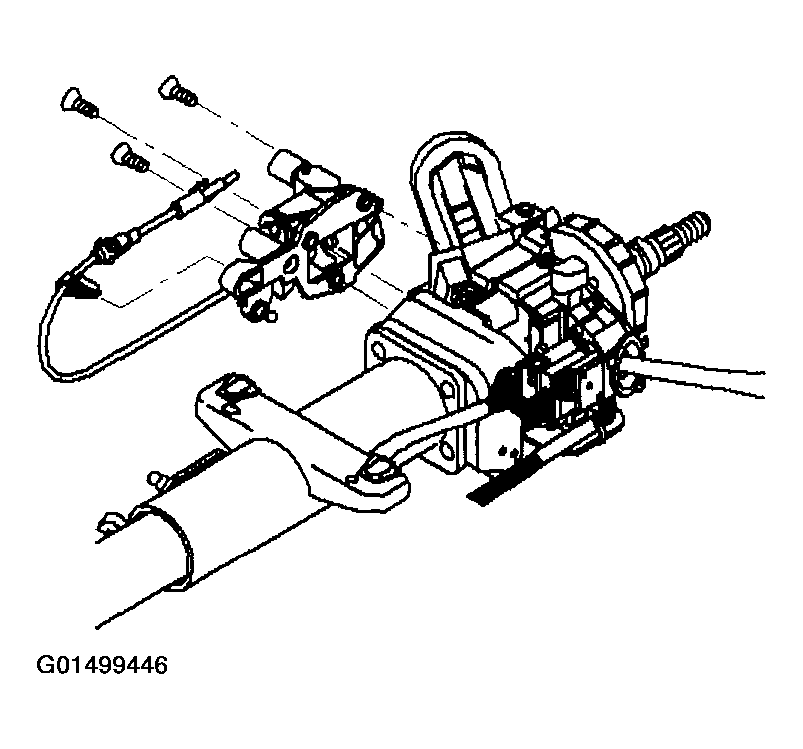

Remove the liner shift assembly.

Fig 5: Removing Liner Shift Assembly
Courtesy of GENERAL MOTORS CORP.
